Specifications
Brand Name :
KCO, Kocent Optec Limited
Model Number :
KCO-GJYWFJH-4.8-TPU
Certification :
ISO9001, RoHS
Place of Origin :
Guangdong, China
MOQ :
Negotiation
Price :
Negotiation
Payment Terms :
Western Union, T/T, L/C
Supply Ability :
10,000km/ month
Delivery Time :
3~5 days after get payment
Packaging Details :
wooden roll, wooden pallet
Material :
PVC, LSZH, TPU
Name :
Outdoor Field Fiber Optic Cable
Length :
2km~3km each roll
Application :
outdoor or customized
Fiber :
single mode, multimode, OM3, OM4, OM5
Cores :
4 cores to 24 cores
Description

2fiber 4core FTTA 4.8mm

Indoor Outdoor Field Army Military Fiber Optic Cable TPU LSZH Non-armored

Introduction:

- The cable is competed with outside jacket.

- Outside jacket material can be: PVC, LSZH, TPU, PE or as customer request.

- GJYWFJH Indoor Outdoor Field Army militaty fiber optic cable use as the optical transmission medium with 900um tight buffer fiber, a layer of aramid yarn is placed ourside the compact fiber to enhance the element.

- Cable fiber can be Single mode G652D, G657A1, G657A2, G657B3, or Multimode OM1, OM2, OM3, OM4 and OM5.

- Cable with small diamerter (4.8mm), light weight, sastify for field operation.

Application:
- FTTx ( FTTH, FTTB, FTTC, FTTA,...)

- Military communication system
- Passive optical networks (PON)
- Coal, oil, natural gas, geological exploration
- Broadcast television, temporary communication

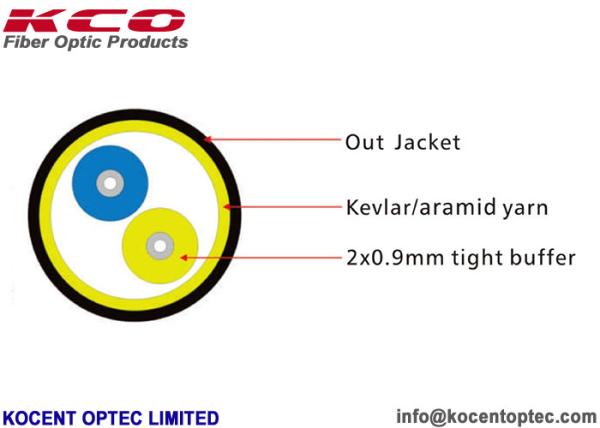

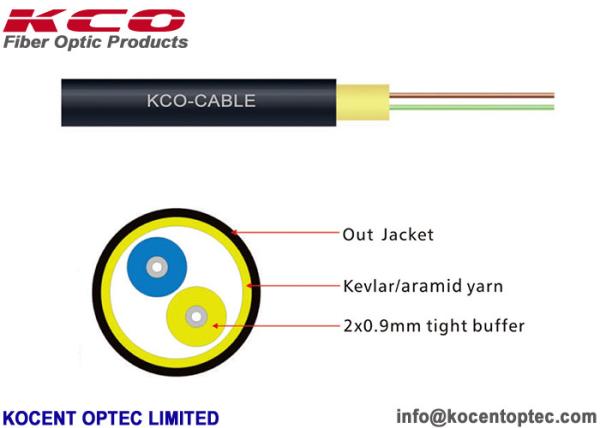

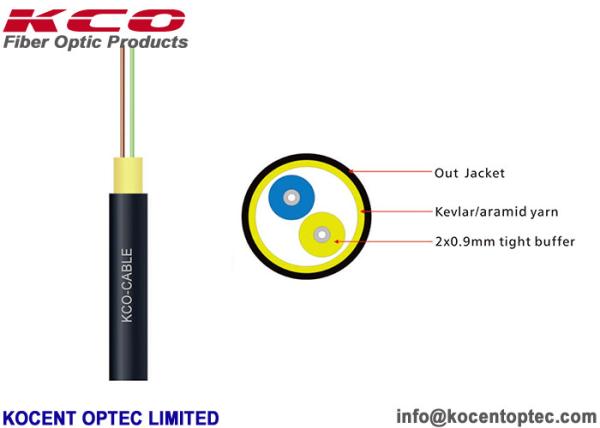

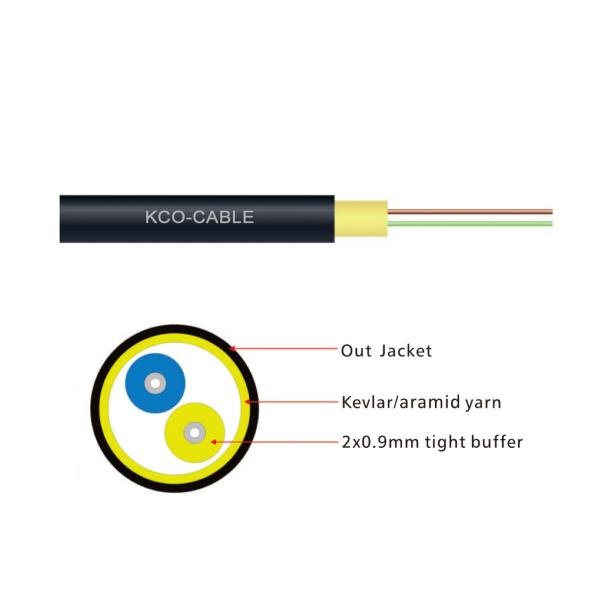

Cable Constructions:

2 Fiber 4 Core Optical Fiber Cable FTTA 4.8mm Indoor Outdoor Field TPU LSZH Non Armored

Features:

- High Hardness HYTREL tightly packaged fiber,can effectively protect the fiber from the external force damage,at the same time not abate fiber on micro vibration sensor sensitivity:
- Pieces of polyurethane elastomer sheath for cable provides a good structural stability and wear resistance,oil resistance,tear resistance,good elasticity,low temperature flexibility and so on performance:
- Mixer SZ stranding effectively enhance fiber tensile strength,suitable for repeated and applications

- Using flexible steel armour to protect optical fiber, making sure minimum damage
- Prevents damage from improper twisting, high resistance to crush and high tensile strength
- Mechanical protection against pest and rodent
- Rotating reel for deploying and retracting of cable and comes with braking system

Storage/Operating Temperature: -40°C to + 70°C

Standards: Comply with standard YD/T1258.2-2003 and IEC 60794-2-10/11

Optical Fiber Parameter
Fiber Type Single mode G652D,G657, G655, Multimode OM1, OM2, OM3, OM4, OM5
Cable Diameter 4.8±0.2mm
Cladding Diameter 125 ± 1μm
Cladding Non-Circularity ≤ 1%
Coating Diameter 245 ± 10μm
Attenuation Coefficient

≤ 0.36dB/km at 1310nm,

≤ 0.22dB/km at 1550nm
Chromatic Dispersion

≤3.5ps/nm/km at 1285~1330nm,

≤18ps/nm/km at 1550nm
Zero Dispersion Wavelength 1300~1322nm
PMD Coefficient ≤ 0.2ps/√km
Weight 28kg/km

OEM/ODM Service:

If you want to display your own brand LOGO on the goods such as cable, package bag, label or any where. It is no any problem. Our OEM and ODM service is always ready to do it.

2 Fiber 4 Core Optical Fiber Cable FTTA 4.8mm Indoor Outdoor Field TPU LSZH Non Armored

Packing:

According to Stardard Export Packing.

Carton box, wooden box, wooden pallet.

2 Fiber 4 Core Optical Fiber Cable FTTA 4.8mm Indoor Outdoor Field TPU LSZH Non Armored

Shipping:

- International express such as UPS, TNT, DHL, etc

- Internatioal air: CA, AA, EA, etc

- By sea

2 Fiber 4 Core Optical Fiber Cable FTTA 4.8mm Indoor Outdoor Field TPU LSZH Non Armored
