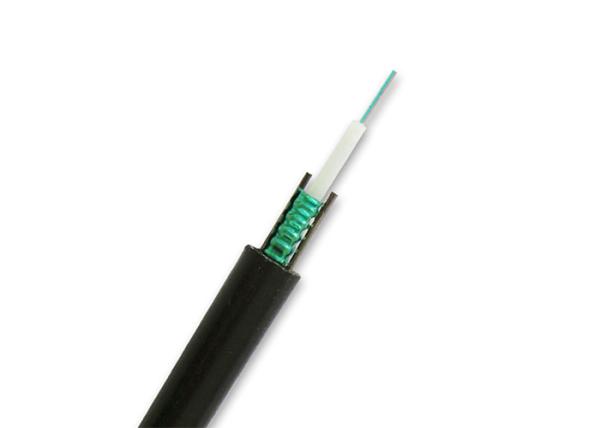

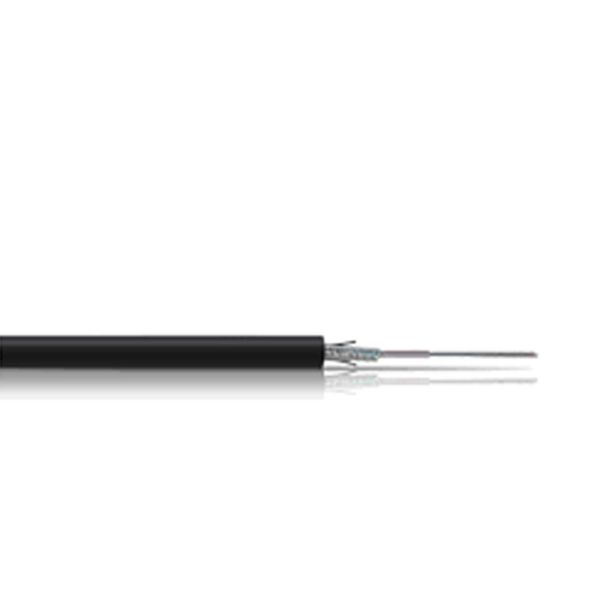

Singlemode Backbone 24 Core Aerial Outdoor Fiber Optic Cable
Singlemode Backbone 24 Core Aerial Outdoor Fiber Optic Cable
Singlemode Backbone 24 Core Aerial Outdoor Fiber Optic Cable
Singlemode Backbone 24 Core Aerial Outdoor Fiber Optic Cable
Specifications
Brand Name :
SINOHONE
Model Number :
GYXTW
Certification :
RoHS ISO9001 CPR FCC CE
Place of Origin :
Sichuan, China
MOQ :
2000 meters
Price :
USD $0.38~$0.58 / meter
Payment Terms :
L/C, D/P, T/T, D/A, Western Union, MoneyGram
Supply Ability :
500000 meters per month
Delivery Time :
5-8 work days
Packaging Details :
2km per reel in wooden drum
Product Name :
Outdoor Fiber Optic Cable
Structure :
Unitube
Tube :
PBT
Outer Sheath :
PE, HDPE, MDPE
Application :
Duct, aerial
Operating temperature :
Operating temperature: -40°C~+70°C
Amoring :
Armored Steel Tape
Strength Member :
Steel Wire
Wire :
PSP
Description

Singlemode Backbone 2-24 Core Aerial Outdoor Fiber Optic Cable

Description:

Sinohone GYTXW fiber optic cable complies with stanard YD/T 769-2003. It has good mechanical and temperature performance,

high strength loose tube that is hydrolysis resistant. Special tube filling compound ensures a critical pretection of fiber, crush resistance and flexibility. PSP enhancing moisture-proof. 2 parallel steel wires endure tensile strength. Small diameter, light weight and friendly installation

long delivery length.

Construction:

Colored fiber Coated outside diameter:

  • 125.0±0.1um
  • Optical fiber diameter:242±7um
  • UV color fiber: Standard chromatogram
  • -Blue,Orange,Green,Brown,Gray/Slate,White,Red,Black,Yellow,Violet,Rose/Pink,Aqua

Tube filling compound(Gel)

PBT loose tube

Steel wire

Water-blocking tape

Steel Polyethylene Laminate

Recognition guide

Black PE out jacket

Outside diameter: 8.7-9.0mm

Technical Parameters

G.652 G.655 50/125μm 62.5/125μm

Attenuation

(+20℃)

 @850nm ≤3.0 dB/km ≤3.0 dB/km
@1300nm ≤1.0 dB/km ≤1.0 dB/km
@1310nm ≤0.36 dB/km ≤0.40 dB/km
@1550nm ≤0.22 dB/km ≤0.23dB/km
Bandwidth (Class A) @850nm ≥500 MHz·km ≥200 MHz·km
@1300nm ≥1000 MHz·km ≥600 MHz·km
Numerical Aperture 0.200±0.015NA 0.275±0.015NA
Cable Cut-off Wavelength λcc ≤1260nm ≤1480nm

Cable Type Fiber Count

Cable Diameter

mm

 Cable Weight kg/km

Tensile Strength

Long/Short Term N

Crush Resistance

Long/Short Term

N/100mm

Bending Radius

Static
/Dynamic

mm
GYXS/GYXTW-2~12 2~12 10.0 105 600/1500 300/1000 10D/20D
GYXS/GY XTW-2~12 2~12 10.6 124 1000/3000 1000/3000 10D/20D
GYXS/GY XTW-14~24 14~24 12.5 149 1000/3000 1000/3000 10D/20D
GYXS/GY XTW-26~36 26~36 14.0 190 1000/3000 1000/3000 10D/20D
GYXS/GY XTW-38~48 38~48 15.0 216 1000/3000 1000/3000 10D/20D

Note:

  1. No damage on the surface; no trachoma.
  2. Wooden tray packaging; wood whole seal packaging
  3. Segment length: no less than 1000M. The segment length of each tray of the same batch shall be similar as much as possible. Other lengths can be agreed upon through consultation.
  4. Report certificate: It includes optical cable inspection number, optical cable type, core number, optical fiber type, length, etc
