FTTH Backbone GYXTW Bulk Outdoor Fiber Optic Cable
FTTH Backbone GYXTW Bulk Outdoor Fiber Optic Cable
FTTH Backbone GYXTW Bulk Outdoor Fiber Optic Cable
FTTH Backbone GYXTW Bulk Outdoor Fiber Optic Cable
Specifications
Brand Name :
SINOHONE
Model Number :
GYXTW
Certification :
RoHS ISO9001 CPR FCC CE
Place of Origin :
Sichuan, China
MOQ :
2000 meters
Price :
USD $0.38~$0.58 / meter
Payment Terms :
L/C, D/P, T/T, D/A, Western Union, MoneyGram
Supply Ability :
500000 meters per month
Delivery Time :
5-8 work days
Packaging Details :
2km per reel in wooden drum
Product Name :
Outdoor Optical Cable
Structure :
GYXTW
Tube :
Unitube
Outer Sheath :
PE, HDPE, MDPE
Application :
Duct, aerial
Core :
2-24 core
Amoring :
Steel Tape
Strength Member :
Parallel Steel Wire
Color :
Black
Description

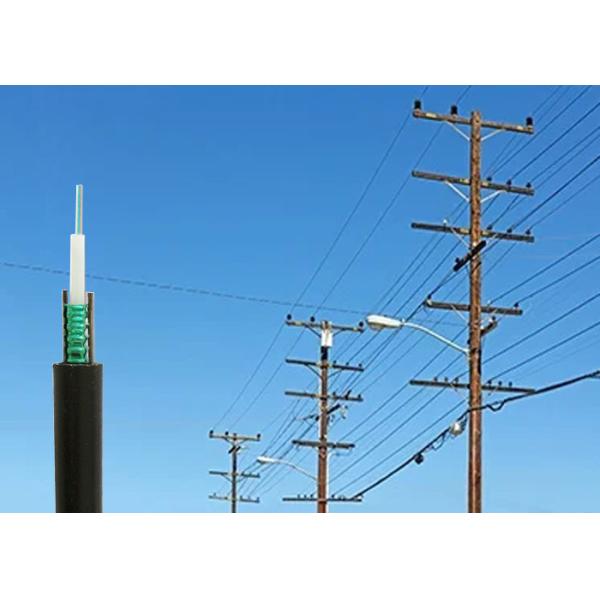

FTTH Backbone GYXTW Outdoor Fiber Optic Cable

Description:

Sinohone GYTXW fiber optic cable is an outdoor use optical fiber cable suitable for duct and aerial applications. We supply GYXTW from 2 fiber cores to 24 fiber cores. Both single mode type and multimode types are available.

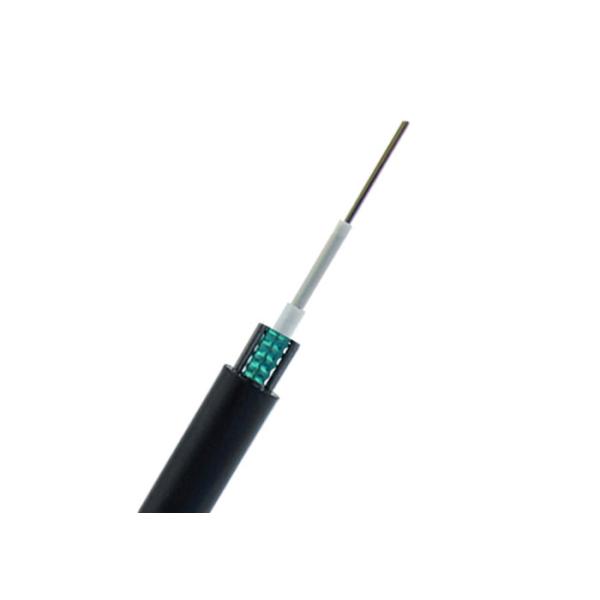

Fiber optic cable GYXTW, 2~12 fibers, jelly filled and fiber contained central loose tube, copolymer coated steel tape, two parallel steel wires 1.2mm, PE outer sheath, G652D SM fiber, detailed specification on your request.

Applications


These central loose tube optical fiber ribbon cables are suitable for installation in aerial or duct environment for communication between

  • bureaus
  • metropolitan network
  • access network
  • especially suitable for the situation where high-density fibers is expected


Features

  • Up to 24 fiber cores.
  • Low dispersion and attenuation
  • Proper design, precise control for fiber excess length and distant stranding process render the cable excellent mechanical and environmental properties
  • Double jacket structure makes cable nice properties of moisture resistance and crush resistance
  • With small cable diameter, light cable weight, easily to lay
  • The loose tube is centrally situated with good excess length and minimizes the influence of lateral crush.
  • Double wire as strength member provides excellent strain performance.
  • Operating temperature: -40 ~ +60 ℃

Technical Parameters

G.652 G.655 50/125μm 62.5/125μm

Attenuation

(+20℃)

 @850nm ≤3.0 dB/km ≤3.0 dB/km
@1300nm ≤1.0 dB/km ≤1.0 dB/km
@1310nm ≤0.36 dB/km ≤0.40 dB/km
@1550nm ≤0.22 dB/km ≤0.23dB/km
Bandwidth (Class A) @850nm ≥500 MHz·km ≥200 MHz·km
@1300nm ≥1000 MHz·km ≥600 MHz·km
Numerical Aperture 0.200±0.015NA 0.275±0.015NA
Cable Cut-off Wavelength λcc ≤1260nm ≤1480nm

Cable Type Fiber Count

Cable Diameter

mm

 Cable Weight kg/km

Tensile Strength

Long/Short Term N

Crush Resistance

Long/Short Term

N/100mm

Bending Radius

Static
/Dynamic

mm
GYXS/GYXTW-2~12 2~12 10.0 105 600/1500 300/1000 10D/20D
GYXS/GY XTW-2~12 2~12 10.6 124 1000/3000 1000/3000 10D/20D
GYXS/GY XTW-14~24 14~24 12.5 149 1000/3000 1000/3000 10D/20D
GYXS/GY XTW-26~36 26~36 14.0 190 1000/3000 1000/3000 10D/20D
GYXS/GY XTW-38~48 38~48 15.0 216 1000/3000 1000/3000 10D/20D

Note:

  1. No damage on the surface; no trachoma.
  2. Wooden tray packaging; wood whole seal packaging
  3. Segment length: no less than 1000M. The segment length of each tray of the same batch shall be similar as much as possible. Other lengths can be agreed upon through consultation.
  4. Report certificate: It includes optical cable inspection number, optical cable type, core number, optical fiber type, length, etc
