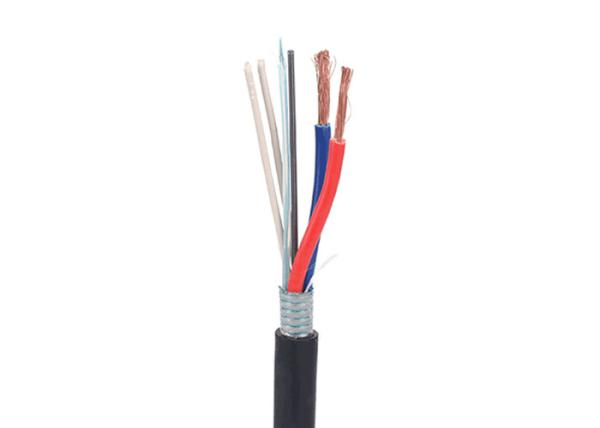

24 Cores High Speed Transmission G.652D Hybrid Fiber Power Cable
24 Cores High Speed Transmission G.652D Hybrid Fiber Power Cable
24 Cores High Speed Transmission G.652D Hybrid Fiber Power Cable
24 Cores High Speed Transmission G.652D Hybrid Fiber Power Cable
Specifications
Brand Name :
SINOHONE
Model Number :
GDTS
Certification :
RoHS / UL / CE / CPR / ISO9001
Place of Origin :
Sichuan, China
MOQ :
2000 meters
Price :
USD $0.35~$0.58 / meter
Payment Terms :
L/C, D/P, T/T, D/A, Western Union, MoneyGram
Supply Ability :
500 Kilometer/Kilometers per Day Ftth Drop Cable
Delivery Time :
5-8 work days
Packaging Details :
2km per wooden reel
Product Name :
Hybrid Fiber Power Cable
Fiber Material :
G.652D
Fiber Count :
2-24 cores
Conductor Material :
Copper
Fiber Type :
Loose tube
Storage Temperature :
-40℃ to +70℃
Sheath :
HDPE LSZH
Description

High Speed Transmission Hybrid Fiber Power Cable

Description

Sinohone Hybrid Fiber Power Optic Cable. In the GDTS cable, single-mode/multimode fibres are positioned in loose tubes, which are made of high modulus plastics and filled with water-blocking materials. Loose tubes and required insulated copper wires are stranded around the metallic central strength member into a compact and circular cable core. For certain high fibre count cables, the strength member would be covered with polythylene (PE). The PSP is longitudinally applied around the cable core, before a PE sheath is extruded over it.

Characteristics

  1. The composite cable provides the equipment electricity and signal transmission, and improves central monitoring and maintenance for equipment power
  2. To reduce the coordination and maintenance of power supply
  3. Excellent ultraviolet prevention with PE sheath
  4. The following measures are taken to ensure the water blocking performance of the cable
  5. Single steel wire used as the central strength member
  6. Special water-blocking filling compound in the loose tube
  7. 100% cable core filling
  8. PSP moisture barrier

Applications

  • Duct
  • Aerial

Cable Structure

Type Unit Data
Optical Cable Core 1(Tube) * 6(Fibers)
Copper Conductor 4 × 1.5mm2
Optical Fiber Color Blue, Orange, Green, Brown, Gray, White
Loose Tube Color White
Current Lead Color Blue,Red,Black,Yellow
Strength Member Steel Wire 2.0±0.1mm
Loose Tube PBT Material 2.5 ± 0.4 mm
Current Lead Nominal Diameter 2.85mm± 0.2 mm
Tube Protection material Steel Tape 0.2 ± 0.05 mm
Outer Jacket MDPE 1.6 ± 0.1 mm
Optical Cable nominal diameter MM 10.2 ± 0.5mm
Optical Cable net weight Kg/KM 270Kg ± 5%
Minimum Bend Radius Dynamic 20D /mm
Static 10D / mm
Tensile Strength Long Term 600N
Short Term 1500N
Permit Flattening Force Long Term 300N/10CM
Short Term 1000N/10CM
Maximum Dc Resistance Simple(20℃) 12.1Ω/KM
Insulation Resistance Every ≮10000 Ω/KM
Conform to；YD/T 901-2018, GB/T 3956-2008, GB/T 5023.3-2007

Optical Characteristics

Optical Fiber Type Attenuation Coefficient (+20℃)
@850nm @1300nm @1310nm @1550nm
G.652D / / ≤0.36 dB/km ≤0.22 dB/km
G.655C / / ≤0.40 dB/km ≤0.23 dB/km
50/125μm ≤3.0 dB/km ≤1.0 dB/km / /
62.5/125μm ≤3.0 dB/km ≤1.0 dB/km / /


Optical Fiber Type OFL Bandwidth
@850nm @1300nm @850nm
G.652D / / / /
G.655C / / / /
50/125μm ≥500 MHz·km ≥500 MHz·km 0.200±0.015 NA ≥500 MHz·km
62.5/125μm ≥200 MHz·km ≥500 MHz·km 0.275±0.015 NA ≥200 MHz·km

24 Cores High Speed Transmission G.652D Hybrid Fiber Power Cable24 Cores High Speed Transmission G.652D Hybrid Fiber Power Cable
