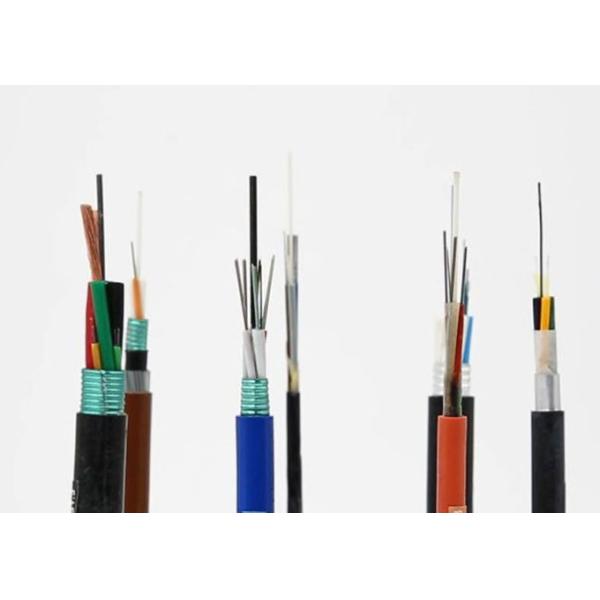

Armored Optoelectronic 1.5mm2 Copper Hybrid Optical Fiber Cable
Armored Optoelectronic 1.5mm2 Copper Hybrid Optical Fiber Cable
Armored Optoelectronic 1.5mm2 Copper Hybrid Optical Fiber Cable
Armored Optoelectronic 1.5mm2 Copper Hybrid Optical Fiber Cable
Specifications
Brand Name :
SINOHONE
Model Number :
GDTS
Certification :
RoHS / UL / CE / CPR / ISO9001
Place of Origin :
Sichuan, China
MOQ :
2000 meters
Price :
USD $0.35~$0.58 / meter
Payment Terms :
L/C, D/P, T/T, D/A, Western Union, MoneyGram
Supply Ability :
500 Kilometer/Kilometers per Day Ftth Drop Cable
Delivery Time :
5-8 work days
Packaging Details :
2km per wooden reel
Product Name :
Armored Optoelectronic Cable
Fiber Material :
G.652D
Fiber Count :
4 cores
Conductor Material :
1.5mm2 Copper
Fiber Type :
Loose tube
Sheath :
PE
Strength Member :
PSP
Description

Armored Optoelectronic Hybrid Fiber Power Cable

Description

Sinohone Hybrid Fiber Power Optic Cable provides the equipment electricity and signal transmission, and improves central monitoring and maintenance for equipment power. It reduce the coordination and maintenance of power supply and has excellent ultraviolet prevention with PE sheath.

Characteristics

  • Halogen free
  • Flame-retardant
  • UV-resistant
  • Cold-resistant and weatherproof for outdoor applications
  • High mechanical strength
  • With single or multimode fibers
  • CE, UL, FCC, ISO certificated

Features

We take the following measures to ensure the cable's high performance of water-blocking:

  • Single steel wire used as the central strength member
  • Special water-blocking filling compound in the loose tube
  • 100% cable core filling
  • PSP moisture barrier

Applications

  • Duct
  • Aerial

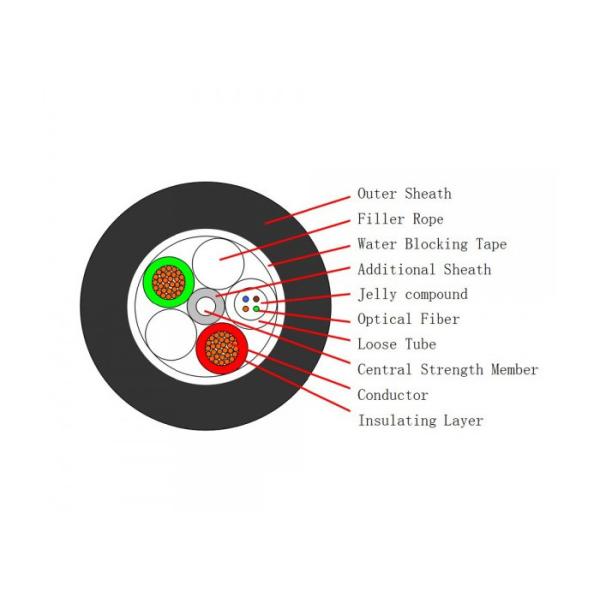

Cable Structure

Type Unit Data
Optical Cable Core 1(Tube) * 6(Fibers)
Copper Conductor 4 × 1.5mm2
Optical Fiber Color Blue, Orange, Green, Brown, Gray, White
Loose Tube Color White
Current Lead Color Blue,Red,Black,Yellow
Strength Member Steel Wire 2.0±0.1mm
Loose Tube PBT Material 2.5 ± 0.4 mm
Current Lead Nominal Diameter 2.85mm± 0.2 mm
Tube Protection material Steel Tape 0.2 ± 0.05 mm
Outer Jacket MDPE 1.6 ± 0.1 mm
Optical Cable nominal diameter MM 10.2 ± 0.5mm
Optical Cable net weight Kg/KM 270Kg ± 5%
Minimum Bend Radius Dynamic 20D /mm
Static 10D / mm
Tensile Strength Long Term 600N
Short Term 1500N
Permit Flattening Force Long Term 300N/10CM
Short Term 1000N/10CM
Maximum Dc Resistance Simple(20℃) 12.1Ω/KM
Insulation Resistance Every ≮10000 Ω/KM
Conform to；YD/T 901-2018, GB/T 3956-2008, GB/T 5023.3-2007

Optical Characteristics

Optical Fiber Type Attenuation Coefficient (+20℃)
@850nm @1300nm @1310nm @1550nm
G.652D / / ≤0.36 dB/km ≤0.22 dB/km
G.655C / / ≤0.40 dB/km ≤0.23 dB/km
50/125μm ≤3.0 dB/km ≤1.0 dB/km / /
62.5/125μm ≤3.0 dB/km ≤1.0 dB/km / /


Optical Fiber Type OFL Bandwidth
@850nm @1300nm @850nm
G.652D / / / /
G.655C / / / /
50/125μm ≥500 MHz·km ≥500 MHz·km 0.200±0.015 NA ≥500 MHz·km
62.5/125μm ≥200 MHz·km ≥500 MHz·km 0.275±0.015 NA ≥200 MHz·km

Armored Optoelectronic 1.5mm2 Copper Hybrid Optical Fiber CableArmored Optoelectronic 1.5mm2 Copper Hybrid Optical Fiber Cable
