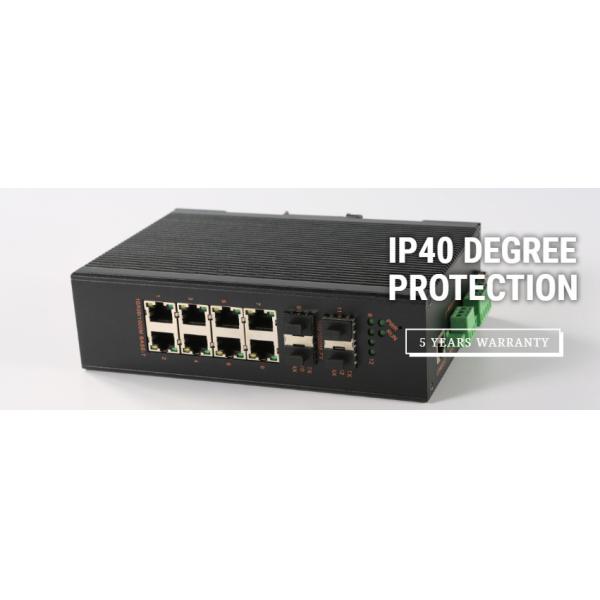

Outdoor Fiber Optic Network Switch 4 1000M SFP FX Ports + 8 10/100/1000M TX Ports
Outdoor Fiber Optic Network Switch 4 1000M SFP FX Ports + 8 10/100/1000M TX Ports
Specifications
Brand Name :
SINOHONE
Model Number :
HY-648PI
Certification :
CE RoHS CPR FCC ISO9001
Place of Origin :
Sichuan, China
MOQ :
1 piece
Price :
USD 38~48/piece
Payment Terms :
L/C, T/T, MoneyGram, Western Union
Supply Ability :
50000 pieces per month
Delivery Time :
5-8 work days
Packaging Details :
Standard packing in sealed box with foam
Product Name :
Industrial PoE Switch
Exchange Capacity :
53Mpps
POE :
Support
Mpps :
8.9 Mpps
Operating Temperature :
-40°C～85°C
Port :
8 ports of 100/1000M POE
PTN Ring Network :
Support
Installation :

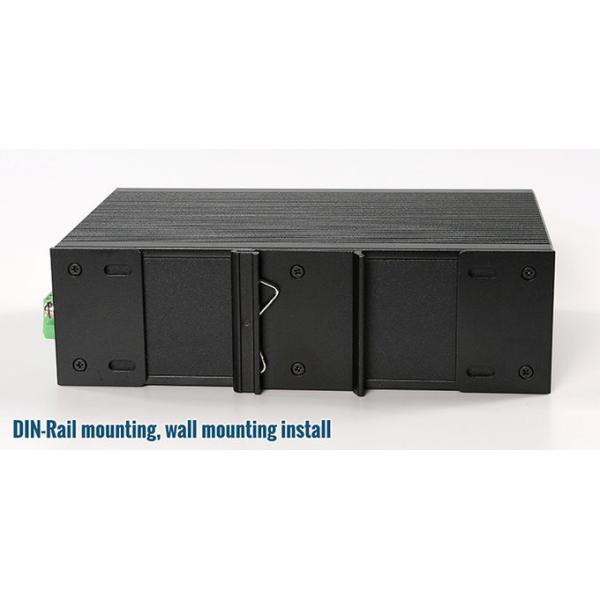

DIN Rail
Protection :
EMC4 IP40
Description

Outdoor 4 1000M SFP FX ports + 8 10/100/1000M TX ports DIN Rail Gigabit managed Industrial Switch

Description

HY-648PI is designed to withstand harsh environment of extreme temperatures and electromagnetic interference. It has rugged high-strength aluminum-alloy mental case and protection grade IP40. Low power consumption and DIN rail guide installation also makes it perfectly suitable for outdoor workplaces.

It also has the ability to connect with PTN, simplify the operation interface, make the network maintenance means effective and unified, and help to achieve efficient network management. It simplifies the complex protocol overhead of PTN and provides the OAM capability of the service layer, which makes the design and implementation of the access network more general.

Redundancy, another benefit of using managed switches over unmanaged switches is their redundacy capabilities. This allows you to have an ethernet network with extra connections, so if one path between two points on the network fails, another path can be used to deliver messages.

Applications

  • Metallurgical, petroleum and petrochemical, road traffic control automation
  • Building automatic control system, oilfield control automation
  • Hydropower station control automation
  • Computer room monitoring system, water conservancy monitoring, environmental protection monitoring and other industrial automation places

Specification

Product Name

Industrial PoE Switch
Model No. HY-648PI
Number of interference

100/1000M SFP ports (or specify other optical port forms):4

Gigabit ports :8
POE power supply Support
Exchange capacity 53G
Mpps 17.85Mpps
PTN ring network PTN industrial ring network technology, using ERPS protocol, STP protocol

Management

Support local Console serial port and TELNET command line management;
Support SSH;
Support SNMP, WEB management;
Support the unified management through the EMS management system independently developed by our company;
Support remote device software upgrade and backup through FTP and TFTP;
Support RMON performance statistics for ports
Power and power supply
  • No fan, low power consumption, the total power consumption of the equipment is less than 10/15W
  • Industrial grade supports dc or ac power (dc parameters: default -48v: -36v ~ -72v, ac parameters: default 220V: 100V ~ 260V)

Other features

  • Port convergence /LACP supported, support 1:1 port protection

  • Support interport protection based on the LACP protocol, linear protection based on the G.8031 protocol and ring network protection based on the G.8032 protocol

  • Support port redirection and port mirror function, support port-based failover capabilities

  • Support MSTP/RSTP protocol

  • Support fiber breakage alarm;Support power failure warning of Dying Gasp remote device

  • Support equipment online upgrade

  • Support storm suppression and port speed limit, speed limit granules up to 64K

  • Support SLA, Link performance tests such as link delay, jitter, packet loss and throughput can be implemented

  • Support port-based, 802.1p, DSCP, TOS, MAC address, VLAN ID, Ethernet Type

Operating temperature

Industrial grade: (-40 ° C~ 80 ° C)

Storage temperature

-40°C～85°C
