Gigabit Fiber Optic Network Switch 24 Port 1u Din Rail And Wall Mount Installation
Gigabit Fiber Optic Network Switch 24 Port 1u Din Rail And Wall Mount Installation
Gigabit Fiber Optic Network Switch 24 Port 1u Din Rail And Wall Mount Installation
Gigabit Fiber Optic Network Switch 24 Port 1u Din Rail And Wall Mount Installation
Specifications
Brand Name :
SINOHONE
Model Number :
HY-6624I
Certification :
CE RoHS CPR FCC ISO9001
Place of Origin :
Sichuan, China
MOQ :
1 piece
Price :
USD 200-250/piece
Payment Terms :
L/C, T/T, MoneyGram, Western Union
Supply Ability :
50000 pieces per month
Delivery Time :
5-8 work days
Packaging Details :
Standard packing in sealed box or according to customers' requirements
Model :
HY-6624I
10/100/1000 Mbps RJ45 :
24 ports
1000 Mbps SFP :
6 ports
Grade :
Industrial
Switching Capacity :
256G
Packet Forwarding Rate :
44.64Mpps
Item Weight :
2.1 kg
Dimension :
440*200*44 mm
Operating Temperature :
-40°C ~ +85°C (-40F ~ 185F)
Description

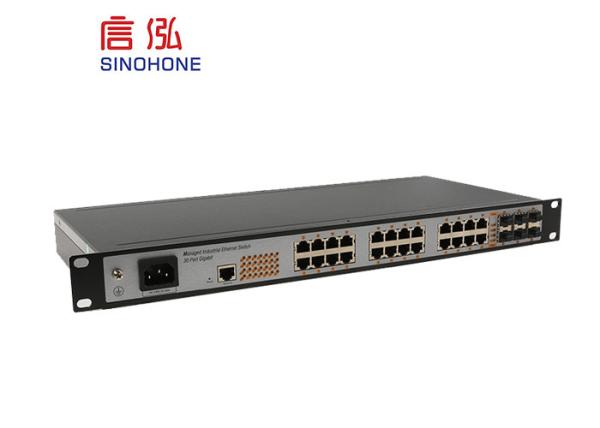

Gigabit Fiber Optic Switch 24 Port 1U DIN Rail and Wall Mount Installation

Industrial Ethernet Switches - Managed Series

Sinohone's HY-6624I is a reliable IP40 managed switch with high-strengh IP40 rated for extreme industrial enviroments. It offers 24 Gigabit ethernet ports and 6 Gigabit SFP ports. It provides flexible deploy, scalable and secure switching in your industrial network.

  • Sinohone integrated network security network switch helps IT gain valuable insights into traffic flows and continuous monitoring of network activity.
  • Its high-availbility technology helps facilitate networkwide resilience to increase network avaiability as you scale.
  • Zero-touch deployments and esay management help reduce operational expenses as organizations add thousands of new endpoints.
  • Sinohone switch helps optimize the future of your network investment

Features

  • 24 x Gigabit Ethernet ports
  • 6 x Gigabit SFP ports
  • 256 Gbps switching capacity
  • 44.64Mpps forwarding rate
  • Hardened IP40 rated metal switch
  • Includes DIN-rail and wall mounts
  • Extreme -40 to 85° C operating temperature range
  • Dual redundant power inputs with overload current protection
  • Lifetime Sinohone Manufacturer's Warranty

Applications:

  1. Coal Mine Safety
  2. Power Industry
  3. Transportation Industry
  4. Laboratory
  5. Smart Traffic
  6. Factory Automation
  7. Smart City
  8. Oil & Gas
  9. Materials and Mining

Specification

Model HY-6624I
Number of interfaces

Electric port: 10/100/1000M 24-RJ45,

SFP port: 1000M 6-SFP
Installation method DIN rail mounting
Item Weight 2.1kg
Product Dimension 440*200*44mm
power supply Dual power supply, DC12V-57V dual power supply,
Power and power supply No fan, low power consumption, the total power consumption of the device itself is less than 30W
AC input: default 220V: 100V ~ 260V
Working temperature Industrial grade: (-40 ° C ~ 85 ° C)
Storage ambient temperature -40°C～85°C

Why industrial ethernet switch

Industrial Ethernet switches are specially designed to meet the needs of flexible industrial applications, providing a cost-effective industrial Ethernet communications solution. The networking method focuses more on loop design. There are single-ring and multi-ring differences in the loop.

Gigabit Fiber Optic Network Switch 24 Port 1u Din Rail And Wall Mount Installation
