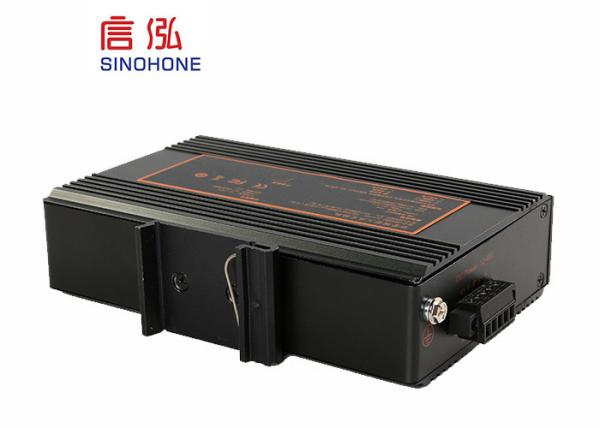

Single Mode Fiber Optic Network Switch 6 Ports Unmanaged Industrial Ethernet Switch
Single Mode Fiber Optic Network Switch 6 Ports Unmanaged Industrial Ethernet Switch
Single Mode Fiber Optic Network Switch 6 Ports Unmanaged Industrial Ethernet Switch
Single Mode Fiber Optic Network Switch 6 Ports Unmanaged Industrial Ethernet Switch
Specifications
Brand Name :
SINOHONE
Model Number :
HY-524GI
Certification :
CE RoHS CPR FCC ISO9001
Place of Origin :
Sichuan, China
MOQ :
1 piece
Price :
USD 18~48/piece
Payment Terms :
L/C, T/T, MoneyGram, Western Union
Supply Ability :
50000 pieces per month
Delivery Time :
5-8 work days
Packaging Details :
Standard packing in sealed box or according to customers' requirements
Model :
HY-524GI
Protection Level :
IP 40
Manage :
UN-managed
RJ45 :
4 ports 10/100/1000Mbps
SFP :
2 ports 1000Mbps
Installation :
DIN Rail / Wall Mounted
Switching Capacity :
53G
Operating Temperature :
-40°C ~ +85°C (-40F ~ 185F)
Power Supply :
12 / 24 / 36 V DC
Description

DIN Rail / Wall Mount UN Managed Industrial Ethernet Switches 6 Port

Sinohone Industrial Ethernet Switches

Using the Sinohone industrial ethernet switches to connect business systems with antomation and control. Leverage our tested, calidated designs to optimize industrial network performance.

Our solution can enable lean, efficient, collaborative, safe, and highly secure operations, resulting in a fully connected and converged different kind of industrial network. And it helps you keep costs down and profits up.

  • Bosst performance and efficiency in every operation to reduce downtime
  • Better manage and schedule your fleet and assets
  • Increase security to control access to restricted areas and your assets
  • Better ensure the safety of both your employees and the environment

Characteristics

  • Compact 6-port Ethernet switch (4 Ports PoE support) with automatic MDI/MDI-X crossover for plug-and play
  • Expand your network connectivity with this rugged unmanaged network switch, easy monitor and diagnostic by LED indicator
  • FAST DATA TRANSMISSION: Each port supports both 10/100Mbps speed auto negotiation, Supports IEEE 802.3, 802.3u, 802.3x, 802.3af (power over Ethernet)
  • ROBUST AND RELIABLE - can be used in extreme industrial environments; Supports a wide range of operating temperatures -40℃ ~ +85℃ (-40F ~ 185F)
  • Easy to use and DIN rail mountable with built-in bracket
  • Robust IP40-rated housing, Easy deployment and fast boot up time
  • Wide range 48V DC terminal block input
  • LOW POWER CONSUMPTION -energy efficient ethernet

Specification

Model HY-524GI
Number of interfaces

4 Gigabit electrical ports

2 Gigabit SFP ports
Exchange capacity 53G
Packet forwarding rate 8.9Mpps
POE power supply no
Operating temperature -40 to 80 °C
Input voltage 12 ～ 48VDC
Protection level IP40
shell Metal material, no fan
Operating temperature -40 to 80 °C
storage temperature -40 to 85 ° C
Working humidity 5 to 95% (no solidification)

Related Models

HY-505 5 hundred megabytes
HY-508 8 hundred megabytes
HY-504G 4 Gigabit electrical ports
HY-508G 8 full Gigabit ports, backplane bandwidth 16G, packet forwarding rate 11.9M, 12VDC, 1A
HY-5016G 16 Gigabit electrical ports
HY-5024G 24 Gigabit electrical ports
HY-515 Provide 1 Gigabit SFP port (or specify other optical port form), 5 100M electrical ports
HY-524 Provide 2 Gigabit SFP ports (or specify other optical ports), 4 100M electrical ports
HY-528 Provide 2 Gigabit SFP ports (or specify other optical ports), 8 100M electrical ports
HY-515G Provide 1 Gigabit SFP port (or specify other optical port form), 5 Gigabit electrical ports
HY-524G Provide 2 Gigabit SFP ports (or specify other optical ports), 4 Gigabit electrical ports
HY-528G Provide 2 Gigabit SFP ports (or specify other optical ports), 8 Gigabit electrical ports
HY-5216G Provide 2 Gigabit SFP ports (or specify other optical ports), 16 Gigabit electrical ports
HY-5224G Provide 2 Gigabit SFP ports (or specify other optical ports), 24 Gigabit electrical ports
