Mini 10/100 Mbps Fiber Optic Network Switch 5- Port Industrial POE Ethernet Switches
Mini 10/100 Mbps Fiber Optic Network Switch 5- Port Industrial POE Ethernet Switches
Mini 10/100 Mbps Fiber Optic Network Switch 5- Port Industrial POE Ethernet Switches
Mini 10/100 Mbps Fiber Optic Network Switch 5- Port Industrial POE Ethernet Switches
Specifications
Brand Name :
SINOHONE
Model Number :
HY-505PI
Certification :
CE RoHS CPR FCC ISO9001
Place of Origin :
Sichuan, China
MOQ :
1 piece
Price :
USD 30-38/piece
Payment Terms :
L/C, T/T, MoneyGram, Western Union
Supply Ability :
50000 pieces per month
Delivery Time :
5-8 work days
Packaging Details :
Standard packing in sealed box or according to customers' requirements
Model :
HY-505PI
Protection Level :
IP40
Manage :
UN-managed
RJ45 :
5 ports 10/100 Mbps
SFP :
None
Installation :
DIN Rail / Wall Mounted
Switching Capacity :
53G
Operating Temperature :
-40°C ~ +85°C (-40F ~ 185F)
Power Supply :
12 / 24 / 36 V DC
Description

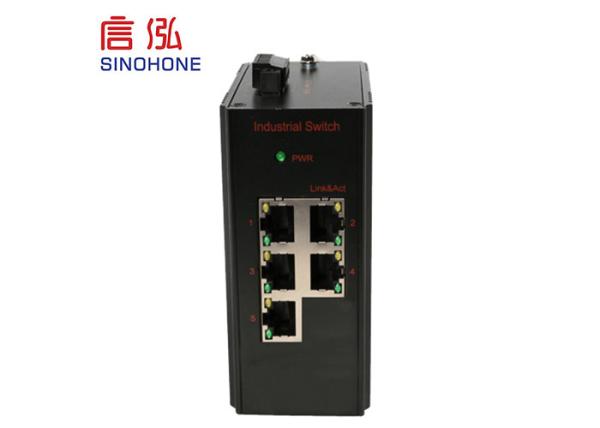

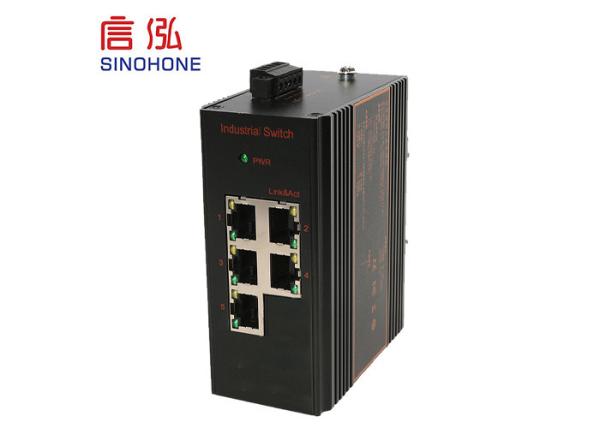

Mini 10/100 Mbps UN managed 5-Port Industrial POE Ethernet Switches with DIN Rail

Sinohone Industrial Ethernet Switches

Sinohone HY-505PI is an industrial grade and unmanaged ethernet switch. It has 5 RJ45 ports and 4 port support POE power supply, which is designed to for monitoring cameras in smart traffic, laboratory, oil & gas and factory automation.

It has corrugated high-strength aluminum case to protect from dust and dirt.

Characteristics

  • EMC industrial grade 4 protection performance
  • Effectively resist static, lightning strikes and pulse interference
  • Corrugated high-strength aluminum profile housing
  • IP40 protection
  • Low power design, seismic rail mounting
  • Wide temperature -40 ° C -80 ° C
  • Designed to work in harsh environments

Specification

Model HY-505PI
Number of interfaces Electric port: 10/100M 5-RJ45,
Installation method DIN rail mounting
POE power supply 4POE(15.4W/30W)；
power supply Dual power supply, DC12V-57V dual power supply,
Power and power supply No fan, low power consumption, the total power consumption of the device itself is less than 30W
AC input: default 220V: 100V ~ 260V
Working temperature Industrial grade: (-5 ° C ~ 70 ° C) Commercial grade: (-5 ° C ~ 50 ° C)
Storage ambient temperature -40°C～85°C

Why industrial ethernet switch

Industrial network switches are designed for harsh conditions and environments, they can last for a long time while business information technology switches are designed for data center applications and have a shorter overall lifespan.

Industrial Ethernet switches is built to withstand all challenges of dirt, dust, shocks, electrical noise, blistering heat and freezing cold.


Mini 10/100 Mbps Fiber Optic Network Switch 5- Port Industrial POE Ethernet Switches
