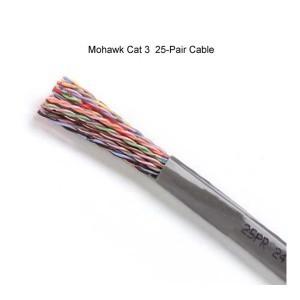

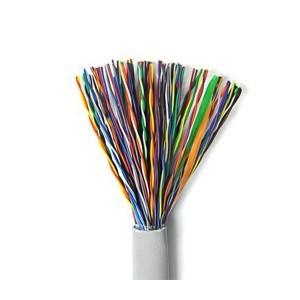

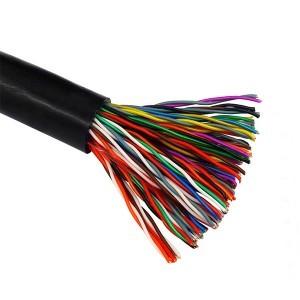

CAT3 Bulk Network Cable Telephone Outdoor 2/5/20 Pair Waterproof
CAT3 Bulk Network Cable Telephone Outdoor 2/5/20 Pair Waterproof
CAT3 Bulk Network Cable Telephone Outdoor 2/5/20 Pair Waterproof
CAT3 Bulk Network Cable Telephone Outdoor 2/5/20 Pair Waterproof
CAT3 Bulk Network Cable Telephone Outdoor 2/5/20 Pair Waterproof
CAT3 Bulk Network Cable Telephone Outdoor 2/5/20 Pair Waterproof
CAT3 Bulk Network Cable Telephone Outdoor 2/5/20 Pair Waterproof
CAT3 Bulk Network Cable Telephone Outdoor 2/5/20 Pair Waterproof
CAT3 Bulk Network Cable Telephone Outdoor 2/5/20 Pair Waterproof
CAT3 Bulk Network Cable Telephone Outdoor 2/5/20 Pair Waterproof
Specifications
Brand Name :
SINOHONE
Model Number :
CAT3 CABLE
Certification :
ISO,CE,UL,ROHS
Place of Origin :
Sichuan,China
MOQ :
2000 METER
Price :
USD0.35~3.6/METERS
Payment Terms :
L/C, D/A, D/P, T/T, Western Union
Supply Ability :
1000 Kilometer/Kilometers per Week
Delivery Time :
5 Days
Packaging Details :
Standard packing in sealed box or according to customers' requirements
Shield :
Optional
Type :
Cat 3
Jacket Material :
PVC / LSZH / PE
Gel Filled :
Optional
Conductor Material :
Solid Bare Copper / TC / CCA
Description

CAT3 Bulk Network Cable Telephone Outdoor 2/5/20 Pair Waterproof

Sinohone CAT3 bulk network cable complies with the ROHS standards, and have many kinds of sheath according to the environmental demands. It also has special design for trunk voice transmission and clear labels to be convenient for fixing.

Physical and Electrical Characteristics

Impedance 1-16MHz 100±15Ω
Max. Mutual Capacitance 6.6nF/100m
Max. Unbalanced DC resistance 2.5%
Max. Differential phase delay 45nF/100m
Permitted bend radius 10 times diameter of the cable
Fixing temperature 0~+55°C
Operating temperature -20°C~+60°C
Max. Tension 80N
Min. Dielectric Strength Between Conductors 1.0kV/min
Applications 10Base-T,10Base-T4
Standards ISO/IEC11801,ANSI/TIA/EIA-568-B(International standards: ISO/IEC11801,ANSI/TIA/EIA-568-B)

Features of Product


Comply with the ROHS Standards;
Many kinds of sheath can be designed according to the environmental demands;
Special design for trunk voice transmission;
Clear labels be convenient for fixing.

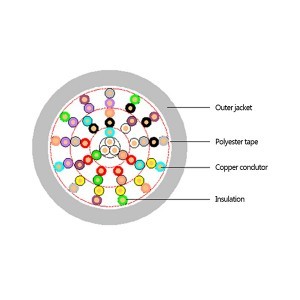

Parameters:

structure conduct diameter (mm) single pure copper Diameter of Single Copper Wire Insulated diameter (mm) (HDPE) Diameter of Insulated Wire
UTP 0.4/0.48 0.7/.86 25 (Naught) PE/PVC/LSZH 9.6±1.0
UTP 0.4/0.48 0.7/.86 50 (Naught) 14.4±1.0
UTP 0.4/0.48 0.7/.86 100 (Naught) 18.6±1.0

Notes: PE- Polyethylene; PVC- Polyvinyl chloride; LSZH-Low Smoke Zero Halogen; Grades of PVC Fire Resistance CMX,CM,CMR and CMP

Transmission Performance

Frequency IL-Max NEXT-Min PSNEXT-Min ELFEXT-Min RL-Min
(MHz) (dB/100m) (dB/100m) (dB/100m) (dB/100m) (dB)
1 2.6 41 41 39 12
4 5.6 32 32 27 12
10 9.7 26 26 19 12
16 13.1 23 23 15 10

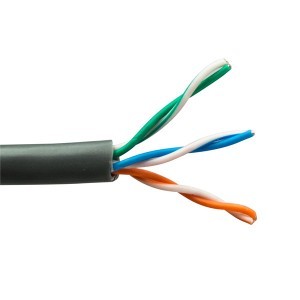

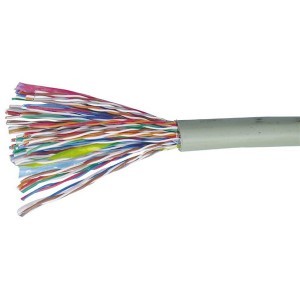

CAT3 Bulk Network Cable Telephone Outdoor 2/5/20 Pair WaterproofCAT3 Bulk Network Cable Telephone Outdoor 2/5/20 Pair WaterproofCAT3 Bulk Network Cable Telephone Outdoor 2/5/20 Pair Waterproof
