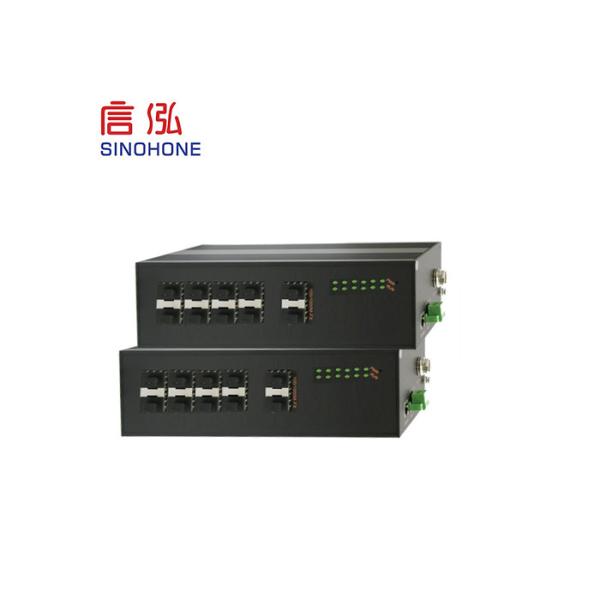

Full Optic Ethernet 2 8 10 Port 100/1000M SFP Industrial Switch PTN Ring Network
Full Optic Ethernet 2 8 10 Port 100/1000M SFP Industrial Switch PTN Ring Network
Full Optic Ethernet 2 8 10 Port 100/1000M SFP Industrial Switch PTN Ring Network
Full Optic Ethernet 2 8 10 Port 100/1000M SFP Industrial Switch PTN Ring Network
Full Optic Ethernet 2 8 10 Port 100/1000M SFP Industrial Switch PTN Ring Network
Full Optic Ethernet 2 8 10 Port 100/1000M SFP Industrial Switch PTN Ring Network
Full Optic Ethernet 2 8 10 Port 100/1000M SFP Industrial Switch PTN Ring Network
Full Optic Ethernet 2 8 10 Port 100/1000M SFP Industrial Switch PTN Ring Network
Specifications
Brand Name :
SINOHONE
Model Number :
HY-628FI
Certification :
CE RoHS CPR FCC ISO9001
Place of Origin :
Sichuan, China
MOQ :
1 piece
Price :
USD 38~48/piece
Payment Terms :
L/C, T/T, MoneyGram, Western Union
Supply Ability :
50000 pieces per month
Delivery Time :
5-8 work days
Packaging Details :
Standard packing in sealed box
Product Name :
SinoHone Full Optical Gigabit Switch
Exchange Capacity :
14.8Mpps
POE :
Support PoE power supply
Mpps :
8.9 Mpps
Protection Grade :
IP40
Operating Temperature :
-40°C～85°C
Port :
10 ports of 100/1000M SFP
Description

Full Optic Ethernet 2 8 10 Port 100/1000M SFP Industrial Switch PTN Ring Network

Description

HY-628FI supports 4K VLAN, VLAN conversion function, VLAN based on port, MAC, protocol, IP address and QinQ. Its 10 ports are all optical SFP, which can be used as PTN remote equipment and provide high speed Ethernet service access and support Ethernet standard protocol.

HY-628FI can connect with PTN, simplify the operation interface, makes the means of network maintenance effective and unified, and help to achieve efficient network management.

Features

  • High protection level of IP40
  • Strong electromagnetic compatibility EMS level 4
  • Stable performance

Specification

Product Name

Gigabit Full Optical Industrial Switch
Model No. HY-628FI
Number of interference

100/1000M SFP ports (or specify other optical port forms):10
POE power supply Support
Exchange capacity 53G
Mpps 8.9Mpps
PTN ring network PTN industrial ring network technology, using ERPS protocol, STP protocol

Management

Support local Console serial port and TELNET command line management;
Support SSH;
Support SNMP, WEB management;
Support the unified management through the EMS management system independently developed by our company;
Support remote device software upgrade and backup through FTP and TFTP;
Support RMON performance statistics for ports
Power and power supply
  • No fan, low power consumption, the total power consumption of the equipment is less than 10/15W
  • Industrial grade supports dc or ac power (dc parameters: default -48v: -36v ~ -72v, ac parameters: default 220V: 100V ~ 260V)
Applications
  • Electric power automation
  • Factory automation
  • Coal mine automation
  • Rail transit
  • Wind energy and wind power

Operating temperature

Industrial grade: (-40 ° C~ 80 ° C)

Storage temperature

-40°C～85°C

Full Optic Ethernet 2 8 10 Port 100/1000M SFP Industrial Switch PTN Ring NetworkFull Optic Ethernet 2 8 10 Port 100/1000M SFP Industrial Switch PTN Ring Network
