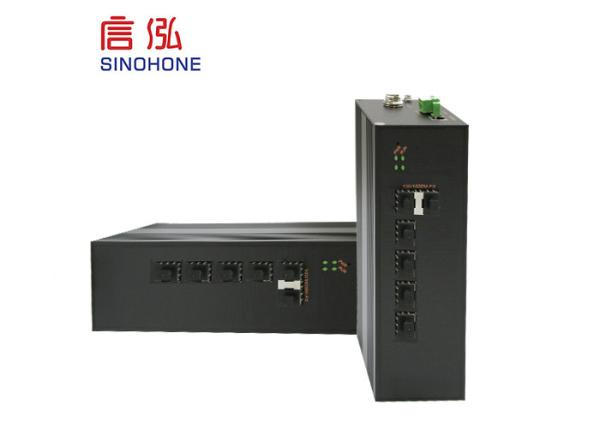

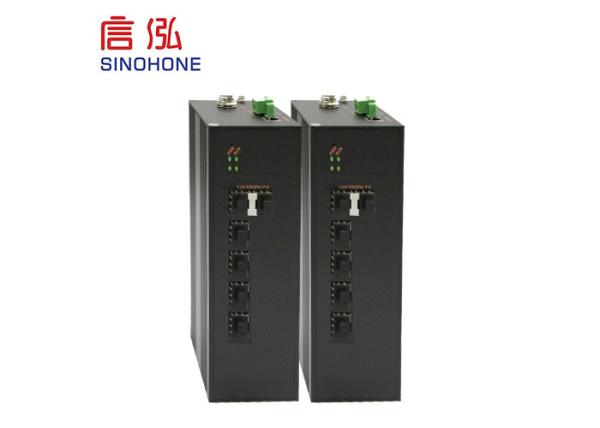

All Optical Ethernet 6 Port 100M / 1000M Gigabit Industrial Switch Support PTN
All Optical Ethernet 6 Port 100M / 1000M Gigabit Industrial Switch Support PTN
All Optical Ethernet 6 Port 100M / 1000M Gigabit Industrial Switch Support PTN
All Optical Ethernet 6 Port 100M / 1000M Gigabit Industrial Switch Support PTN
All Optical Ethernet 6 Port 100M / 1000M Gigabit Industrial Switch Support PTN
All Optical Ethernet 6 Port 100M / 1000M Gigabit Industrial Switch Support PTN
All Optical Ethernet 6 Port 100M / 1000M Gigabit Industrial Switch Support PTN
All Optical Ethernet 6 Port 100M / 1000M Gigabit Industrial Switch Support PTN
Specifications
Brand Name :
SINOHONE
Model Number :
HY-624FI
Certification :
CE RoHS CPR FCC ISO9001
Place of Origin :
Sichuan, China
MOQ :
1 piece
Price :
USD 38~48/piece
Payment Terms :
L/C, T/T, MoneyGram, Western Union
Supply Ability :
50000 pieces per month
Delivery Time :
5-8 work days
Packaging Details :
Standard packing in sealed box
Product Name :
SinoHone Full Optical Gigabit Switch
Exchange Capacity :
53Mpps
POE :
Nonsupport
Mpps :
8.9 Mpps
Operating Temperature :
-40°C～85°C
Port :
6 ports of 100/1000M SFP
PTN Ring Network :
Support
Model No. :
HY-624FI (AC / DC)
Description

All Optical Ethernet 6 Port 100M / 1000M Gigabit Industrial Switch Support PTN

Description

HY-624FI is our all-optical industrial-grade switch, which is used in rail transit, power wind, mining and other industries. The product provides high-speed Ethernet service access and supports Ethernet standard protocols. It simplifies the complex protocol overhead of PTN, while providing the OAM capability of the business layer, making the design and implementation of the access network more brief. Have the ability to connect with PTN network, simplify the operation interface, make the network maintenance means effectively unified, and help to achieve efficient network management.

Applications

  • Metallurgical, petroleum and petrochemical, road traffic control automation
  • Building automatic control system, oilfield control automation
  • Hydropower station control automation
  • Computer room monitoring system, water conservancy monitoring, environmental protection monitoring and other industrial automation places

Specification

Product Name

Gigabit Full Optical Industrial Switch
Model No. HY-628FI
Number of interference

100/1000M SFP ports (or specify other optical port forms):10
POE power supply Support
Exchange capacity 53G
Mpps 8.9Mpps
PTN ring network PTN industrial ring network technology, using ERPS protocol, STP protocol

Management

Support local Console serial port and TELNET command line management;
Support SSH;
Support SNMP, WEB management;
Support the unified management through the EMS management system independently developed by our company;
Support remote device software upgrade and backup through FTP and TFTP;
Support RMON performance statistics for ports
Power and power supply
  • No fan, low power consumption, the total power consumption of the equipment is less than 10/15W
  • Industrial grade supports dc or ac power (dc parameters: default -48v: -36v ~ -72v, ac parameters: default 220V: 100V ~ 260V)

Other features

  • Port convergence /LACP supported, support 1:1 port protection

  • Support interport protection based on the LACP protocol, linear protection based on the G.8031 protocol and ring network protection based on the G.8032 protocol

  • Support port redirection and port mirror function, support port-based failover capabilities

  • Support MSTP/RSTP protocol

  • Support fiber breakage alarm;Support power failure warning of Dying Gasp remote device

  • Support equipment online upgrade

  • Support storm suppression and port speed limit, speed limit granules up to 64K

  • Support SLA, Link performance tests such as link delay, jitter, packet loss and throughput can be implemented

  • Support port-based, 802.1p, DSCP, TOS, MAC address, VLAN ID, Ethernet Type

Operating temperature

Industrial grade: (-40 ° C~ 80 ° C)

Storage temperature

-40°C～85°C

All Optical Ethernet 6 Port 100M / 1000M Gigabit Industrial Switch Support PTNAll Optical Ethernet 6 Port 100M / 1000M Gigabit Industrial Switch Support PTN

All Optical Ethernet 6 Port 100M / 1000M Gigabit Industrial Switch Support PTN
