24 Port Fiber Optic Switch Industrial Ethernet Gigabit Switch Support PTN
24 Port Fiber Optic Switch Industrial Ethernet Gigabit Switch Support PTN
24 Port Fiber Optic Switch Industrial Ethernet Gigabit Switch Support PTN
24 Port Fiber Optic Switch Industrial Ethernet Gigabit Switch Support PTN
24 Port Fiber Optic Switch Industrial Ethernet Gigabit Switch Support PTN
24 Port Fiber Optic Switch Industrial Ethernet Gigabit Switch Support PTN
Specifications
Brand Name :
SINOHONE
Model Number :
HY-61212I
Certification :
CE RoHS CPR FCC ISO9001
Place of Origin :
Sichuan, China
MOQ :
1 piece
Price :
USD 38~48/piece
Payment Terms :
L/C, T/T, MoneyGram, Western Union
Supply Ability :
50000 pieces per month
Delivery Time :
5-8 work days
Packaging Details :
Standard packing in sealed box
Product Name :
SinoHone Gigabit Industrial Switch
Exchange Capacity :
256Mpps
Mpps :
35.7Mpps
Operating Temperature :
-40°C～85°C
SFP Port :
12 Gigabit Ports
Electric Port :
12 Gigibit Ports
Model No. :
HY-61212I
POE Power Supply :
Nonsupport
Description

24 Port Fiber Optic Switch Industrial Ethernet Gigabit Switch Support PTN

Description

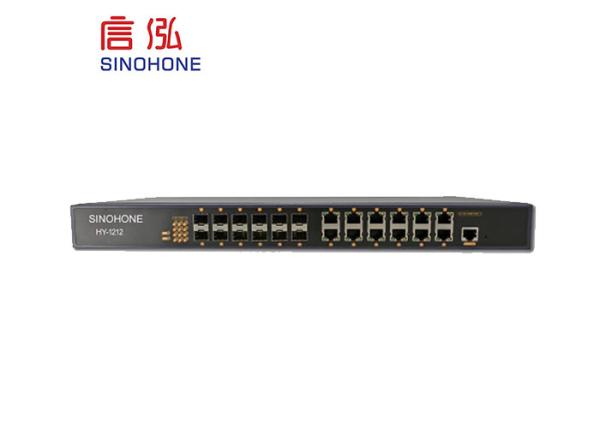

HY-61212I provides 12 gigabit SFP ports (or specify other optic port form) and 12 gigabits electric ports. Its a industrial gigabit fiber optic switch with exchange capacity 256G and 35.7Mpps.

HY-61212I supports PTN industrial ring network technology and using ERPS protocol, STP protocol. It also support 4K VLAN, VLAN conversion function, VLAN based on port, MAC, protocol, IP address and QinQ.

Its ability to connect with PTN network, simplify the operation interface, make the network maintenance means effectively unified, and help to achieve efficient network management.

Specification

Product Name

Gigabit Full Optical Industrial Switch
Model No. HY-61212I
Number of interference

Gigabit SFP ports (or specify other optical port forms): 12

Gigabit ports: 12
POE power supply Nonsupport
Exchange capacity 256G
Mpps 35.7Mpps
PTN ring network PTN industrial ring network technology, using ERPS protocol, STP protocol

Other features

  • Port convergence /LACP supported, support 1:1 port protection

  • Support interport protection based on the LACP protocol, linear protection based on the G.8031 protocol and ring network protection based on the G.8032 protocol

  • Support port redirection and port mirror function, support port-based failover capabilities

  • Support MSTP/RSTP protocol

  • Support fiber breakage alarm;Support power failure warning of Dying Gasp remote device

  • Support equipment online upgrade

  • Support storm suppression and port speed limit, speed limit granules up to 64K

  • Support SLA, Link performance tests such as link delay, jitter, packet loss and throughput can be implemented

  • Support port-based, 802.1p, DSCP, TOS, MAC address, VLAN ID, Ethernet Type

Operating temperature

Industrial grade: (-40 ° C~ 80 ° C)

Storage temperature

-40°C～85°C

Applications

  • Metallurgical, petroleum and petrochemical, road traffic control automation
  • Building automatic control system, oilfield control automation
  • Hydropower station control automation
  • Computer room monitoring system, water conservancy monitoring, environmental protection monitoring and other industrial automation places
