LCD Monitor Single Fiber Optic Termination Box 5.7 Inch Color Fusion Splicer
LCD Monitor Single Fiber Optic Termination Box 5.7 Inch Color Fusion Splicer
LCD Monitor Single Fiber Optic Termination Box 5.7 Inch Color Fusion Splicer
LCD Monitor Single Fiber Optic Termination Box 5.7 Inch Color Fusion Splicer
LCD Monitor Single Fiber Optic Termination Box 5.7 Inch Color Fusion Splicer
LCD Monitor Single Fiber Optic Termination Box 5.7 Inch Color Fusion Splicer
LCD Monitor Single Fiber Optic Termination Box 5.7 Inch Color Fusion Splicer
LCD Monitor Single Fiber Optic Termination Box 5.7 Inch Color Fusion Splicer
LCD Monitor Single Fiber Optic Termination Box 5.7 Inch Color Fusion Splicer
LCD Monitor Single Fiber Optic Termination Box 5.7 Inch Color Fusion Splicer
Specifications
Brand Name :
SINOHONE
Model Number :
Splicing Machine
Certification :
CPR FCC CE RoHS ISO9001
Place of Origin :
Sichuan, China
MOQ :
1000 piece
Price :
USD $0.36~$0.38 / pieces
Payment Terms :
L/C, D/P, T/T, D/A, Western Union, MoneyGram
Supply Ability :
500000 pieces per month
Delivery Time :
5-8 work days
Packaging Details :
Standard packing in sealed box or according to customers' requirements
Product Name :
Fiber Optical Splicing Machine
Fiber Count :
Single
Monitor :
5.7 inch color LCD monitor
Terminal :
USB
Tension Test :
2N
Electrode life :
4000
Average Splicing Loss :
0.02 dB
Cable :
0.25 mm / 0.9 mm / 3.0 mm / Flat cable
Description

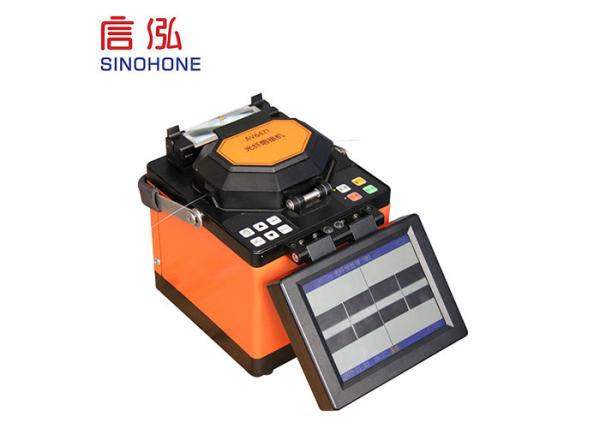

5.7 Inch Color LCD Monitor Single Fiber Optical Fiber Splicing Machine Fusion Splicer

The optical fiber splicing machine is mainly used for the construction and maintenance of optical cables in optical communication, so it is also called the optical fiber fusion splicer.

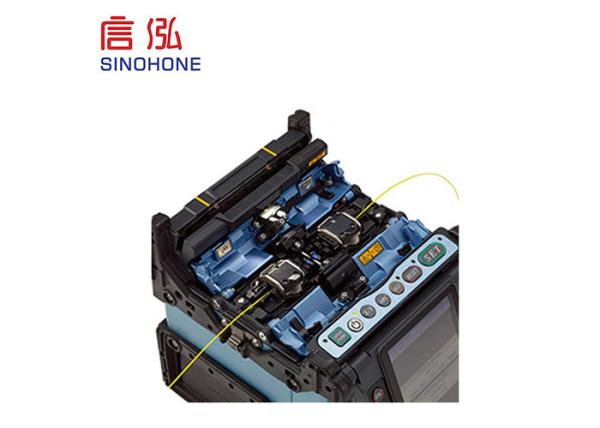

The general working principle is to use a high-voltage arc to melt the two fiber sections while gently advancing with two high-precision motion mechanisms to fuse the two fibers into one to achieve the coupling of the fiber mode field.

Feature :

  • Shake Proof, Dust Proof and Water Proof
  • Take only 9 Seconds for Splicing, 30 Seconds for Heating
  • Average Splicing Loss: 0.02dB
  • Up to 200 times of continuous splices and heat
  • HD CMOS sensor and HD aligner for double seperate optical fibers .
  • Splice 0.25mm/0.9mm/3.0mm/ Flat cable
  • 5.0 Color LCD Monitor
  • Ideal for both indoor and outdoor splicing
  • Electrode Life: 4,000 times splicing
  • Attached Night Light

Characteristics:

Alignment IPAS Core to Core Alignment (Image Pattern Analysis Alignment System)
Fiber diameter Cladding diameter:80-150m; Coating diameter:100-1000m
Fiber count Single
Fiber cleaved length 12-16mm (Coating diameter:250m)
Actual average splice loss 0.02dB(SM), 0.01dB(MM), 0.04dB(DS), 0.04dB(NZDS)
Typical splicing time Typical 9 sec (standard SM fiber)
Splicing mode Auto Calibrate Normal Special
Fiber aligning method Meticulous, Core, Clad, Manual
Splicing program 53 (templet), 40(user)
Tube heating program 9 (templet),24(user)
Tube typical heating time Typical 25 sec
Protection sleeve length 60mm, 40mm
Storage of splice result 4000 results, 20 parameter per result
Fiber image magnification 300X (X or Y view),150X (X and Y view)
Battery capacity Typical 160 cycles (splice/tube heat with inner Li-battery)
Monitor 5.7 inch color LCD monitor
Tension test 2N
Electrode life 4000
Terminal USB
Power supply AC 100-240V with AC adapter Inner Li-battery (7800mAH) DC 13.5V
Operating condition 0-5000m above sea level, -10-50Max wind velocity of 15m/s
Dimension 150mm(L)×150mm(W)×150mm(H)
Weight 2.55Kg excluding battery,3.05Kg including battery

Applications

  1. Fiber Optic Instruments
  2. Passive Optical Networks
  3. Optical Communication Networks
  4. Local Area Network, Wide Area Network
