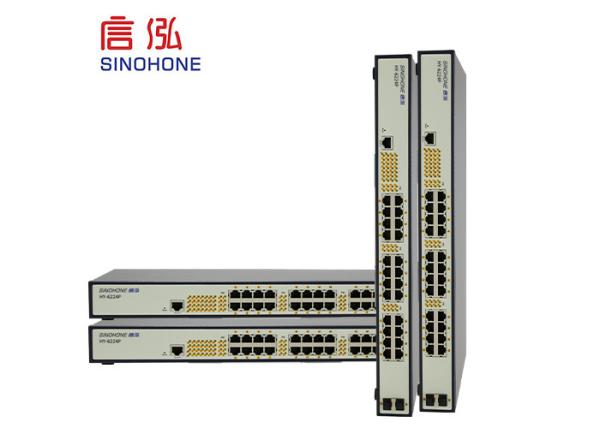

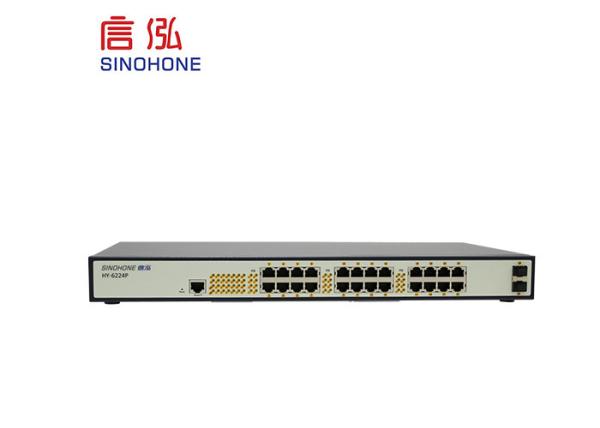

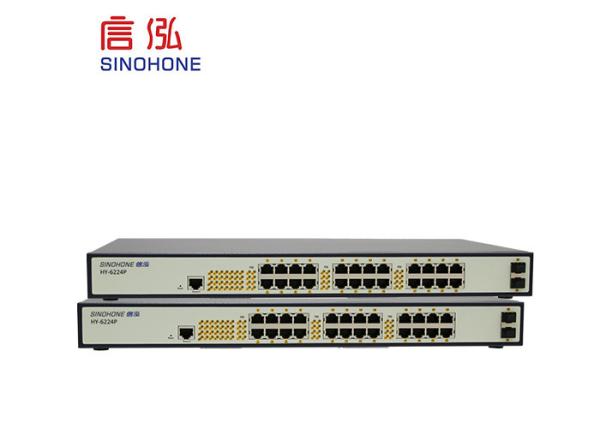

30 W POE Power Supply 24 RJ45 Port Gigabit Monitoring Switch Fiber Optic Network Switch

Descriptions:

HY-6224P support PTN industrial ring network technology, using ERPS protocol, STP protocol. With IEEE802.3af/at standard of PoE power supply and Max. 30W power consumption per port, it is perfect for senarios such as express way monitoring and supervisory control.

Specifications:

Other Specifications:

• Support port aggregation/LACP, support 1:1 port protection
• Interport protection based on LACP protocol, linear protection based on G.8031 protocol and ring network protection based on G.8032 protocol are supported.
• Support port redirection and port mirroring, support port-based barrier transfer function
• Support MSTP/RSTP protocol
• Supporting fibre breaking alarm; Supporting Dying Gasp remote device power failure alarm
• Support on-line upgrade of equipment
• Supporting storm suppression and port speed limit, speed limit particles up to 64K
• Support on-line upgrade of equipment
• Supporting SLA enables link performance testing such as link delay, jitter, packet loss and throughput
• Support port-based, 802.1P, DSCP, TOS, MAC address, VLAN ID, Ethernet Type

Management:

• Support CLI, Ethernet port, IPv4/IPv6 HTTP, IPv4/IPv6 FTP/TFTP, IPv4/IPv6 SNTP/NTP
• It supports radius authentication of Telnet username and password of IPv4/IPv6, SSH of IPv4/IPv6, security IP security network management function, syslog of IPv4/IPv6, SNMPv1/v2c/v3, MIB interface and Trap.
• Support RMON 1, 2, 3, 9 groups, dual IMG and multiple configuration files, support LLDP, support port mirroring, CPU mirroring, RSPAN and ERSPAN, support sFlow traffic monitoring, support Reset one-key restore, support zero-contact configuration*, support IEEE1588 time synchronization.
• Information Centor, OAM, VSF

Application

• Metallurgical, petroleum and petrochemical, road traffic control automation
• Building automatic control system
• Oilfielf control automation
• Hydropower station control automation
