Specifications
Brand Name :
SINOHONE
Model Number :
HY-6624P
Certification :
ISO9001 CPR FCC CE RoHS
Place of Origin :
Sichuan, China
MOQ :
1 piece
Price :
USD 38~48/piece
Payment Terms :
L/C, T/T, MoneyGram, Western Union
Supply Ability :
50000 pieces per month
Delivery Time :
5-8 work days
Packaging Details :
Standard packing in sealed box or according to customers' requirements
Product Name :
Security Monitoring Switch
SFP 1000 M :
6 Port
Electric Port :
24 Ports
POE :
Support
Exchange Capacity :
256G
Mpps :
44.64 Mpps
Management :
Managed
PTN :
Support, protocol ERPS STP
Power Consumption :
Less than 30W
Description

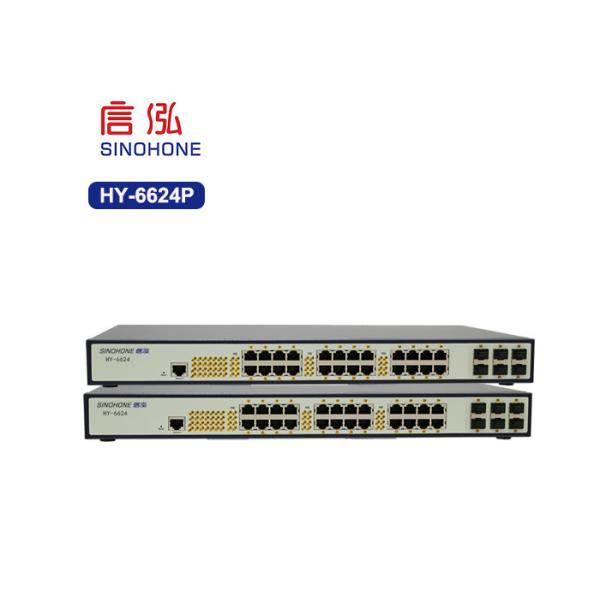

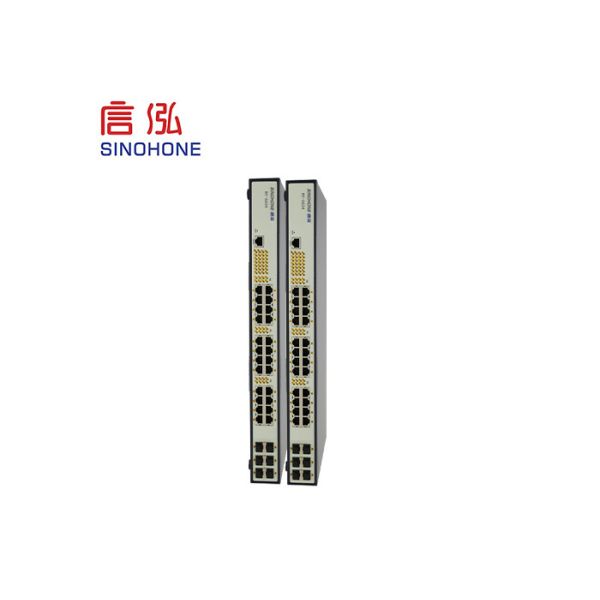

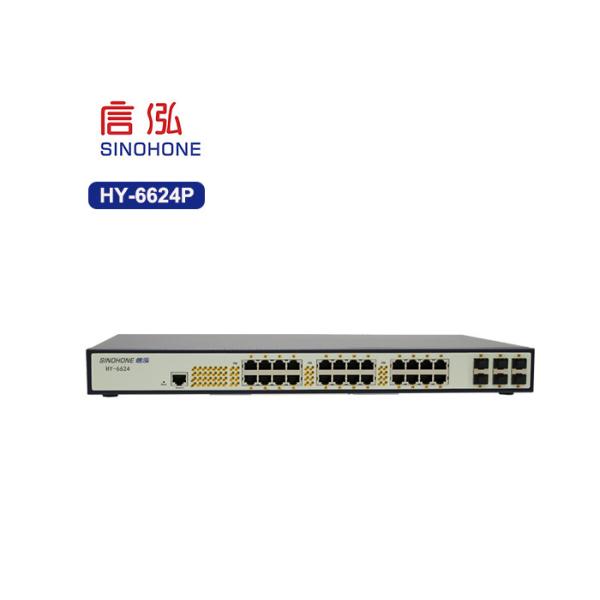

Management PoE RJ45 Port Security Switch Fiber Optic Network Switch 30 Ports Converter

Descriptions:

HY-6424P is perfect for senarios such as express way monitoring and supervisory control for its POE power supply and PTN ring network. 6 1000M SFP port and 24 1000M electric port, can achieve 256G exchange capacity and 35.7Mpps, which makes it a good choice for security switch.

Management:

  • Support CLI, Ethernet port, IPv4/IPv6 HTTP, IPv4/IPv6 FTP/TFTP, IPv4/IPv6 SNTP/NTP
  • It supports radius authentication of Telnet username and password of IPv4/IPv6, SSH of IPv4/IPv6, security IP security network management function, syslog of IPv4/IPv6, SNMPv1/v2c/v3, MIB interface and Trap.
  • Support RMON 1, 2, 3, 9 groups, dual IMG and multiple configuration files, support LLDP, support port mirroring, CPU mirroring, RSPAN and ERSPAN, support sFlow traffic monitoring, support Reset one-key restore, support zero-contact configuration*, support IEEE1588 time synchronization.
  • Information Centor, OAM, VSF

Power and Power Supply

No fan, low power consumption, total power consumption of equipment itself is less than 30W
AC input: default 220V:100V~260V

Application

  • Metallurgical, petroleum and petrochemical, road traffic control automation
  • Building automatic control system
  • Oilfielf control automation
  • Hydropower station control automation

Specifications:

Product Name Security Switch
Model No. HY-6624P
Exchange capacity 256G
Mpps 44.64 Mpps
Number of interference

Gigabit SFP ports (or specify other optical port forms): 6

Gigabit ports: 24
Management Support

Storage temperature

-40°C～85°C

Other Specifications:

  • Support port aggregation/LACP, support 1:1 port protection
  • Interport protection based on LACP protocol, linear protection based on G.8031 protocol and ring network protection based on G.8032 protocol are supported.
  • Support port redirection and port mirroring, support port-based barrier transfer function
  • Support MSTP/RSTP protocol
  • Supporting fibre breaking alarm; Supporting Dying Gasp remote device power failure alarm
  • Support on-line upgrade of equipment
  • Supporting storm suppression and port speed limit, speed limit particles up to 64K
  • Support on-line upgrade of equipment
  • Supporting SLA enables link performance testing such as link delay, jitter, packet loss and throughput
  • Support port-based, 802.1P, DSCP, TOS, MAC address, VLAN ID, Ethernet Type
