Single Mode SC Fiber Optic Pigtail Fiber Optic Patch Cord Subscriber Connector
Single Mode SC Fiber Optic Pigtail Fiber Optic Patch Cord Subscriber Connector
Single Mode SC Fiber Optic Pigtail Fiber Optic Patch Cord Subscriber Connector
Single Mode SC Fiber Optic Pigtail Fiber Optic Patch Cord Subscriber Connector
Single Mode SC Fiber Optic Pigtail Fiber Optic Patch Cord Subscriber Connector
Single Mode SC Fiber Optic Pigtail Fiber Optic Patch Cord Subscriber Connector
Single Mode SC Fiber Optic Pigtail Fiber Optic Patch Cord Subscriber Connector
Single Mode SC Fiber Optic Pigtail Fiber Optic Patch Cord Subscriber Connector
Specifications
Brand Name :
SINOHONE
Model Number :
Pigtail SC
Certification :
ISO9001 CPR FCC CE RoHS
Place of Origin :
Sichuan, China
MOQ :
2000 meters
Price :
USD $0.38~$0.58 / meter
Payment Terms :
L/C, T/T, MoneyGram, Western Union
Supply Ability :
500000 meters per month
Delivery Time :
5-8 work days
Packaging Details :
Standard packing in sealed box or according to customers' requirements
Product Name :
SC Connector Fiber Optic Pigtail
Length :
Customized
Sheath :
PVC LSZH
Application :
Single Mode
Quality control :
100% test before shipping
Real factory :
Yes
Ports :
Shanghai, Shenzhen, Qingdao, Ningbo, etc.
Description

Single Mode SC Fiber Optic Pigtail Fiber Optic Patch Cord Subscriber Connector

Quick Details:

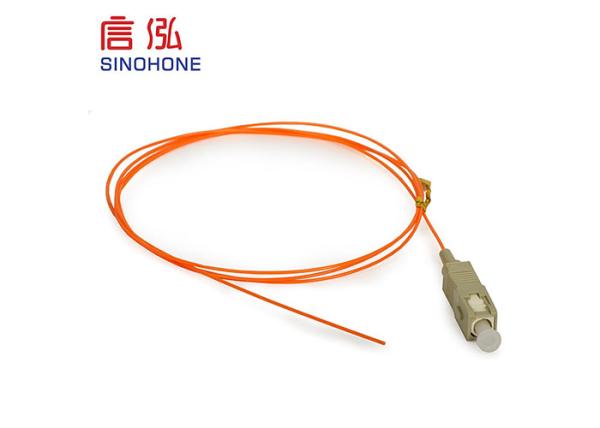

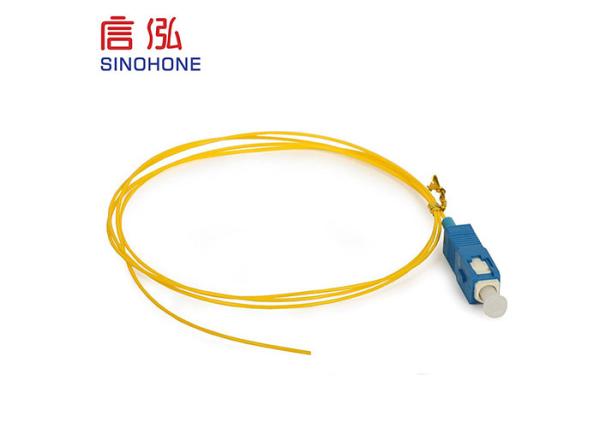

SC fiber patch cord / pigtail is a non-optical disconnect connector with a 2.5mm pre-radiused zirconia (or stainless alloy ferrule).

It features a snap-in (push-pull) connection design for quick patching of cables into rack or wall mounts. It is widely used in single mode applications for its excellent performance.

Two simplex SC patch cords can be clipped together by a reusable duplex holding clip to create a duplex SC patch cords.


Model Type Fiber Optic Pigtail with SC Connector
Features
  • Compliance with IEC, JIS, Telcordia
  • Push-pull, key-oriented coupling mechanism which allows highly repeatable, low-loss connections
  • Simplex, duplex, and multi-fiber assemblies available in standard and custom configurations
  • Single mode and Multimode
  • PC or APC finish
  • UL94V-O compatible resin housing and optional UL94V-O compatible resin boot is available
Applications
  • CATV
  • Metro
  • Active device termination
  • Test equipment
  • Telecommunication networks
  • Local Area Networks (LANs)
  • Data processing networks
  • Premise installations
  • Wide Area Networks (WANs)

Advantages:

  1. Our Fiber Patch Cord and Fiber Pigtail range offers choices of any length, connector types and either PVC or LSZH sheath.
  2. All of our cable assemblies are composed of our top quality Ceramic Ferrules and Fiber Connectors housings ensuring a stable performance at a high quality level.
  3. Besides standard Fiber Patch cord, we also offer other types of Fiber Patch cord assemblies, Armored fiber patch cord, Waterproof fiber pigtail for different applications.

Single Mode SC Fiber Optic Pigtail Fiber Optic Patch Cord Subscriber ConnectorSingle Mode SC Fiber Optic Pigtail Fiber Optic Patch Cord Subscriber Connector
