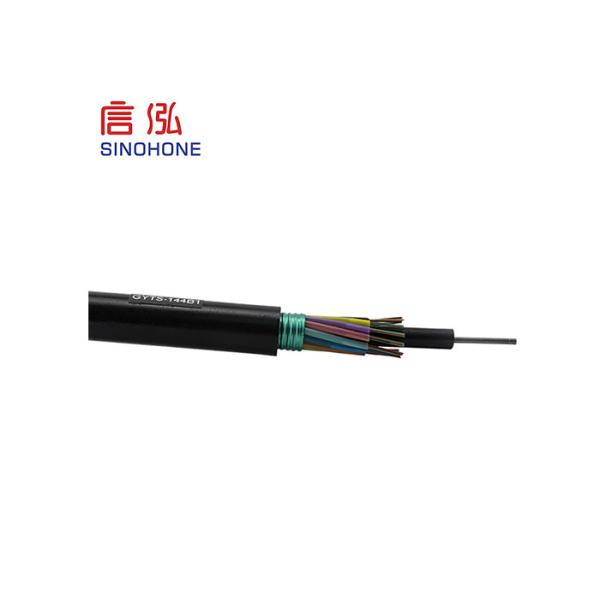

Armored Hybrid Fiber Power Cable Data Power Composite Electric Utilities
Armored Hybrid Fiber Power Cable Data Power Composite Electric Utilities
Specifications
Brand Name :
SINOHONE
Model Number :
OPGW
Certification :
CPR FCC CE RoHS ISO9001
Place of Origin :
Sichuan, China
MOQ :
2000 meters
Price :
USD $0.38~$0.58 / meter
Payment Terms :
L/C, D/P, T/T, D/A, Western Union, MoneyGram
Supply Ability :
500000 meters per month
Delivery Time :
5-8 work days
Packaging Details :
Standard packing in sealed box or according to customers' requirements
Product Name :
Hybrid Fiber Optic Cable
Fiber Count :
2 ~288 Fibers
Max. Crushing Resistance :
1000 N / 100 mm2
Temperature Range :
-40℃ ~ +70℃
Sheath :
AT Sheath
Design Life Span :
30 Years
Ports :
Shanghai, Ningbo, Qingdao, Shenzhen, etc.
OEM / ODM :
Available
Description


Data And Power Composite Cable Hybrid Fiber Power Cable Armored Electric Utilities



Description:

Sinohone hybrid fiber / power cable offers the nearly unlimited bandwidth of fiber optic connections in combination with power feeding in the same cable.

Typical applications for our hybrid cable are fiber to the antenna (FTTA) for cellular system, Wifi hotspots, sensor networks, surveillance cameras etc.


Applications:

  • For use by electric utilities on transmission lines in lieu of traditional shield wire
  • For retrofit applications where existing shield wire needs to be replaced with OPGW
  • For new transmission lines instead of traditional shield wire.
  • Voice, video, data transmission
  • SCADA networks
  • Dark fiber leasing


Characteristics:

  1. Can be installed without shutting off the power
  2. Excellent AT performance, The maximum inductive at the operating point of AT sheath can reach 25kV
  3. Light weight and small diameter reducing the load caused by ice and wind and the load on towers and backprops
  4. Large span lengths and the largest span is over 1000m
  5. Good performance of tensile strength and temperature
  6. The design life span is 30 years
  7. Working temperature: -40°C ~ +70°C


Specifications:

2-96 fibers 98-288fibers
Max. Tension (N) Short-term 1500 3000
Max. Tension (N) Long-term 600 1000
Max. Crushing Resistance (N/100mm2) 1000
Temperature range(°C) -40°C– +70°C
Min. Bending Radius(mm) Install 20D
Min. Bending Radius(mm) Static 10D
G.652 G.655 50/125μm 62.5/125μm
Attenuation @850nm ≤3.0 dB/km ≤3.0 dB/km
(+20℃) @1300nm ≤1.0 dB/km ≤1.0 dB/km
@1310nm ≤0.36 dB/km ≤0.40 dB/km
@1550nm ≤0.22 dB/km ≤0.23dB/km
Bandwidth (Class A) @850nm ≥500 MHz·km ≥200 MHz·km
@1300nm ≥1000 MHz·km ≥600 MHz·km
Numerical Aperture 0.200±0.015NA 0.275±0.015NA
Cable Cut-off Wavelengthλcc ≤1260nm ≤1480nm



Armored Hybrid Fiber Power Cable Data Power Composite Electric Utilities
