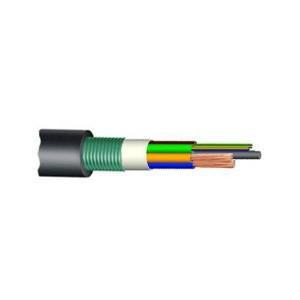

Optical Hybrid Fiber Power Cable , Single Mode Fiber Optic Cable Aluminum Tape Armour
Optical Hybrid Fiber Power Cable , Single Mode Fiber Optic Cable Aluminum Tape Armour
Specifications
Brand Name :
SINOHONE
Model Number :
Optical Hybrid Fiber Power Cable
Certification :
ISO,CE,UL,ROHS
Place of Origin :
Sichuan,China
MOQ :
1 METER
Price :
USD0.35~3.6/METERS
Payment Terms :
L/C, D/A, D/P, T/T, Western Union
Supply Ability :
1000 Kilometer/Kilometers per Week
Delivery Time :
5 Days
Packaging Details :
2km per wooden reel
Application :
Telecommunication,Trunk line,distribution
Installation :
underground, direct burial,duct,RRU
core :
24 CORE
Armour :
aluminum tape
Jacket :
PE
Conductor material :
Copper
Color :
Customized
Description

Optical Electric Composite Cable Single Mode Cable With Aluminum Tape Armour

Characteristics:

  • Excellent moisture, water-blocking performance;
  • Good mechanical performance and environmental properties.
  • Excellent Rodent resistance

Applications:

  • Construction of telecommunication network, construction of communication base stations in remote areas, such as rural and urban
  • Fiber to the home of Urban residential communication and the building;
  • Security monitoring project.

Standards: YD/T 2159

Temperature: Storage, transportation and Operating temperature: -40°C~+60°C

GDTS Ⅰ Structural Technical Parameters

The conductor cross-sectional area(㎡) Dimension (mm) Nominal Weight (kg/km) Permitted Crush (N) Bend Radius (mm)
Long term Short term Static state
4 15.3 325 300 1000 12.5D
6 16.5 425 300 1000 12.5D

GDTS Ⅱ Structural Technical Parameters

The conductor cross-sectional area(㎡) Dimension (mm) Nominal Weight (kg/km) Permitted Crush (N) Bend Radius (mm)
Long term Short term Static state
1.5 11.8 142 300 1000 12.5D
2.5 12.9 180 300 1000 12.5D

GDTS Ⅲ Structural Technical Parameters

The conductor cross-sectional area(㎡) Dimension (mm) Nominal Weight (kg/km) Permitted Crush (N) Bend Radius (mm)
Long term Short term Static state
6 16.4 183 300 1000 12.5D

Note:

  • D refers to the cable diameter;
  • The structural dimensions and materials used can be designed according to the demands of the customers
  • The block water way can be adjusted according to the customer' demands;
  • Outer sheath material is PE in general
  • GDTA is using aluminium tape instead of steel tape

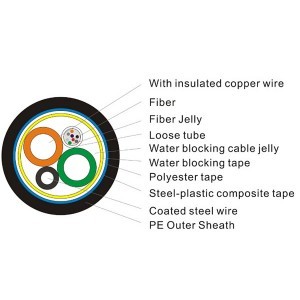

Optical Hybrid Fiber Power Cable , Single Mode Fiber Optic Cable Aluminum Tape Armour
