Specifications
Brand Name :
SINOHONE
Model Number :
Micro Blown Cable
Certification :
CPR FCC CE RoHS ISO9001
Place of Origin :
Sichuan, China
MOQ :
2000 meters
Price :
USD $0.38~$0.58 / meter
Payment Terms :
L/C, D/P, T/T, D/A, Western Union, MoneyGram
Supply Ability :
500000 meters per month
Delivery Time :
5-8 work days
Packaging Details :
Standard packing in sealed box or according to customers' requirements
Product Name :
Micro Blown Cable
Cable Type :
Layer Cable
Water Blocking Method :
FRP or PE Lining
Sheath Material :
HDPE
Cable Service Life (Estimate Value) :
25 Years
Ports :
Shanghai, Shenzhen, etc.
Description

High Fiber Density Micro Blown Air Blown Fiber Optic Cable Optimum Cable Structure

Features and Benefits

  • Optimum cable structure, high fibre density.
  • Accurate fibre length balance, ensure stable performance.
  • No gel in cable core for water blocking, low carbon and environmental.
  • Structure Innovation in sheath, enhancing the blowing performance.

Standards


Unless otherwise specified in this specification, all requirements shall be mainly in accordance with the following standard specifications.
Optical fibre …..ITU-T G.652D,G657,IEC 60793-2-50 Optical cable ….IEC 60794-5,IEC 60794-1-2

Technical Index

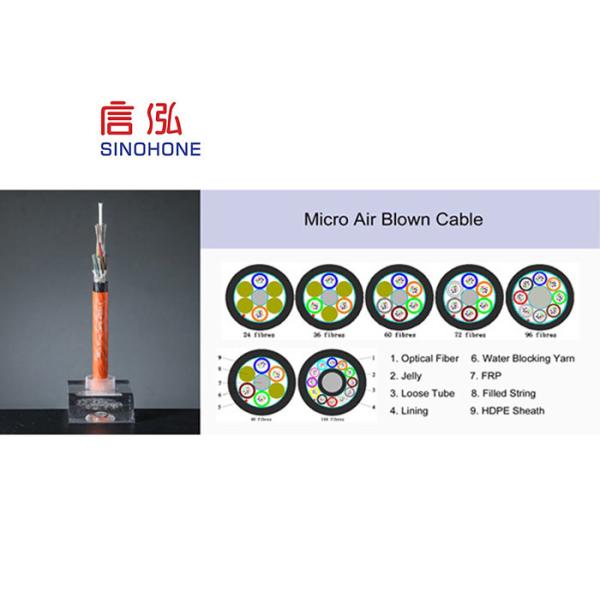

Cable Type Layer Cable
Fibre Count 12 24 36 48 60 72 96 144
Number of loose tube 1 2 3 4 5 6 8 12
Number of filled string 5 4 3 2 1 0 0 0
Number of fiber/tube 12
Water blocking method FRP or PE Lining Water Blocking yarn
Cable Core Water Blocking yarn
Thickness of HDPE sheath Nominal: 0.50mm, Average: 0.45mm, Minimum: 0.40mm
Overall Diameter 5.6±0.1 mm 6.4±0.1 mm 7.8±0.1 mm
Weight 27 kg/km 40 kg/km 55 kg/km
Max. Tensile Strength 500N 1000N 1000N
Max. Crushing Resistance 800N/100mm
Min. Bending radius -Static 12 outer Φ
-Dynamic 20 outer Φ
Cable Fiber Attenuation (single mode) 0.35dB/km max @1310nm 0.22dB/km max @1550nm
Temperature range Storage -40～＋70℃； Installation -10～＋40℃； Operation -40～＋70℃
Cable service life (estimate value) 25 years

Testing Idex Blowing Performance

Blowing Tool Typical blowing length
PLUMETTAZ:PR-140, MiniJet-400 etc. Air pressure : 15bar Fiber Count Duct type 8.0/10.0mm Duct type 10.0/12.0mm
12~72 fibers ≥ 1800m ≥2300m
96 Fibers ≥1800m ≥2300m
144 fibers / ≥1200m

Mechanical Performance

Item Testing Method Testing Results Specified Value
Tension performance IEC 60794-1-2-E1 Short term: Da <0.10 dB, Da reversible; Long term: Da ≤0.03 dB； Short term: see technical index Long term = 0.5 Short term
Crush IEC 60794-1-2-E3 Short term: Da <0.10 dB, Da reversible; Long term: Da ≤0.03 dB； The outer sheath has no visible crack. Short term crushing force =800 N Long term crushing force =400 N
Repeated bending IEC 60794-1-2-E6 After test, Da ≤0.03 dB； The outer sheath has no visible crack. R=20 outer Φ
Bending load =50N
Bending times =30
Torsion IEC 60794-1-2-E7 After test, Da ≤0.03 dB； The outer sheath has no visible crack. Torsion angle=±180º
Torsion load =50N
Torsion times =10
Cable bend IEC 60794-1-2-E11A After test, The optical fiber can’t be broken； The outer sheath has no visible crack. R=20 outer Φ
10Turns
Cycles times =5

Environment Performance

Item Testing Method Testing Results
Temperature cycling IEC 60794-1-2-F1 Allowable additional attenuation (1550nm)
G.652D/G657
Da ≤0.05 dB/km, Da reversible；
Water penetration IEC 60794-1-2-F5B Water column: 1m, 3m cable, Period:24 hours
Filling compound flow IEC 60794-1-2-E14 70℃,Period:24 hours
