Specifications
Brand Name :
SINOHONE
Model Number :
Outdoor Fiber Optic Cable
Certification :
ISO,CE,UL,ROHS
Place of Origin :
Sichuan,China
MOQ :
1 METER
Price :
USD0.35~3.6/METERS
Payment Terms :
Western Union, T/T, D/P, D/A, L/C
Supply Ability :
1000 Kilometer/Kilometers per Week
Delivery Time :
5 days
Packaging Details :
2km per wooden reel
Product name :
Outdoor Fiber Optic Cable Rolling
Working Temperature :
-40°C~+85°C
Number of Conductors :
≥ 10
Application :
FTTH FTTB FTTX Network
Jacket Material :
HDPE
Packing :
Wooden
Description


FTTH Outdoor Fiber Optic Cable Rolling Self-Supporting Applications Cable 1KM Price

Description:

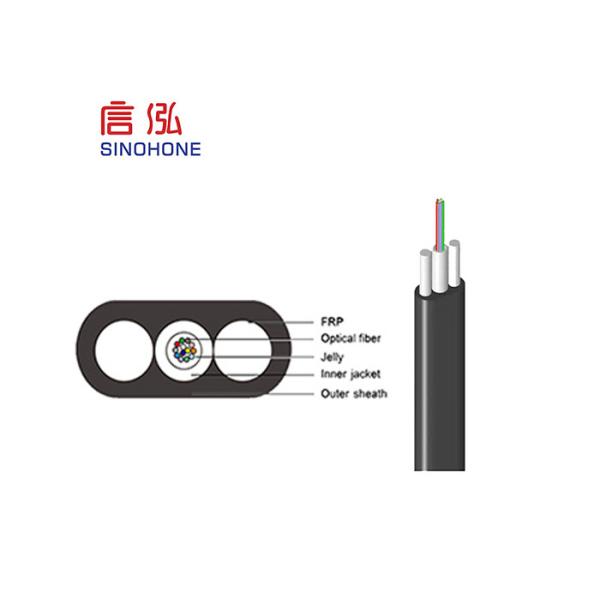

FTTH indoor cable consists of optical communication unit, strength member and outer sheath. Optical communication unit includes fibers or tight buffer fibers, etc. Metallic or non-metallic strength member will be used according to the demands of the customers.


ItemFTTH Self-supporting Indoor Network Cabel
Applications

Access network​
Fiber to the Home(FTTH)

Standards

YD/T1997

Temperature

Operating temperature: -40°C~+60°C
Storage, transportation and installation temperature: -5°C~+50°C



Characteristics:

  • Special low sensitivity of bending fiber provides higher bandwidth and realizes the integration of internet network, CATV network and telephone network;
  • Two parallel strength members protect fibers and ensure excellent performance of crush and tensile strength.
  • Simple structure, lighter and good practicability
  • Unique gouge design, strip and simplify installation and maintenance;
  • Low smoke zero halogen sheath environment friendly.

Technical Parameters

Fiber CountDimension(mm)Weight (kg/km) *FRP/#Permitted Tensile(N)Permitted Crush(N)Bending Radius(mm)
Long termShort termLong termShort termStaticDynamic
Single or double fibers(2.0±0.2)*(5.0±0.2)*18.0408050010001530
#19.510020010002200
Three or four fibers(2.0±0.2)*(5.1±0.2)*19.0408050010001530
#21.010020010002200
Single fiber tight buffer(2.0±0.2)*(5.6±0.2)*23.0408050010001530
#26.010020010002200


Note:

  • The structure dimension, mechanical performance and material can be designed according to the demands of the customers.
  • The weight of non-metallic cable #:the weight of the metallic cable.


FTTH 1 Km Fiber Optic Cable , Fiber Optic Network Cable High DurabilityFTTH 1 Km Fiber Optic Cable , Fiber Optic Network Cable High Durability
