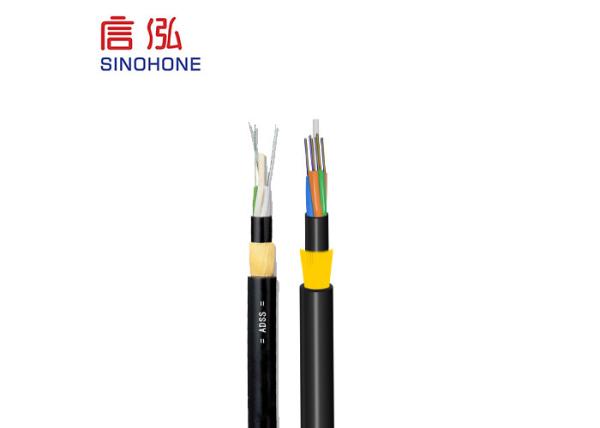

Aerial Self Supporting ADSS Fiber Optic Cable Uni Tube Low Dispersion
Aerial Self Supporting ADSS Fiber Optic Cable Uni Tube Low Dispersion
Specifications
Brand Name :
SINOHONE
Model Number :
ADSS
Certification :
ISO9001 CPR FCC CE RoHS
Place of Origin :
Sichuan, China
MOQ :
2000 meters
Price :
USD $0.38~$0.58 / meter
Payment Terms :
L/C, T/T, MoneyGram, Western Union
Supply Ability :
500000 meters per month
Delivery Time :
5-8 work days
Packaging Details :
Standard packing in sealed box or according to customers' requirements
Product Name :
ADSS Fiber Optic Cable
Fiber No :
4 - 72 Fibers
Life Expectancy :
30 Years
Loose Tube Diameter :
2.0 mm
FRP Strength Member Diameter :
2.1 mm
Application :
Aerial, Power system
Fiber Type :
G652D
Loose Tube Material :
PBT
Description

Aerial Self-supporting ADSS Fiber Optic Cable Uni-tube And Layer Stranded

Description:

Sinohone ADSS is ideal for installation in distribution as well as transmission environments, even when live-line installations are required. s its name indicates, there is no support or messenger wire required, so installation is achieved in a single pass, making ADSS an economical and simple means of building a fiber optic network. Sinohone manufactures its own line of fiber optical system which simplifies the network design phase of a project while ensuring compatibility between the cable and related components.

Its a non-metallic cable which supports its own weight without the use of lashing wires or messenger cables, typically installed in overhead applications along power distributuin or transmission rights-of -way.


Product Features:

  • Low optical fiber transmission loss and low dispersion.
  • Endow cables with excellent mechanical properties and environmental performance due to reasonable design and precise control over excess length of optical fibers in loose tube and cabling mode.
  • Keep structure compact, and protect the cable from stress under hostile environment by use of SZ stranded structure.
  • Fill waterproof cable gel outside the reinforcer and inside cores, ensuring its moisture proof and water proof effect.
  • Provide more excellent moisture proof effect as well as bullet proof function as the cores are wrapped longitudinally by steel tape.
  • The steel strand as the self supporting member meets the higher tensile strength.

Advantages:

  1. Good aramid yarn have excellent tensile performance
  2. Fast delivery, 200km ADSS cable regular production time about 10 days.
  3. Glass yarn is available instead of aramid yarn, to prevent mouse bite.

Laying Method Aerial
Applicable Temperature

-40℃~+70℃
Standards
  • IEC60794-1
  • DL/T788
  • YD/T980
Applications
  • Area with lighting strik
  • High voltage transmission system
  • Aerial
  • Long-distance communication
  • Inter office communication

ADSS Cable Construction Parameter ADSS Optical Fiber Parameter
No. of fibers 4-72fibers Fiiber Type G652D
FRP Strength Member Diameter 2.1 mm Mode Field Diameter 8.6～9.5±0.7μm
Loose Tube Diameter 2.0 mm Cladding Diameter 125 ± 1μm
Out Sheath Diameter 1.8 mm Cladding Non-Circularity: ≤ 1%
Loose Tube Material PBT Coating Diameter 245 ± 10μm
Filling compound (Tube) Thixotropic Jelly Attenuation Coefficient ≤ 0.36dB/km at 1310nm, ≤ 0.22dB/km at 1550nm
Water Blocking Water Swell able Material Chromatic Dispersion ≤3.5ps/nm/km at 1285~1330nm, ≤18ps/nm/km at 1550nm
Outer sheath material Anti-tracking for 35-110kv voltage Zero Dispersion Wavelength 1300~1322nm


Technical Parameters

Fiber cores

Outer diameter of optical cable (mm)

Weight of optical cable (kg/km)

Minimum bending radius (mm)

Allowable minimum tensile strength (N)

Allowable minimum crush resistance (N/100mm)

Static

Dynamic

Short-term

Long-term

Short-term

Long-term

2~36

11.8

275

120

240

8000

6000

3000

1000

38~72

13.4

311

140

280

8000

6000

3000

1000


Note:

  1. Data in the table described may take as reference, it was calculated on the conditions, such as zero height difference and assume the sag value is 1-1.2%.
  2. To design the structure of the cable according to the concrete situations, climate and the customer's demands.
  3. Cable core can be designed dry structure according to customer's demands.
