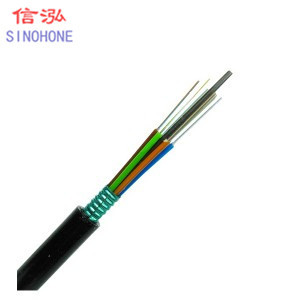

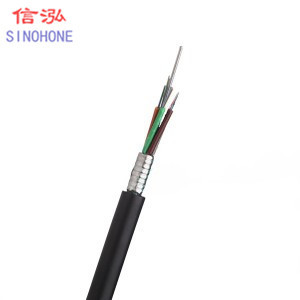

Single Mode Outdoor Armored Fiber Optic Cable Black 12 Core Water Blocking
Single Mode Outdoor Armored Fiber Optic Cable Black 12 Core Water Blocking
Single Mode Outdoor Armored Fiber Optic Cable Black 12 Core Water Blocking
Single Mode Outdoor Armored Fiber Optic Cable Black 12 Core Water Blocking
Specifications
Brand Name :
SINOHONE
Model Number :
GYTS54
Certification :
ISO, CE, UL, ROHS
Place of Origin :
Sichuan, China
MOQ :
2000 METER
Price :
USD0.35~3.6/METERS
Payment Terms :
Western Union, T/T, D/P, D/A, L/C
Supply Ability :
1000 Kilometer/Kilometers per Week
Delivery Time :
5 days
Packaging Details :
2km per wooden reel
Product name :
ADSS Single Mode Optical Fiber Cable
Packing :
Wooden
Fiber count :
2-12CORE
Application :
Cabling System
Color :
Black
LIife time :
More than 20 years
Description

Single Mode Outdoor Optical Fiber Cable 12 core Fiber Optic Cable ADSS

Description:

Sinohone GYTS is the outdoor fiber optic cable type used for duct and aerial applications. We supply single mode GYTS fiber optical cable and multimode GYTS fiber optic cable, fiber strand from 2 cores to 432 cores. GYTA related type cable is also available.

Characteristics:


Steel tape armored. steel wire armouring;
Double armored, double PE sheath and nylon sheath to protect the fiber from damage;
Compact structure, excellent water-blocking performance;
Strict manufacturing processes;
Good mechanical performance and temperature performance.

Applications:

  • Buried, duct, aerial
  • Rodent-infested areas
  • Core network, metropolitan area network and access network etc.

Standards:
YD/T901-2009
IEC60794-1

Temperature:
Operating temperature: -40°C~+70°C

Technical Parameters

Fiber Count Structure Diameter(mm) Weight (kg/km) nsile(N) Crush(N) Bending Radius(mm)
2-30 1+5 13.7 185 Long term Short term Long term Short term Static Dynamic
600 1500 1000 3000 12.5D 25D
2-30 1+5 13.7 185 600 1500 1000 3000 12.5D 25D
38-60 1+5 14.3 200 600 1600 1000 3000 12.5D 25D
62-72 1+6 15 230 1000 3000 5000 3000 12.5D 25D
74-84 1+7 15.7 250 1000 3000 1000 3000 12.5D 25D
86-96 1+8 16.4 168 1000 3000 1000 3000 12.5D 25D
98-108 1+9 17 286 1000 3000 1000 3000 12.5D 25D
110-120 1+10 17.6 305 1000 3000 1000 3000 12.5D 25D
122-132 1+11 18.2 325 1000 3000 1000 3000 12.5D 25D
134-144 1+12 19.1 350 1000 3000 1000 3000 12.5D 25D

Note:

  • D refers to the cable diameter;
  • The relevant technical Parameters can be adjusted according to the customer's demands;
  • To design flame resistance, anti-rodent, termite resistant cable according to customer's demands.

Single Mode Outdoor Armored Fiber Optic Cable Black 12 Core Water BlockingSingle Mode Outdoor Armored Fiber Optic Cable Black 12 Core Water Blocking
