Parallel Steel Wire Armored Fiber Optic Cable For Rural Area Communications
Parallel Steel Wire Armored Fiber Optic Cable For Rural Area Communications
Parallel Steel Wire Armored Fiber Optic Cable For Rural Area Communications
Parallel Steel Wire Armored Fiber Optic Cable For Rural Area Communications
Parallel Steel Wire Armored Fiber Optic Cable For Rural Area Communications
Parallel Steel Wire Armored Fiber Optic Cable For Rural Area Communications
Specifications
Brand Name :
SINOHONE
Model Number :
GYXTW
Certification :
RoHS ISO9001 CPR FCC CE
Place of Origin :
Sichuan, China
MOQ :
2000 meters
Price :
USD $0.38~$0.58 / meter
Payment Terms :
L/C, D/P, T/T, D/A, Western Union, MoneyGram
Supply Ability :
500000 meters per month
Delivery Time :
5-8 work days
Packaging Details :
Standard packing in sealed box or according to customers' requirements
Product Name :
Rural Communication Cable
Structure :
Central tube, parallel steel wire, corrugated steel tape armoring
Tube :
Loose tube
Advantages :
Excellent moisture, water-blocking performance
Application :
Duct, aerial
Operating temperature :
Operating temperature: -40°C~+70°C
Amoring :
Armored Steel Tape
Strength Member :
Steel Wire Stiffener
Description

Parallel Steel Wire Armored Fiber Optic Cable For Rural Area Communications

Description:

Sinohone GYTXW fiber optic cable is a type of fiber cable that is widely ised in aerial application. It has been praised due to its exceptional performance in long distance symmetric role.

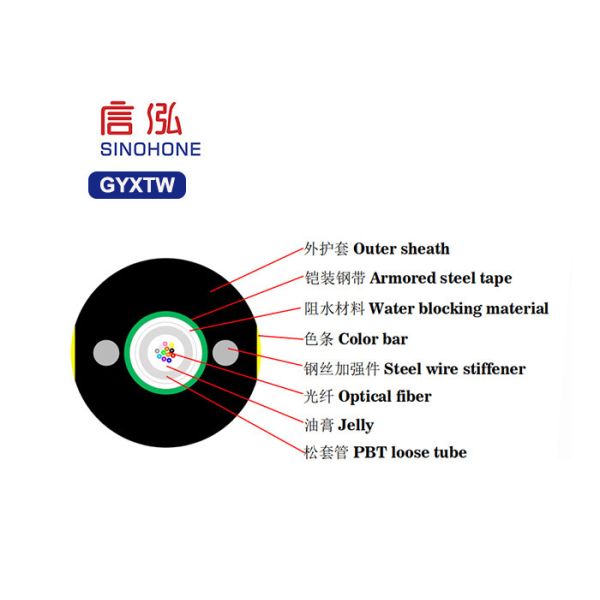

Structure:

  1. Structure with central tube, parallel steel wire, corrugated steel tape armoring;
  2. Small diameter, lighter, easy installation.
  3. Loose tube material has good hydrolysis resistance performance and high strength;
  4. Excellent moisture, water-blocking perfomance;
  5. Glass yarn strength member improve the mechanical properties, and can also prevent ant bites.
  6. Good mechanical performance and environmental properties.

Applications Duct, aerial
Access network, FTTH
Standards YD/T901-2009
IEC60794-1
Temperature Operating temperature: -40°C~+70°C


Technical Parameters

Fiber Count

Diameter(mm)

Weight (kg/km)

Tensile(N)

Crush(N)

Bending Radius(mm)

Long term

Short term

Long term

Short term

Static

Dynamic

2~12

8.5

75

600

1500

300

1000

10D

20D

2~12

9.1

100

1000

3000

1000

300

10D

20D

24

9.5

110

600

1500

300

1000

10D

20D

Note:

  1. D refers to the cable diameter;
  2. The relevant technical Parameters can be adjusted according to the customer’s demands;
  3. The block water way can be adjusted according to the customer’ demands;
  4. To design flame resistance, anti-rodent, termite resistant cable according to customer’s demands.

Parallel Steel Wire Armored Fiber Optic Cable For Rural Area CommunicationsParallel Steel Wire Armored Fiber Optic Cable For Rural Area Communications
