Specifications
Brand Name :
SINOHONE
Model Number :
GYTY53
Certification :
CPR FCC CE RoHS ISO9001
Place of Origin :
Sichuan, China
MOQ :
2000 meters
Price :
USD $0.38~$0.58 / meter
Payment Terms :
L/C, D/P, T/T, D/A, Western Union, MoneyGram
Supply Ability :
500000 meters per month
Delivery Time :
5-8 work days
Packaging Details :
Standard packing in sealed box or according to customers' requirements
Product Name :
Outdoor Layer Stranded Optical Cables for Telecommunications
Structure :
Loose Tube
Strength :
Metal Strength Member
Inner Sheath :
PE
Adhesive Sheath :
Steel-polyethylene
Armoring :
Corrugated Steel Tape Armoring
Standards :
YD/T901-2009 IEC60794-1
Operating Temperature :
-40°C~+70°C
Description

GYTY53 Armor Buried Fiber Outdoor Layer Stranded Optical Cables For Telecommunications​

Description:

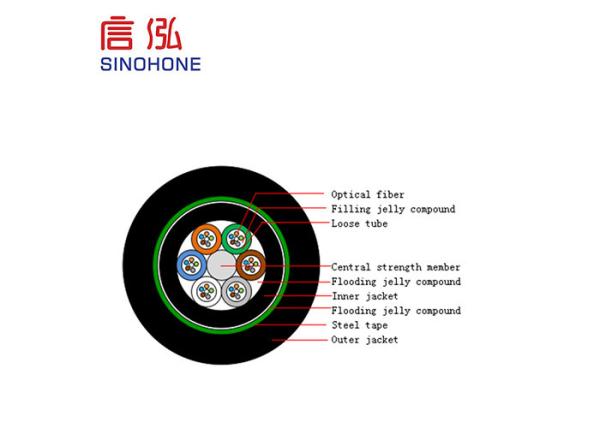

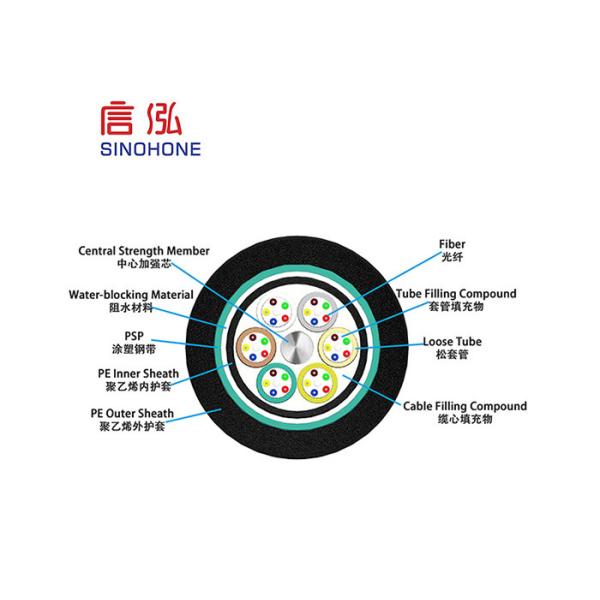

Loose tube stranding, Metal strength member, Flooding jelly compound, PE inner sheath, Steel-polyethylene adhesive sheath.

Characteristics:

  1. Corrugated steel tape armoring, loose tube stranding with single sheath;

  2. Loose tube material has good hydrolysis resistance performance and high strength;

  3. Compact structure, excellent water-blocking perfomance;

  4. Strict manufacturing processes;

  5. Good mechanical performance and environmental properties.

Applications:


Buried, duct, aerial
Relay communication system
Core network, Metropolitan area network and access network etc.

Standards:


YD/T901-2009
IEC60794-1

Temperature:


Operating temperature: -40°C~+70°C

Technical Parameters

Fiber Count Structure Diameter(mm) Weight (kg/km) Tensile(N) Crush(N) Bending Radius(mm)
Long term Short term Long term Short term Static Dynamic
2-36 1+6 11.7 91 1000 3000 1000 3000 12.5D 25D
38-72 1+6 12.5 107 1000 3000 1000 3000 12.5D 25D
74-84 1+7 13.6 122 1000 3000 1000 3000 12.5D 25D
86-96 1+8 14.3 134 1000 3000 1000 3000 12.5D 25D
98-108 1+9 14.9 146 1000 3000 1000 3000 12.5D 25D
110-120 1+10 15.5 158 1000 3000 1000 3000 12.5D 25D
122-132 1+11 16.1 170 1000 3000 1000 3000 12.5D 25D
134-144 1+12 16.8 185 1000 3000 1000 3000 12.5D 25D
146-216 1+6+12 17.1 193 1000 3000 1000 3000 12.5D 25D
218-288 1+9+15 19.1 237 1000 3000 1000 3000 12.5D 25D

Note:

  • D refers to the cable diameter;
  • The relevant technical Parameters can be adjusted according to the customer’s demands;
  • The block water way can be adjusted according to the customer’ demands;
  • To design flame resistance, anti-rodent, termite resistant cable according to customer’s demands.
