Central Tube Ribbon Fiber Optic Cable , Outdoor Multimode Fiber Optic Cable
Central Tube Ribbon Fiber Optic Cable , Outdoor Multimode Fiber Optic Cable
Central Tube Ribbon Fiber Optic Cable , Outdoor Multimode Fiber Optic Cable
Central Tube Ribbon Fiber Optic Cable , Outdoor Multimode Fiber Optic Cable
Central Tube Ribbon Fiber Optic Cable , Outdoor Multimode Fiber Optic Cable
Central Tube Ribbon Fiber Optic Cable , Outdoor Multimode Fiber Optic Cable
Specifications
Brand Name :
SINOHONE
Model Number :
GYDXTS
Certification :
CPR FCC CE RoHS ISO9001
Place of Origin :
Sichuan, China
MOQ :
2000 meters
Price :
USD $0.38~$0.58 / meter
Payment Terms :
L/C, D/P, T/T, D/A, Western Union, MoneyGram
Supply Ability :
500000 meters per month
Delivery Time :
5-8 work days
Packaging Details :
Standard packing in sealed box or according to customers' requirements
Product Name :
Central Tube Type Ribbon Optical Cable
Cable Type :
Central Tube
Armoring :
Corrugate Steel Tape Armored
Operating Temperature :
-40°C~+70°C
Fiber Count :
Up to 216 Fibers
Installation :
Duct, Aerial
Port :
Shanghai, Shenzhen, Ningbo, etc.
OEM / ODM :
Accept
Description

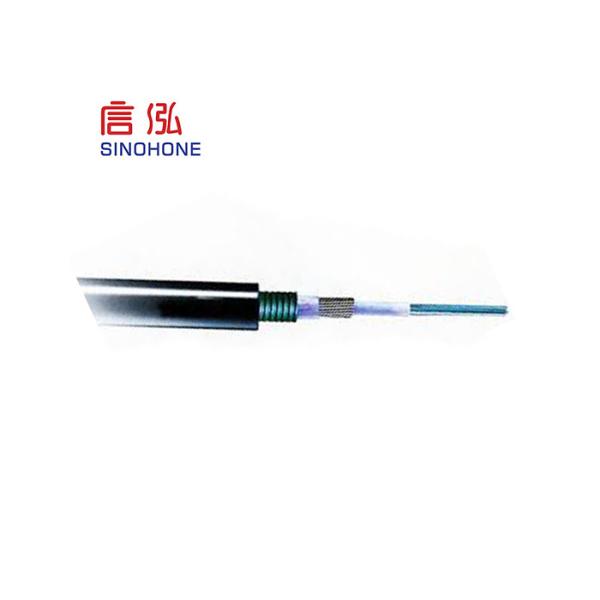

Central Tube GYDXTS Ribbon Cable Outdoor Fiber Optic Cable Armored Multi-mode Cabling

Characteristics:

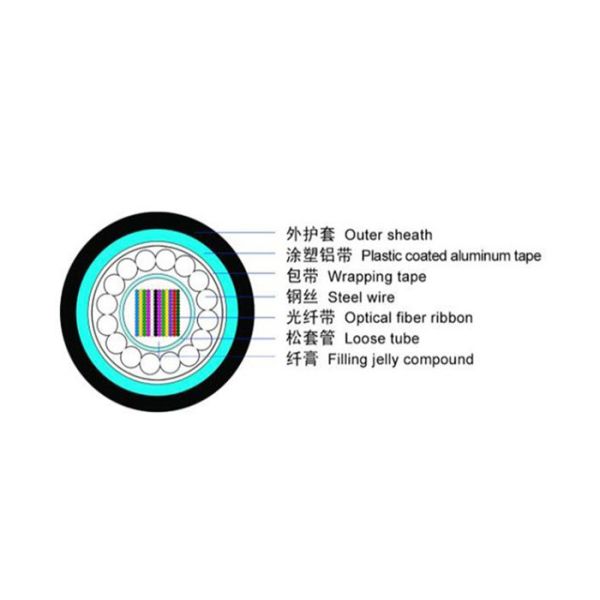

  1. Central tube, steel wires, corrugated steel tape armored structure;
  2. The concentration of the fibers is high, the diameter of the optical fiber cable is smaller, so the weight is lighter.
  3. Excellent tensile strength and side-press resistance;
  4. Excellent moisture, water-blocking performance;
  5. Good mechanical performance and environmental properties.

Applications Duct, aerial
Distribution line and feeder line of outdoor for access network
Standards YD/T901-2009
IEC60794-1
Temperature Operating temperature: -40°C~+70°C

Technical Parameters

Fiber Count Diameter(mm) Weight (kg/km) Tensile(N) Crush(N) Bending Radius(mm)
Long term Short term Long term Short term Static Dynamic
36-48/12F 13.0 130 600 1500 300 1000 10D 20D
60-72/12F 14.1 158 600 1500 300 1000 10D 20D
84-96/12F 14.9 175 600 1500 300 1000 10D 20D
108-120/12F 15.7 190 600 1500 300 1000 10D 20D
132-144/12F 16.3 205 600 1700 300 1000 10D 20D
156-168/12F 16.8 220 600 1800 300 1000 10D 20D
180-192/12F 17.6 235 600 1900 300 1000 10D 20D
204-216/12F 18.0 248 600 2000 300 1000 10D 20D

Central Tube Ribbon Fiber Optic Cable , Outdoor Multimode Fiber Optic CableCentral Tube Ribbon Fiber Optic Cable , Outdoor Multimode Fiber Optic Cable
