Optical Armored Fiber Optic Cable Steel Wire Flame Resistance Environment Friendly
Optical Armored Fiber Optic Cable Steel Wire Flame Resistance Environment Friendly
Optical Armored Fiber Optic Cable Steel Wire Flame Resistance Environment Friendly
Optical Armored Fiber Optic Cable Steel Wire Flame Resistance Environment Friendly
Optical Armored Fiber Optic Cable Steel Wire Flame Resistance Environment Friendly
Optical Armored Fiber Optic Cable Steel Wire Flame Resistance Environment Friendly
Optical Armored Fiber Optic Cable Steel Wire Flame Resistance Environment Friendly
Optical Armored Fiber Optic Cable Steel Wire Flame Resistance Environment Friendly
Specifications
Brand Name :
SINOHONE
Model Number :
GYXTS
Certification :
ISO9001 CPR FCC CE RoHS
Place of Origin :
Sichuan, China
MOQ :
2000 meters
Price :
USD $0.38~$0.58 / meter
Payment Terms :
L/C, D/P, T/T, D/A, Western Union, MoneyGram
Supply Ability :
500000 meters per month
Delivery Time :
5-8 work days
Packaging Details :
Standard packing in sealed box or according to customers' requirements
Product Name :
Outdoor Fiber Optic Cable GYXTS
Fiber Count :
2~12 fibers
Weight :
130 kg / km
Static Bending Radius :
10D
Dynamic Bending Radius :
20D
Application :
Telecommunication,Telecom,Network
Fiber type :
single mode or multi mode
Oem :
Available
Description

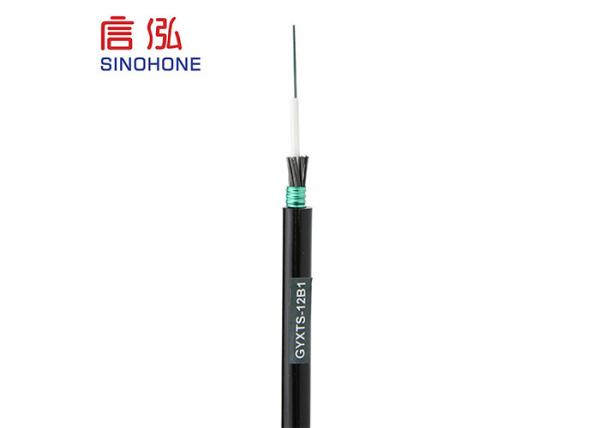

GYXTS Steel Wire Armored Outdoor Fiber Optic Cable Single Mode Optical Cabling


Characteristics:

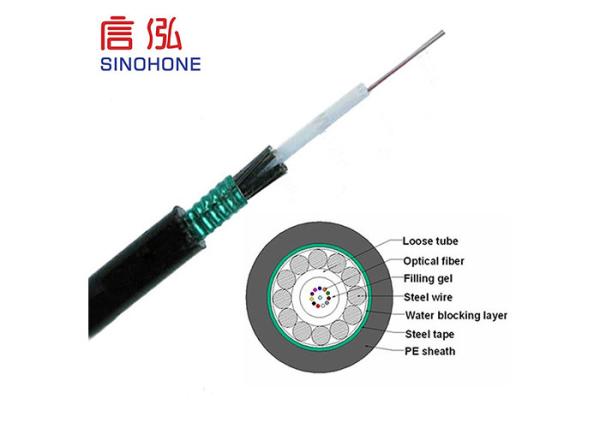

  • Central tube, steel wires and steel tape armoring single sheath structure.
  • Small diameter, lighter, easy installation.
  • Excellent moisture, water-blocking perfomance;
  • Anti-gunnery and anti-rodent.
  • Good mechanical performance and environmental properties.


Applications

Buried, aerial
Relay communication system
Standards

YD/T901-2009
IEC60794-1
Operating temperature -40°C~+70°C


Technical Parameters

Fiber Count Diameter(mm) Weight (kg/km) Tensile(N) Crush(N) Bending Radius(mm)
Long term Short term Long term Short term Static Dynamic
2~12 9.5 130 1000 3000 1000 3000 10D 20D



Note:

  1. D refers to the cable diameter;
  2. The relevant technical Parameters can be adjusted according to the customer’s demands;
  3. The block water way can be adjusted according to the customer’ demands;
  4. To design flame resistance, anti-rodent, termite resistant cable according to customer’s demands.
  5. The structure of GYXTA is aluminium tape, PE sheath, other construction is the same as the items described.
