Splitters / Couplers / PLC Splitters

A fiber optic splitter is a device that splits the fiber optic light into several parts by a certain ratio. For example, when a beam of fiber optic light transmitted from a 1X4 equal ratio splitter, it will be divided into 4-fiber optic light by equal ratio that is each beam is 1/4 or 25% of the original source one.

A fiber optic splitter is different from WDM. WDM can divide the different wavelength fiber optic light into different channels. fiber optic splitter divide the light power and send it to different channels.

Most Splitters available in 900µm loose tube and 250µm bare fiber. 1x2 and 2x2 couplers come standard with a protective metal sleeve to cover the split. Higher output counts are built with a box to protect the splitting components

Features of Fibertronics Splitters Couplers:

Comes in Singlemode, Multimode 62.5, and Multimode 50 Fiber Modes

Built with either 900µm loose tube fiber or 250µm bare fiber

Available unconnectorized or with any fiber optic connector or combination: LC, LC/APC, SC, SC/APC, FC, FC/APC, and ST

1x2 and 2x2 available in many split ratios including: 50/50, 40/60, 30/70, 20/80, 10/90, 5/95, 1/99, 60/40, 70/30, 80/20, 90/10, 95/5, and 99/1

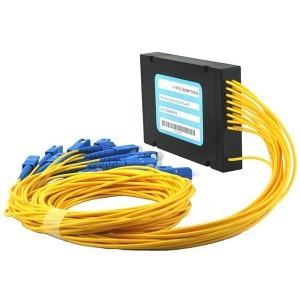

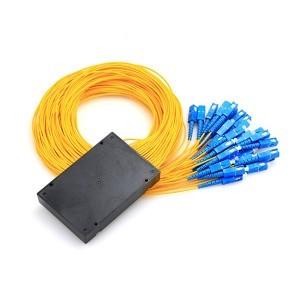

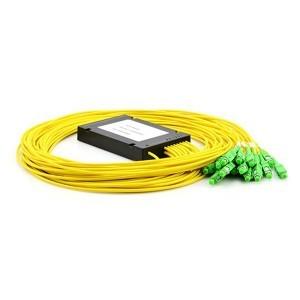

ABS PLC Splitter Boxes / Modules

Fibertronics offers a wide selection of splitter boxes and modules including Ruggedized ABS box PLC Splitters with a variety of options.

PLC Splitters

PLC (Planar Lightwave Circuit) Splitters are Single Mode Splitters with an even split ratio from one input fiber to multiple output fibers. Available split counts are: 1x4, 1x8, 1x16, and 1x32.

Single Mode Dual Window Couplers

Singlemode Dual Window Couplers are Single Mode Splitters with a defined split ratio from one or two input fibers to 2 output fibers. Available split ratios are: 50/50, 40/60, 30/70, 20/80, 10/90, 5/95, 1/99, 60/40, 70/30, 80/20, 90/10, 95/5, and 99/1

Multimode Couplers

Multimode Fiber Optic Couplers are Multimode Splitters with either 62.5µm or 50µm fiber core size and a defined split ratio from one or two input fibers to 2 output fibers. Available split configurations are 1x2 and 2x2 with split ratios of: 50/50, 90/10, and others.
