Product Name :
12 Cores Fiber Optical Patch Panel
Standards :
YD/T925—1997 Standard
Structure :
cold rolling steel sheet Strong adhesive force
Entrance :
sealed with oil resistance NBR
Capacity :
12 Cores
Port :
Shanghai, Shenzhen, Qingdao, Ningbo etc.
Description

12 Core Optical Fiber Patch Panel For Optical Fiber Distribution Frame Rack And Wall Mounted


Descriptions

A patch panel, patch bay, patch field or jack field is a device or unit featuring a number of jacks, usually of the same or similar type, for the use of connecting and routing circuits for monitoring, interconnecting, and testing circuits in a convenient, flexible manner. Patch panels are commonly used in computer networking, recording studios, radio and television.


Structural features

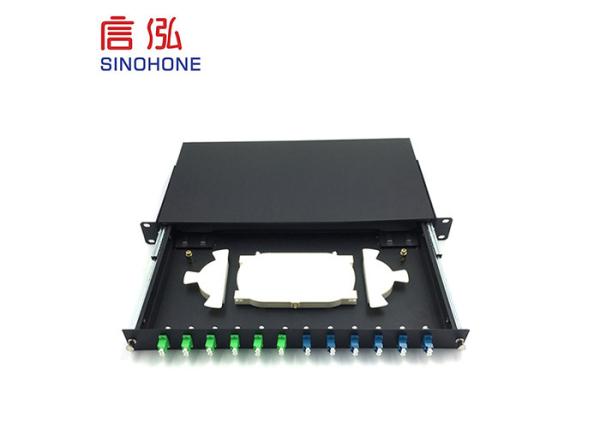

Product Name 12 Cores Fiber Optical Patch Panel
Standards All property indexes are in accordance with National YD/T925—1997 Standard
Body The body make use of cold rolling steel sheet Strong adhesive force, artistic and durable
Design Distinctive design of 1-4 cable entrance and fiber exit of 1-48 cores assures flexibility
Cable entrance Cable entranceare sealed with oil resistance NBR to increase the flexibility. Users can choose to prick the entrance and exit
Capacity Overlapping fiber-melting tray and separate insulation earth unit make the disposition of the cores, expanding the capacity and cable-earthen flexible, convenient and safe


Application

  1. Terminal of the optical cables
  2. Different types and structures
  3. The diameter of which are within 18mm() tray


Main technical Specifications

Product

12 cores fiber optical patch panel

External Size

(length×width×height) 430x300x1U

Weight

3.5kg

Optical fiber winding radius

40mm

Extra loss of fiber tray

none

Fiber length left in tray

≥1.6m

Fiber capacity

48 cores

Working temperature

40℃ ~ + 60℃

Lateral pressure-resistance

500N

Shock-resistance

750N



Operations

  • Peel the cable , take off the outer and inner housing, as well as loose contract tube, and wash off the filling grease, leaving 1.1～1.6m fiber and 20～40mm steel core.
  • Fix the cable-pressing card and the cable, as well as the cable reinforce steel core.
  • Lead the fiber into the melting and connecting tray, fix heat contract tube and melted tube to one of the connecting fiber. After melting and connecting the fiber, move heat contract tube and melted tube and fix the stainless (or quartz) reinforce core stick ,make sure the connecting point is in the middle of the housing pipe. Heat the pipe to make the two into one.Put the protected joint into the fiber-laying tray.(one tray can lay12 cores)
  • Lay the left fiber in the melting and connecting tray evenly, and fix the winding fiber with nylon ties. Use the trays from the bottom up. After all the fiber has been connected, cover the top layer and fix it.
  • Position it and use the earth wire in accordance with the project plan.
