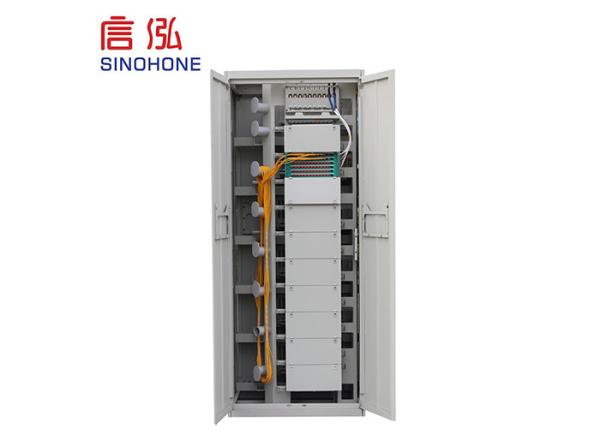

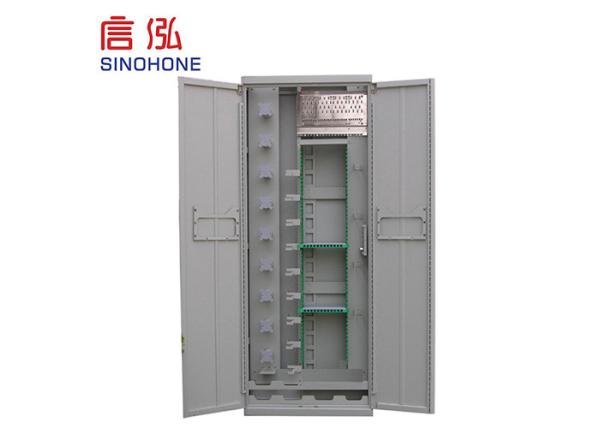

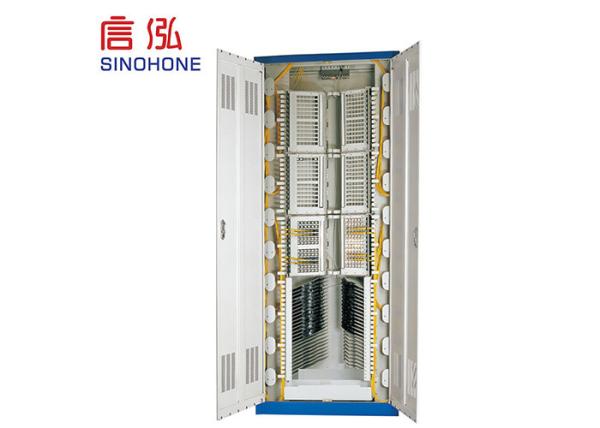

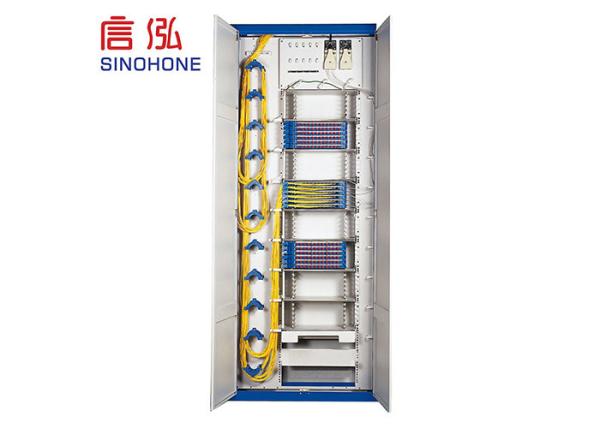

Fully Closed Fiber Distribution Cabinet , Fiber Optic Distribution Unit High Density
Fully Closed Fiber Distribution Cabinet , Fiber Optic Distribution Unit High Density
Fully Closed Fiber Distribution Cabinet , Fiber Optic Distribution Unit High Density
Fully Closed Fiber Distribution Cabinet , Fiber Optic Distribution Unit High Density
Fully Closed Fiber Distribution Cabinet , Fiber Optic Distribution Unit High Density
Fully Closed Fiber Distribution Cabinet , Fiber Optic Distribution Unit High Density
Fully Closed Fiber Distribution Cabinet , Fiber Optic Distribution Unit High Density
Fully Closed Fiber Distribution Cabinet , Fiber Optic Distribution Unit High Density
Specifications
Brand Name :
SINOHONE
Model Number :
Optical Fiber Distribution Frame
Certification :
CPR FCC CE RoHS ISO9001
Place of Origin :
Sichuan, China
MOQ :
1 piece
Price :
USD 38~48/piece
Payment Terms :
L/C, D/P, T/T, D/A, Western Union, MoneyGram
Supply Ability :
50000 pieces per month
Delivery Time :
5-8 work days
Packaging Details :
Standard packing in sealed box or according to customers' requirements
Product Name :
Rack Mount Optical Fiber Distribution Frame
Structure :
Fully Closed
Criterion :
YD / T 778-2011
Ports :
Shenzhen, Shanghai, etc.
Application :
Tributary Cable Distribution
OEM /ODM :
Available
Description

144 Cores Aluminum Rack Mount High Density Main Optical Fiber Distribution Frame

Quick Details

This Optical Fiber Distribution Frame is fit for splicing, connection and distribution of fibers with small or middle capacity. Normally it is used for tributary cable distribution at exchange side in an optical access network .

Characteristics:

  1. Standard size, light weight and reasonable structure
  2. Splice tray inside changeable
  3. Can be used in 19'', 23'' standard distribution frame
  4. Suitable for ribbon and single fiber
  5. Various panel plate to fit different adapter interface
  6. Front mark on the plate is easy for identification and operation
  7. 24C, 36C, 48C, 72C optional, with or without fiber optic pigtails and adapters
  8. Easy for management and operation

Features

  • Fully closed structure to ensure the fiber protection, dust proof
  • Cold rolled steel body with integrated structure, electrostatic spraying surface
  • 19"standard installation, suitable for all type of optical distribution box
  • Modular design is adopted to improve the operation efficiency. Cable fixing, grounding, splicing and distribution is finished with independent units
  • Optical cable/fiber can be led in/out from the top or the bottom of frame
  • Side panels can be dismounted in order to lead in/out fibers inter optical distribution frame
  • Horizontal fiber tray, vertical fiber tray, and fiber hanging ring make it easy to guide fibers, optimizing the whole distribution system
  • Kinds of arc kits and protection accessories along the fiber path ensure the minimum radii of fibers more than 40mm
  • Suitable for ordinary optical fiber or ribbon optical fiber

Main Technical Index Compliant with criterion: YD/T778-2011
Insulation resistance between cable fixed kits and frame: ≥ 1000MΩ/500V(DC)
Dielectric strength between cable fixed kits and frame: ≥3000V (DC)/1min, no break down and no flying arc
Applications Telecommunications subscriber loop
Fiber to the home (FTTH)
LAN/WAN
CATV

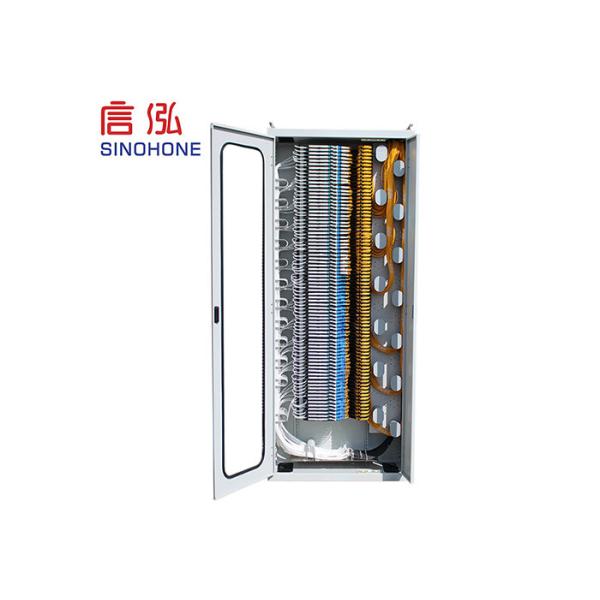

Fully Closed Fiber Distribution Cabinet , Fiber Optic Distribution Unit High DensityFully Closed Fiber Distribution Cabinet , Fiber Optic Distribution Unit High Density
