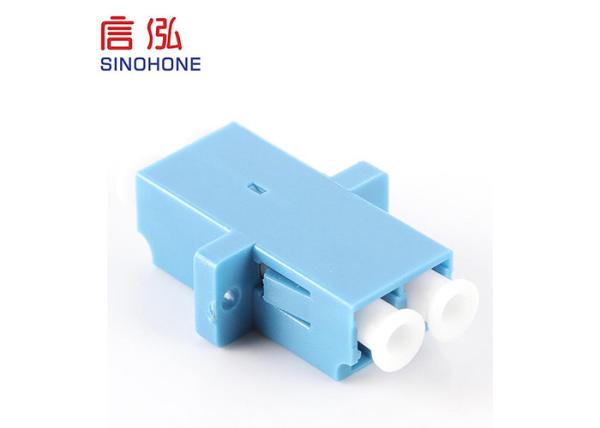

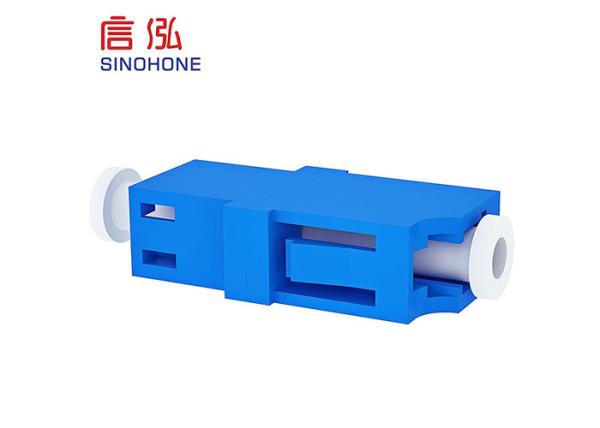

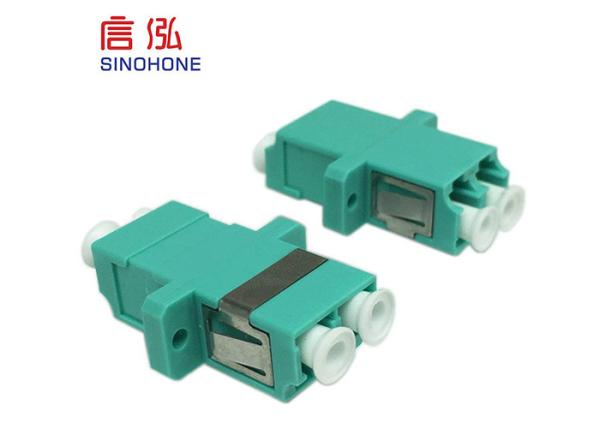

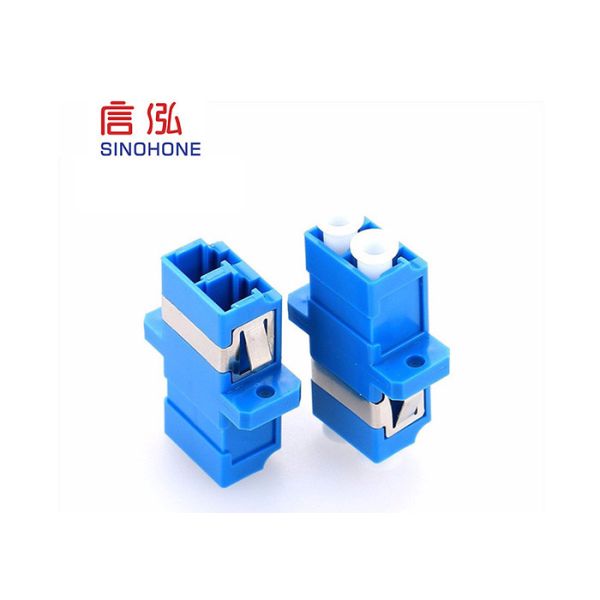

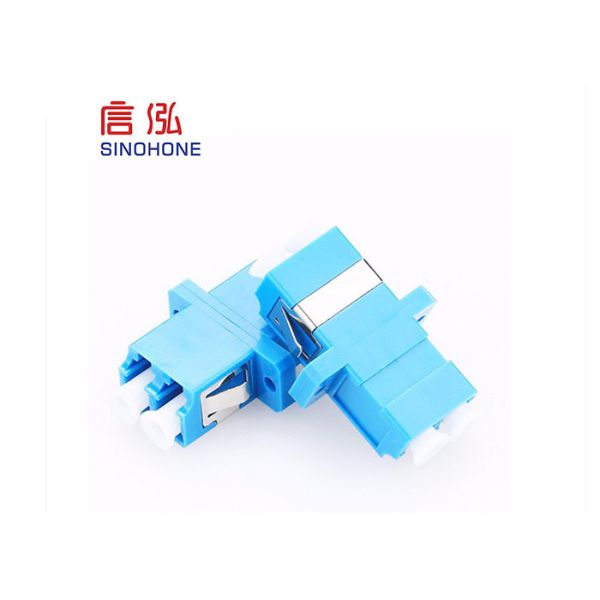

LC Fiber Optic Cable Adapter, Single Multimode Fiber Optic Patch Cables
LC Fiber Optic Cable Adapter, Single Multimode Fiber Optic Patch Cables
LC Fiber Optic Cable Adapter, Single Multimode Fiber Optic Patch Cables
LC Fiber Optic Cable Adapter, Single Multimode Fiber Optic Patch Cables
LC Fiber Optic Cable Adapter, Single Multimode Fiber Optic Patch Cables
LC Fiber Optic Cable Adapter, Single Multimode Fiber Optic Patch Cables
LC Fiber Optic Cable Adapter, Single Multimode Fiber Optic Patch Cables
LC Fiber Optic Cable Adapter, Single Multimode Fiber Optic Patch Cables
Specifications
Brand Name :
SINOHONE
Model Number :
LC
Certification :
ISO9001 CPR FCC CE RoHS
Place of Origin :
Sichuan, China
MOQ :
1000 piece
Price :
USD $0.36~$0.38 / pieces
Payment Terms :
L/C, D/P, T/T, D/A, Western Union, MoneyGram
Supply Ability :
500000 pieces per month
Delivery Time :
5-8 work days
Packaging Details :
Standard packing in sealed box or according to customers' requirements
Product Name :
LC Fiber Optic Adapter
Standard :
YD/T-1272.3
Connection Type :
Plug
Applications :
Optical, CATV
Storage Temperature :
-45~85℃
Operating Temperature :
-45~75℃
Description

Telecommunication LC Fiber Optic Adapter For Fiber Optic Patch Cord Single And Multi-mode

Features:

  • Conform to the Telecordia GR-3265-CORE standard
  • YD/T-1272.3 standard
  • Good compatibility, low insertion loss
  • Plug type connection, install discharge quickly
  • Products used in TFFH CATV, telecommunication network, etc .

Applications:

  • Optical communication system
  • Optical instruments
  • CATV
  • Fiber optical sensors

Specifications:

Parameter

Unit

LC, SC, FC, MU, ST, SC-ST, FC-ST, FC-SC, FC-LC, FC-MU

MTRJ

E2000

SM

MM

SM

MM

SM

PC

UPC

APC

PC

PC

UPC

PC

PC

APC

Insertion Loss (Typical)

dB

≤0.3

≤0.2

≤0.3

≤0.2

≤0.3

≤0.2

≤0.2

≤0.3

≤0.3

Return Loss

dB

≥45

≥50

≥60

≥30

≥45

≥50

≥35

≥55

≥75

Exchangeability

dB

≤0.2

≤0.2

≤0.2

Repeatability

dB

≤0.2

≤0.2

≤0.2

Durability

Time

>1000

>1000

>1000

Operating Temperature

°C

-40~75

-40~75

-40~75

Storage Temperature

°C

-45~85

-45~85

-45~85

LC Fiber Optic Cable Adapter, Single Multimode Fiber Optic Patch CablesLC Fiber Optic Cable Adapter, Single Multimode Fiber Optic Patch CablesLC Fiber Optic Cable Adapter, Single Multimode Fiber Optic Patch Cables
