Armored Fiber Optic Pigtail Stretch Proof Long Delivery Length
Armored Fiber Optic Pigtail Stretch Proof Long Delivery Length
Armored Fiber Optic Pigtail Stretch Proof Long Delivery Length
Armored Fiber Optic Pigtail Stretch Proof Long Delivery Length
Armored Fiber Optic Pigtail Stretch Proof Long Delivery Length
Armored Fiber Optic Pigtail Stretch Proof Long Delivery Length
Armored Fiber Optic Pigtail Stretch Proof Long Delivery Length
Armored Fiber Optic Pigtail Stretch Proof Long Delivery Length
Specifications
Brand Name :
SINOHONE
Certification :
ISO9001 CPR FCC CE RoHS
Place of Origin :
Sichuan, China
MOQ :
2000 meters
Price :
USD $0.38~$0.58 / meter
Payment Terms :
L/C, D/P, T/T, D/A, Western Union, MoneyGram
Supply Ability :
500000 meters per month
Delivery Time :
5-8 work days
Packaging Details :
Standard packing in sealed box or according to customers' requirements
Model Number :
MTRJ Fiber Optic Pigtail
Product Name :
MT-RJ Fiber Optic Pigtail
Configuration :
Duplex
Jacket :
Orange OFNR-Rated (Riser)
Port :
Shanghai, China
OEM / ODM :
Available
Connector Type :
MT-RJ
Description

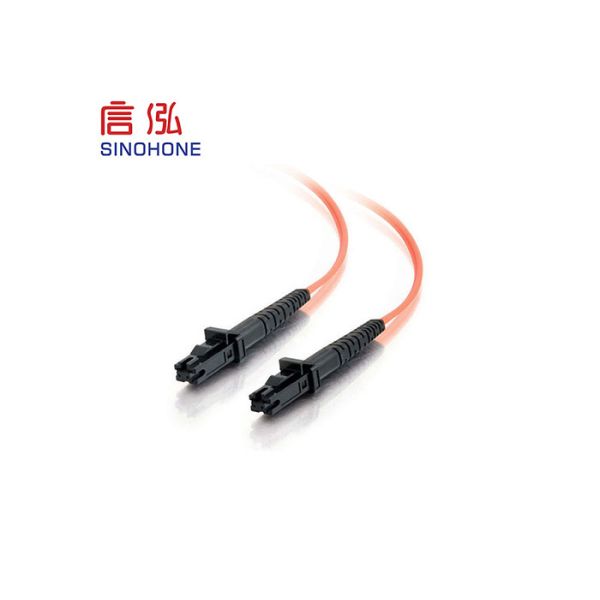

MTRJ Connector Fiber Optic Pigtail To Optical Fiber Patch Cord Cabling System

Product Detail

The MTRJ-MTRJ Multimode OM1 Fiber Optic Patch Cable is the first of the Small Form Factor (SFF) connector designs to reach a measure of market acceptance. It is easily noticeable with its RJ-45 style housing with push-pull coupling mechanism that allows for easy disengagement in dense spaces.

With the MTRJ-MTRJ OM1 fiber patch cable, you can send data over a 62.5/125 micron glass fiber 1Gbps link a distance of up to 300 meters at a wavelength of 850nm or a distance of up to 550 meters at a wavelength of 1300nm. For a 10Gbps link, you can transfer data a distance of up to 33 meters at an 850nm wavelength.

All fiber optic patch cables are assembled to meet and exceed industry performance standards. Each product is individually tested to make sure you receive the highest possible quality, and the results of each test are included with the product.

Features

Duplex configuration
OM1 62.5/125 micron glass
Small Form Factor Half the size of duplex SC and ST connectors
Orange OFNR-Rated (Riser) Jacket

Optical Characteristics

MT-RJ Fiber Optic Pigtail

62.5/125 OM1

Maximum Finished Cable Attenuation Coefficient

@850nm

3.0 dB/km

@1300nm

1.0 dB/km

Overfill Launch Bandwidth

@850nm

200 MHz.km

@1300nm

500 MHz.km

Laser Bandwidth

@850

220 MHz.km

Gigabit Ethernet Link Length (1 Gbps)

1000 BASE-SX (850nm)

300 Meters

1000 BASE-SX (1300nm)

550 Meters

Gigabit Ethernet Link Length (10 Gbps)

1000 BASE-SX (1300nm)

33 Meters

Armored Fiber Optic Pigtail Stretch Proof Long Delivery LengthArmored Fiber Optic Pigtail Stretch Proof Long Delivery Length
