GYFTA Outdoor Fiber Optical Cable Single Mode Drop Wire Aerial Cable 1 km Price
GYFTA Outdoor Fiber Optical Cable Single Mode Drop Wire Aerial Cable 1 km Price
GYFTA Outdoor Fiber Optical Cable Single Mode Drop Wire Aerial Cable 1 km Price
GYFTA Outdoor Fiber Optical Cable Single Mode Drop Wire Aerial Cable 1 km Price
GYFTA Outdoor Fiber Optical Cable Single Mode Drop Wire Aerial Cable 1 km Price
GYFTA Outdoor Fiber Optical Cable Single Mode Drop Wire Aerial Cable 1 km Price
GYFTA Outdoor Fiber Optical Cable Single Mode Drop Wire Aerial Cable 1 km Price
GYFTA Outdoor Fiber Optical Cable Single Mode Drop Wire Aerial Cable 1 km Price
Specifications
Brand Name :
SINOHONE
Model Number :
Outdoor Fiber Optic Cable
Certification :
UL, RoHS, ISO9001, SGS
Place of Origin :
Sichuan, China
MOQ :
1 METER
Price :
USD 0.35 ~ 3.6 / METERS
Payment Terms :
Western Union, T/T, D/P, D/A, L/C
Supply Ability :
1000 Kilometer / Kilometers per Week
Delivery Time :
5 days
Packaging Details :
2km per wooden reel
Product name :
GYFTA Outdoor Fibre Optical Cable Single Mode
Color :
Black
Cable type :
Outdoor
Operating Temperature :
-40~+70℃
Oem factory :
Yes
Description

GYFTA Outdoor Fiber Optical Cable Single Mode Drop Wire Aerial Cable 1km Price

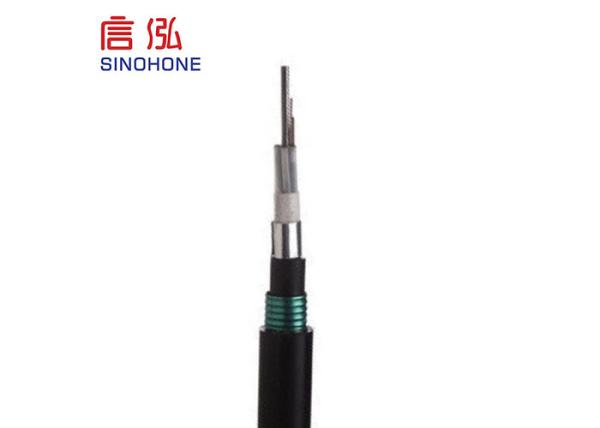

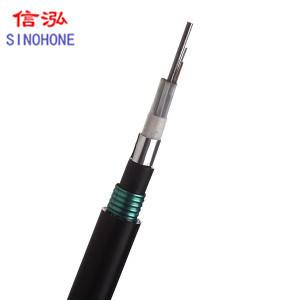

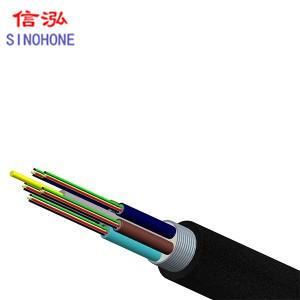

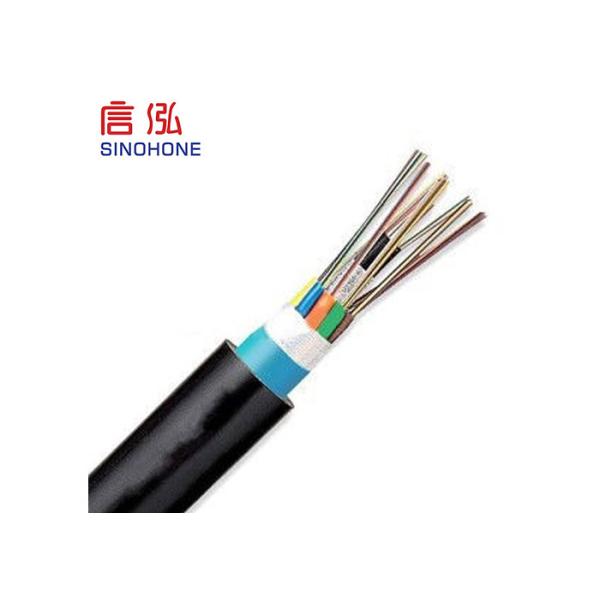

GYFTA Outdoor Fiber Optic Cable is a loose tube style, optical fiber cable with non-metallic central strength member of FRP and peripheral strength members and polyethylene sheath. GYFTA Fiber Cable is suitable for duct or aerial installation in area with high incidence of lightning or exposure to high voltage. Tubes of fiber GYFTA cable contain optical single-mode or multimode fibers color coded as per color coding scheme.


Features:

  • The specially designed compact structure is good at preventing loose tubes from shrinking.
  • High strength loose tube that is hydrolysis resistant and special tube filling compound ensure a critical protection of fiber.
  • Moisture proof and ratproof.
  • Small size, Light weight, with good bending resistance performance easy for installation.
  • Reasonable structure design and precise control for over length ensuring excellent characteristics of mechanical tensile strain and environment temperature.
  • High strength loose tube material with good performance of hydrolysis resistant, special tube filling compound ensure a critical protection of fiber.
  • Full section filled ensures moisture-proof and water blocking.


Application:


Laying method: Duct/Aerial
Suitable for long-distance trunk and LAN communication.
Fiber type: Single-mode/Multimode
Usable in Duct or Aerial
Long-haul communication system
Junction communication systems
Subscriber network systems
Local area network systems

G.652 G.655 50/125μm 62.5/125μm
Attenuation @850nm ≤3.0 dB/km ≤3.0 dB/km
(+20℃) @1300nm ≤1.0 dB/km ≤1.0 dB/km
@1310nm ≤0.36 dB/km ≤0.40 dB/km
@1550nm ≤0.22 dB/km ≤0.23dB/km
Bandwidth (Class A) @850nm ≥500 MHz·km ≥200 MHz·km
@1300nm ≥1000 MHz·km ≥600 MHz·km
Numerical Aperture 0.200±0.015NA 0.275±0.015NA
Cable Cut-off Wavelengthλcc ≤1260nm ≤1480nm

Technical Parameters
Cable Type Fiber Count Tubes Fillers Cable Diameter Cable Weight kg/km Tensile Strength Crush Resistance Bending Radius
mm Long/Short Term N Long/Short Term Static
N/100mm /Dynamic
mm
GYFTA-2~6 2~6 1 5 11.4 108 400/1000 300/1000 10D/20D
GYFTA-8~12 8~12 2 4 11.4 108 400/1000 300/1000 10D/20D
GYFTA-14~18 14~18 3 3 11.4 108 400/1000 300/1000 10D/20D
GYFTA-20~24 20~24 4 2 11.4 108 400/1000 300/1000 10D/20D
GYFTA-26~30 26~30 5 1 11.4 108 400/1000 300/1000 10D/20D
GYFTA-32~36 32~36 6 0 11.4 108 400/1000 300/1000 10D/20D
GYFTA-2~12 2~12 1 5 12.8 134 600/1500 300/1000 10D/20D
GYFTA-14~24 14~24 2 4 12.8 134 600/1500 300/1000 10D/20D
GYFTA-26~36 26~36 3 3 12.8 134 600/1500 300/1000 10D/20D
GYFTA-38~48 38~48 4 2 12.8 134 600/1500 300/1000 10D/20D
GYFTA-50~60 50~60 5 1 12.8 134 600/1500 300/1000 10D/20D
GYFTA-62~72 62~72 6 0 12.8 134 600/1500 300/1000 10D/20D
GYFTA-2~6 2~6 1 7 12.8 140 1000/3000 300/1000 10D/20D
GYFTA-8~12 8~12 2 6 12.8 140 1000/3000 300/1000 10D/20D
GYFTA-14~18 14~18 3 5 12.8 140 1000/3000 300/1000 10D/20D
GYFTA-20~24 20~24 4 4 12.8 140 1000/3000 300/1000 10D/20D
GYFTA-26~30 26~30 5 3 12.8 140 1000/3000 300/1000 10D/20D
GYFTA-32~36 32~36 6 2 12.8 140 1000/3000 300/1000 10D/20D
GYFTA-38~42 38~42 7 1 12.8 140 1000/3000 300/1000 10D/20D
GYFTA-44~48 44~48 8 0 12.8 140 1000/3000 300/1000 10D/20D
GYFTA-50~60 50~60 5 3 14.8 176 1000/3000 300/1000 10D/20D
GYFTA-62~72 62~72 6 2 14.8 176 1000/3000 300/1000 10D/20D
GYFTA-74~84 74~84 7 1 14.8 176 1000/3000 300/1000 10D/20D
GYFTA-86~96 86~96 8 0 14.8 176 1000/3000 300/1000 10D/20D
GYFTA-98~108 98~108 9 1 17.1 226 1000/3000 300/1000 10D/20D
GYFTA-110~120 110~120 10 0 17.1 226 1000/3000 300/1000 10D/20D
GYFTA-122~132 122~132 11 1 19.2 279 1000/3000 300/1000 10D/20D
GYFTA-134~144 134~144 12 0 19.2 279 1000/3000 300/1000 10D/20D

GYFTA Outdoor Fiber Optical Cable Single Mode Drop Wire Aerial Cable 1 km Price
