Overhead Outdoor Fiber Optic Cable High Voltage Inductance Use
Overhead Outdoor Fiber Optic Cable High Voltage Inductance Use
Overhead Outdoor Fiber Optic Cable High Voltage Inductance Use
Overhead Outdoor Fiber Optic Cable High Voltage Inductance Use
Specifications
Brand Name :
SINOHONE
Model Number :
GYFTY
Certification :
CPR FCC CE RoHS ISO9001
Place of Origin :
Sichuan, China
MOQ :
2000 meters
Price :
USD $0.38~$0.58 / meter
Payment Terms :
L/C, D/P, T/T, D/A, Western Union, MoneyGram
Supply Ability :
500000 meters per month
Delivery Time :
5-8 work days
Packaging Details :
Standard packing in sealed box or according to customers' requirements
Product Name :
Outdoor Fiber Optic Cable
Tube :
PBT Loose Tube
Strength Member :
FRP Non-metallic Strength Member
Fiber count :
2~120 fibers
Oem :
Available
Installation :
Aerial and Duct
Sheath material :
polyethylene
Applications :
Overhead, Network
Description

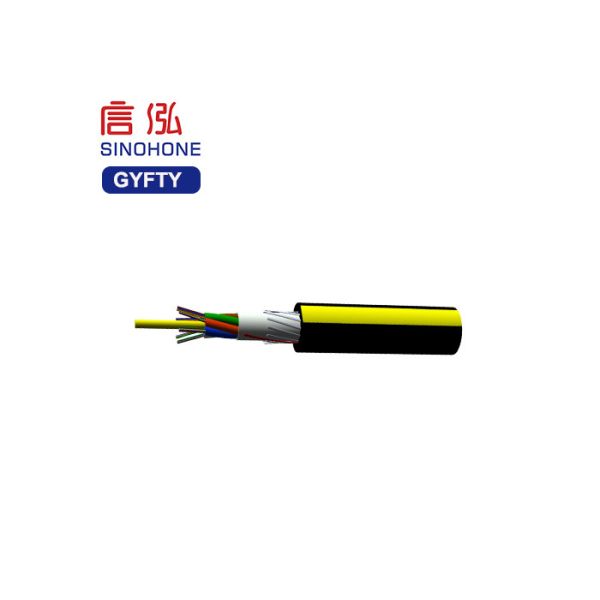

Overhead And High Voltage Inductance Use GYFTY Outdoor Fiber Optic Cable

Quick Introduction:

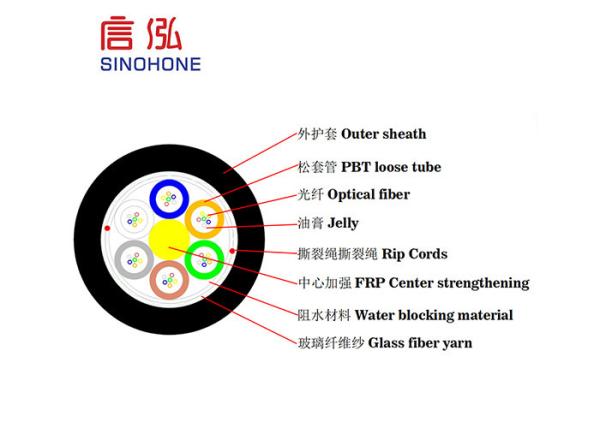

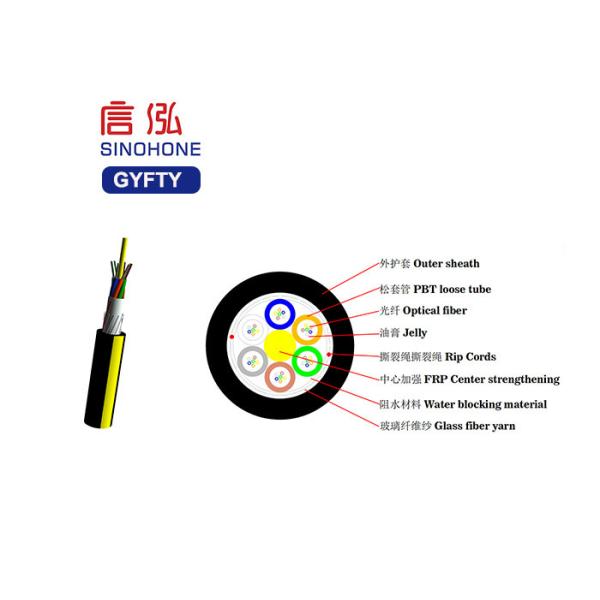

Sinohone Fiber Optic Cable GYFTY is an outdoor optical cable, it consists of non-metallic reinforcement components, optical fiber ribbon, fulll-filled ointment and polyethylene clading optical cable.

Advantages:

  1. Small diameter and lightweight.

  2. Anti-electromagnetism ability.

  3. It occupies little space and can use aluminum or steel tape.

  4. Low coefficient of attenuation and chromatic dispersion.

Optical Characteristics

Attenuation @850nm ≤3.0 dB/km ≤3.0 dB/km
(+20℃) @1300nm ≤1.0 dB/km ≤1.0 dB/km
@1310nm ≤0.36 dB/km ≤0.40 dB/km
@1550nm ≤0.22 dB/km ≤0.23dB/km
@850nm ≥500 MHz·km ≥200 MHz·km
Bandwidth (Class A) @1300nm ≥1000 MHz·km ≥600 MHz·km
Numerical Aperture 0.200±0.015NA 0.275±0.015NA
Cable Cut-off Wavelength λcc ≤1260nm ≤1480nm

Technical Parameters

Cable Type Fiber Count Tubes Fillers Cable Diameter Cable Weight kg/km Tensile Strength Crush Resistance
Bending Radius
Long/Short Term Static/Dynamic
mm Long/Short Term N N/100mm mm
GYFTY-2~6 2~6 1 5 10.6 88 400/1000 300/1000 10D/20D
GYFTY-8~12 8~12 2 4 10.6 88 400/1000 300/1000 10D/20D
GYFTY-14~18 14~18 3 3 10.6 88 400/1000 300/1000 10D/20D
GYFTY -20~24 20~24 4 2 10.6 88 400/1000 300/1000 10D/20D
GYFTY-26~30 26~30 5 1 10.6 88 400/1000 300/1000 10D/20D
GYFTY-32~36 32~36 6 0 10.6 88 400/1000 300/1000 10D/20D
GYFTY-2~6 2~6 1 6 11 97 600/1500 300/1000 10D/20D
GYFTY-8~12 8~12 2 5 11 97 600/1500 300/1000 10D/20D
GYFTY-14~18 14~18 3 4 11 97 600/1500 300/1000 10D/20D
GYFTY-20~24 20~24 4 3 11 97 600/1500 300/1000 10D/20D
GYFTY-26~30 26~30 5 2 11 97 600/1500 300/1000 10D/20D
GYFTY-32~36 32~36 6 1 11 97 600/1500 300/1000 10D/20D
GYFTY-38~42 38~42 7 0 11 97 600/1500 300/1000 10D/20D
GYFTY-44~48 44~48 4 2 12 113 600/1500 300/1000 10D/20D
GYFTY-50~60 50~60 5 1 12 113 600/1500 300/1000 10D/20D
GYFTY-62~72 62~72 6 0 12 113 600/1500 300/1000 10D/20D
GYFTY-2~6 2~6 1 7 12 120 1000/3000 300/1000 10D/20D
GYFTY-8~12 8~12 2 6 12 120 1000/3000 300/1000 10D/20D
GYFTY-14~18 14~18 3 5 12 120 1000/3000 300/1000 10D/20D
GYFTY-20~24 20~24 4 4 12 120 1000/3000 300/1000 10D/20D
GYFTY-26~30 26~30 5 3 12 120 1000/3000 300/1000 10D/20D
GYFTY-32~36 32~36 6 2 12 120 1000/3000 300/1000 10D/20D
GYFTY-38~42 38~42 7 1 12 120 1000/3000 300/1000 10D/20D
GYFTY-44~48 44~48 8 0 12 120 1000/3000 300/1000 10D/20D
GYFTY-50~60 50~60 5 2 13 137 1000/3000 300/1000 10D/20D
GYFTY-62~72 62~72 6 1 13 137 1000/3000 300/1000 10D/20D
GYFTY-74~84 74~84 7 0 13 137 1000/3000 300/1000 10D/20D
GYFTY-86~96 86~96 8 0 13.9 154 1000/3000 300/1000 10D/20D
GYFTY-98~108 98~108 9 1 15.3 185 1000/3000 300/1000 10D/20D
GYFTY-110~120 110~120 10 0 15.3 185 1000/3000 300/1000 10D/20
