Specifications
Brand Name :
SINOHONE
Model Number :
Outdoor Fiber Optic Cable
Certification :
ISO, CE, UL, ROHS
Place of Origin :
Sichuan, China
MOQ :
1 METER
Price :
USD 0.35 ~ 3.6 / METERS
Payment Terms :
Western Union, T/T, D/P, D/A, L/C
Supply Ability :
1000 Kilometer / Kilometers per Week
Delivery Time :
5 days
Packaging Details :
2km per wooden reel
Operating Temperature :
-40~+70℃
Color :
Black
Application :
Telecommunication
Product name :
Outdoor Armoured Fiber Optic Cable
Life time :
More than 20 years
Oem factory :
Yes
Description

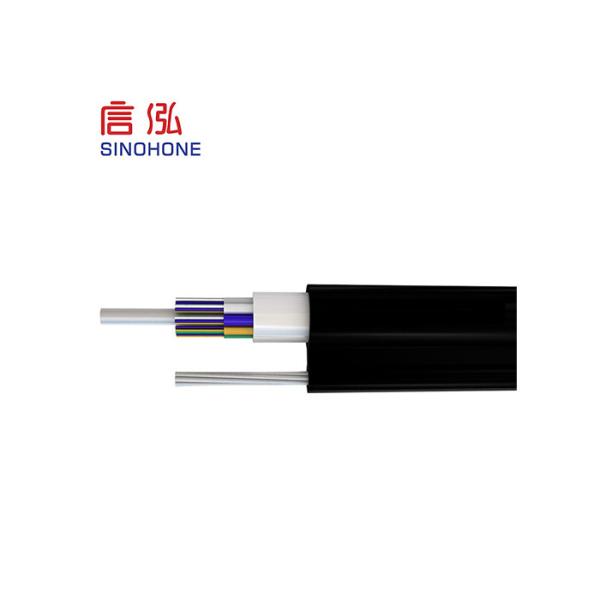

GYTC8A Aerial Outdoor Armoured Fiber Optic Cable 4 Core Single Mode Cable


Description

The fibers, 250μm, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. A steel wire locates in the center of core as a metallic strength member. The tubes (and fillers) are stranded around the strength member into a compact and circular cable core. After an Aluminum Polyethylene Laminate (APL) moisture barrier is applied around the cable core, this part of cable accompanied with the stranded wires as the supporting part are completed with a polyethylene (PE) sheath to be figure 8 structures.


Features

  • High tensile strength of stranded wires meet the requirement of self-supporting and reduce the installation cost.
  • Good mechanical and temperature performance
  • High strength loose tube that is hydrolysis resistant
  • Special tube filling compound ensure a critical protection of fiber
  • The following measures are taken to ensure the cable watertight:
  • Steel wire used as the central strength member
  • Loose tube filling compound
  • 100% cable core filling
  • APL moisture barrier



Optical Characteristics

G.652G.65550/125μm62.5/125μm
Attenuation (+20ºC)@850nm ≤3.0 dB/km≤3.0 dB/km
@1300nm ≤1.0 dB/km≤1.0 dB/km
@1310nm≤0.36 dB/km≤0.40 dB/km
@1550nm≤0.22 dB/km≤0.23dB/km
Bandwidth (Class A)@850nm ≥500 MHz·km≥200 MHz·km
@1300nm ≥1000 MHz·km≥600 MHz·km
Numerical Aperture 0.200±0.015NA0.275±0.015NA
Cable Cut-off Wavelength λcc≤1260nm≤1480nm


Cable TypeFiber CountTubesFillersCable DiameterCable Weight kg/kmTensile StrengthCrush ResistanceBending Radius
mmLong/Short Term NLong/Short TermStatic
N/100mm/Dynamic
mm
GYTC8A-2~62~6149.5×18.3218600/1500300/100010D/20D
GYTC8A-8~128~12239.5×18.3218600/1500300/100010D/20D
GYTC8A-14~1814~18329.5×18.3218600/1500300/100010D/20D
GYTC8A-20~2420~24419.5×18.3218600/1500300/100010D/20D
GYTC8A-26~3026~30509.5×18.3218600/1500300/100010D/20D
GYTC8A-2~62~6149.5×18.3218600/1500300/100010D/20D
GYTC8A-8~128~12239.5×18.3218600/1500300/100010D/20D
GYTC8A-14~1814~18329.5×18.3218600/1500300/100010D/20D
GYTC8A-20~2420~24419.5×18.3218600/1500300/100010D/20D
GYTC8A-26~3026~30509.5×18.3218600/1500300/100010D/20D
GYTC8A-2~62~6149.5×18.3218600/1500300/100010D/20D
GYTC8A-8~128~12239.5×18.3218600/1500300/100010D/20D
GYTC8A-14~1814~18329.5×18.3218600/1500300/100010D/20D
GYTC8A-20~2420~24419.5×18.3218600/1500300/100010D/20D
GYTC8A-26~3026~30509.5×18.3218600/1500300/100010D/20D
GYTC8A-2~62~6149.5×18.3218600/1500300/100010D/20D
