Specifications
Brand Name :
SINOHONE
Model Number :
Outdoor Fiber Optic Cable
Certification :
ISO, CE, UL, ROHS
Place of Origin :
Sichuan,China
MOQ :
1000 METER
Price :
USD0.35~3.6/METERS
Payment Terms :
Western Union, T/T, D/P, D/A, L/C
Supply Ability :
1000 Kilometer/Kilometers per Week
Delivery Time :
5 days
Packaging Details :
2km per wooden reel
Packing :
Wooden
Number of Conductors :
≥ 10
Application :
CATV & computer networks system
Oem factory :
Yes
Operating Temperature :
-40~+70℃
Description

Aerial Outdoor Fiber Optic Cable Water Blocking Armored Fiber Optic Cable

Description:

Sinohone GYXTS outdoor fiber optic cable has low dispersion and attenuation, proper design and precise control for fiber excess length render the cable excellent mechanical and environmental properties. The armoring of corrugate steel tape makes cable hace nice properties of moisture resistance and crush resistance. With small cable diameter and light cable weight, its easily to lay the GYXTS cable when installing.

Its widely used in rural communication, local trunck line, CATV & computer network system.

Characteristics:

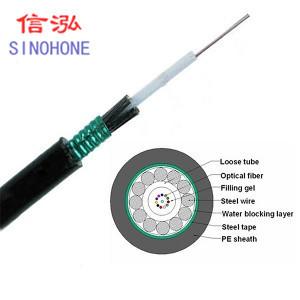

Central tube, steel wires and steel tape armoring single sheath structure.
Small diameter, lighter, easy installation.
Excellent moisture, water-blocking perfomance;
Anti-gunnery and anti-rodent.
Good mechanical performance and environmental properties.

Applications:
Buried, aerial
Relay communication system

Standards:


YD/T901-2009
IEC60794-1

Temperature:


Operating temperature: -40°C~+70°C

Technical Parameters

Fiber Count Diameter(mm) Weight (kg/km) Tensile(N) Crush(N) Bending Radius(mm)
2~12 9.5 130 Long term Short term Long term Short term Static Dynamic
1000 3000 1000 3000 10D 20D

Note:

  • D refers to the cable diameter;
  • The relevant technical Parameters can be adjusted according to the customer's demands;
  • The block water way can be adjusted according to the customer' demands;
  • To design flame resistance, anti-rodent, termite resistant cable according to customer's demands.
  • The structure of GYXTA is aluminium tape, PE sheath, other construction is the same as the items described.
