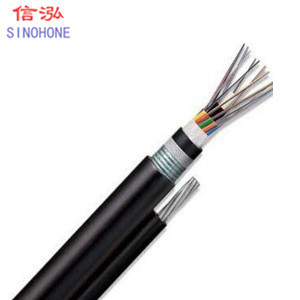

12 Core Armored Fiber Optic Cable , Armored Multi-mode Fiber Optic Cable
12 Core Armored Fiber Optic Cable , Armored Multi-mode Fiber Optic Cable
12 Core Armored Fiber Optic Cable , Armored Multi-mode Fiber Optic Cable
12 Core Armored Fiber Optic Cable , Armored Multi-mode Fiber Optic Cable
12 Core Armored Fiber Optic Cable , Armored Multi-mode Fiber Optic Cable
12 Core Armored Fiber Optic Cable , Armored Multi-mode Fiber Optic Cable
12 Core Armored Fiber Optic Cable , Armored Multi-mode Fiber Optic Cable
12 Core Armored Fiber Optic Cable , Armored Multi-mode Fiber Optic Cable
Specifications
Brand Name :
SINOHONE
Model Number :
GYTC8S
Certification :
UL, RoHS, ISO9001, SGS
Place of Origin :
Sichuan,China
MOQ :
1 METER
Price :
USD0.35~3.6/METERS
Payment Terms :
Western Union, T/T, D/P, D/A, L/C
Supply Ability :
1000 Kilometer/Kilometers per Week
Delivery Time :
5 days
Packaging Details :
2km per wooden reel
Product name :
Outdoor Fiber Optic Cable
Working Temperature :
-40°C~+85°C
Number of Conductors :
≥ 10
Application :
FTTH FTTB FTTX Network
Cable type :
Outdoor
Description

High quality Multi-mode Outdoor Fiber Optical cable 2 4 6 8 12 Core Armoured Cable

Product Description

Sinohone GYTC8S outdoor fiber optic cable is a typical outdoor use fiber optic cable for aerial applications. Its also called the figure 8 cable because of its structure looks like the figure 8.

It has great features of mositure resistance and crush resistance suitable for this application. Its mental stength member is made up of stranded wires as the supporting part are compeleted with a polyethylene (PE) sheath to be figure 8 structure. We supply single mode and multimode GYTC8S fiber cables with 2 fiber type to 96 fiber type.

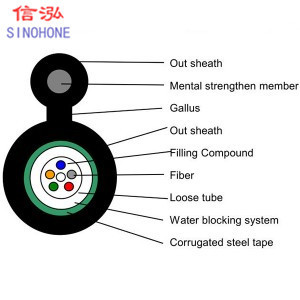

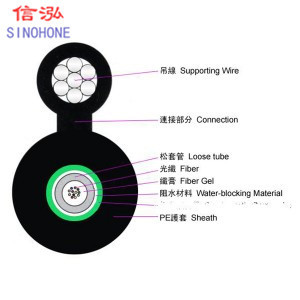

Structure:

Optical loose tube
Metallic central reinforcer
Fill gel into SZ stranded cores
Two-sided plastic-coated steel tape bonded PE sheath
Self supporting by steel strand

Application Range:

Suitable for long-distance communication and interoffice communication

Laying Method:

Aerial

Applicable Temperature:

-40ºC~+60ºC

Product Features:

  1. Low optical fiber transmission loss and low dispersion.
  2. Endow cables with excellent mechanical properties and environmental performance due to reasonable design and precise control over excess length of optical fibers in loose tube and cabling mode.
  3. Keep structure compact, and protect the cable from stress under hostile environment by use of SZ stranded structure.
  4. Fill waterproof cable gel outside the reinforcer and inside cores, ensuring its moisture proof and water proof effect.
  5. Provide more excellent moisture proof effect as well as bullet proof function as the cores are wrapped longitudinally by steel tape.
  6. The steel strand as the self supporting member meets the higher tensile strength.

Technical Parameters

Fiber cores Outer diameter of optical cable (mm) Weight of optical cable (kg/km) Minimum bending radius (mm) Allowable minimum tensile strength (N) Allowable minimum crush resistance (N/100mm)
2~36 11.8 275 Static Dynamic Short-term Long-term Short-term Long-term
38~72 13.4 311 120 240 8000 6000 3000 1000
140 280 8000 6000 3000 1000

12 Core Armored Fiber Optic Cable , Armored Multi-mode Fiber Optic Cable12 Core Armored Fiber Optic Cable , Armored Multi-mode Fiber Optic Cable12 Core Armored Fiber Optic Cable , Armored Multi-mode Fiber Optic Cable12 Core Armored Fiber Optic Cable , Armored Multi-mode Fiber Optic Cable
