Ribbon Outdoor Fiber Optic Cable Flame Resistance For Access Network
Ribbon Outdoor Fiber Optic Cable Flame Resistance For Access Network
Ribbon Outdoor Fiber Optic Cable Flame Resistance For Access Network
Ribbon Outdoor Fiber Optic Cable Flame Resistance For Access Network
Ribbon Outdoor Fiber Optic Cable Flame Resistance For Access Network
Ribbon Outdoor Fiber Optic Cable Flame Resistance For Access Network
Ribbon Outdoor Fiber Optic Cable Flame Resistance For Access Network
Ribbon Outdoor Fiber Optic Cable Flame Resistance For Access Network
Specifications
Brand Name :
SINOHONE
Model Number :
GYDTA
Certification :
CPR FCC CE RoHS ISO9001
Place of Origin :
Sichuan, China
MOQ :
2000 meters
Price :
USD $0.38~$0.58 / meter
Payment Terms :
L/C, D/P, T/T, D/A, Western Union, MoneyGram
Supply Ability :
500000 meters per month
Delivery Time :
5-8 work days
Packaging Details :
Standard packing in sealed box or according to customers' requirements
Product Name :
GYDTA Layer Stranded Optical Fiber Ribbon Cable
Application :
Access Network
Port :
Shanghai, Shenzhen, Qingdao, Ningbo etc.
Operating Temperature :
-40°C~+70°C
Fiber Count :
Customize Available
Construction :
Laminated Steel Polyethylene Sheath
Description

​

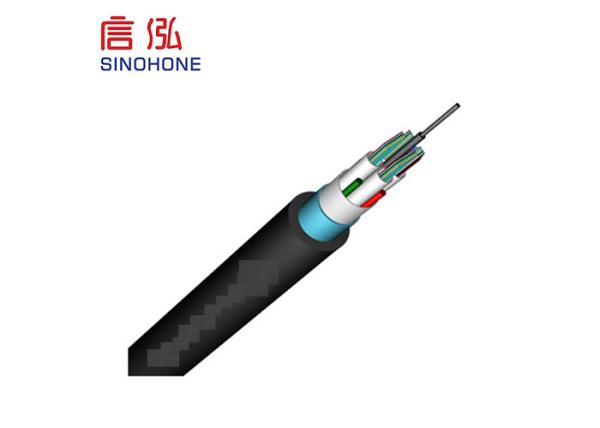

GYDTA Outdoor Fiber Optic Cable Optical Ribbon Fiber Optic Outdoor Cable For Access Network

Characteristics:

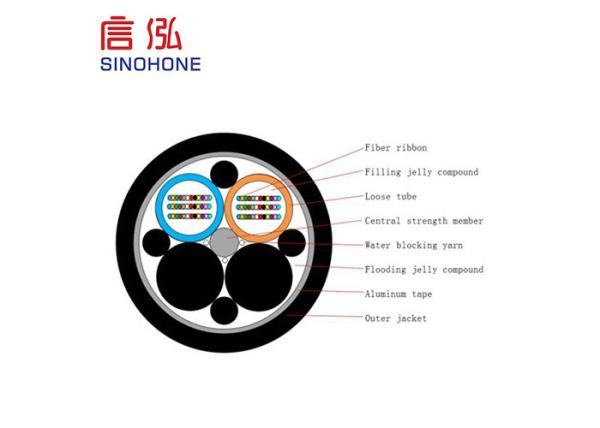

GYDTA Layer Stranded Optical fiber ribbon cable for access network has loose tube of PBT material has good hydrolysis resistance performance and high strength. Tube are filled with the special imported jelly compound to protect the fibers.


The concentration of the fibers is high, the diameter of the optical fiber cable is smaller, so the weight is lighter. Excellent moisture, water-blocking performance; Good mechanical performance and environmental properties.

Applications:

Duct, aerial
Metropolitan area network and access network etc.

Standards:

  • YD/T901-2009
  • IEC60794-1

Temperature:Operating temperature: -40°C~+70°C

Technical Parameters

Note:

  1. D refers to the cable diameter;
  2. The relevant technical Parameters can be adjusted according to the customer’s demands;
  3. The block water way can be adjusted according to the customer’ demands;
  4. To design flame resistance, anti-rodent, termite resistant cable according to customer’s demands.

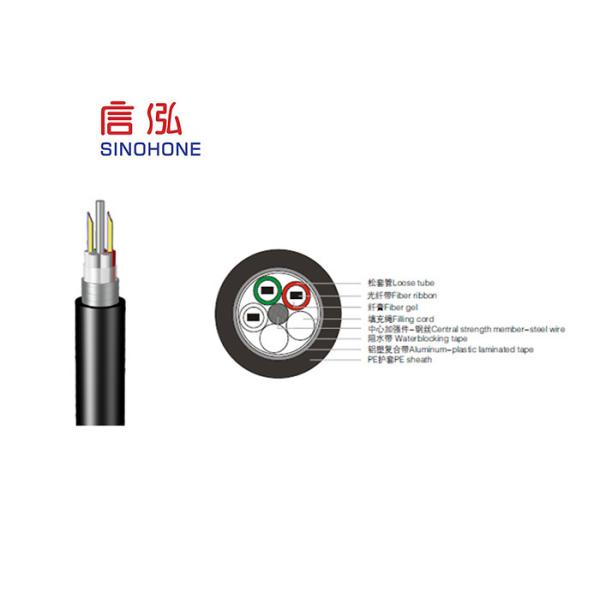

  5. The construction of GYDTS is laminated steel poloyethylene sheath, other construction is the same as the items described.

Fiber Count Structure Diameter(mm) Weight (kg/km) Tensile(N) Crush(N) Bending Radius(mm)
Long term Short term Long term Short term Static Dynamic
36-144/12F 1+4 16.7 235 1000 2000 300 1000 10D 20D
48-192/12F 1+4 17.4 260 1000 2000 300 1000 10D 20D
72-288/12F 1+4 18.4 308 1000 3000 300 1000 10D 20D
300-360/12F 1+5 20.2 340 1000 3000 300 1000 10D 20D
300-384/12F 1+4 20.0 350 1000 3000 300 1000 10D 20D
372-432/12F 1+6 21.8 400 1000 3000 300 1000 10D 20D
396-432/12F 1+4 20.8 370 1000 3000 300 1000 10D 20D
576/12F 1+6 24.0 485 1000 3000 300 1000 10D 20D

Ribbon Outdoor Fiber Optic Cable Flame Resistance For Access NetworkRibbon Outdoor Fiber Optic Cable Flame Resistance For Access Network
