Specifications
Brand Name :
SINOHONE
Model Number :
GYFTA
Certification :
CPR FCC CE RoHS ISO9001
Place of Origin :
Sichuan, China
MOQ :
2000 meters
Price :
USD $0.38~$0.58 / meter
Payment Terms :
L/C, D/P, T/T, D/A, Western Union, MoneyGram
Supply Ability :
500000 meters per month
Delivery Time :
5-8 work days
Packaging Details :
Standard packing in sealed box or according to customers' requirements
Application :
Aerial,Duct
Fiber type :
single mode or multi mode
Fiber count :
2~144 fibers
Product name :
Outdoor Optic Fiber Cable
Length :
2km or customized length
Oem :
Available
Installation :
Aerial & Duct
Structure :
Loose tube
Sheath material :
PE
Description

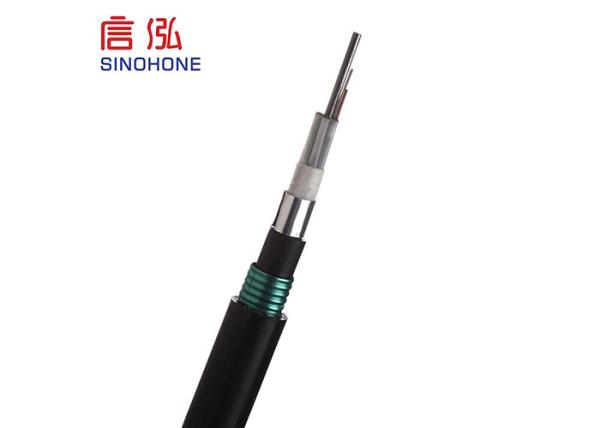

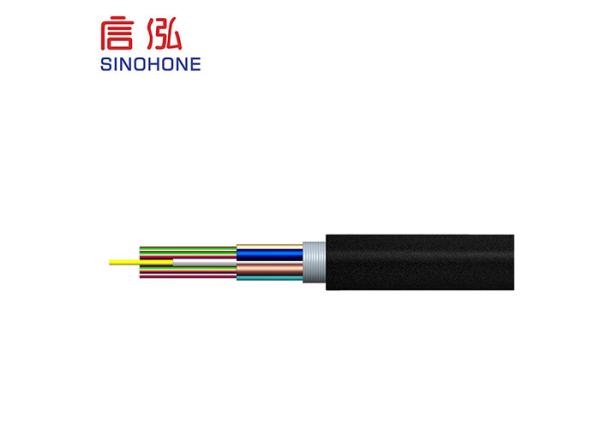

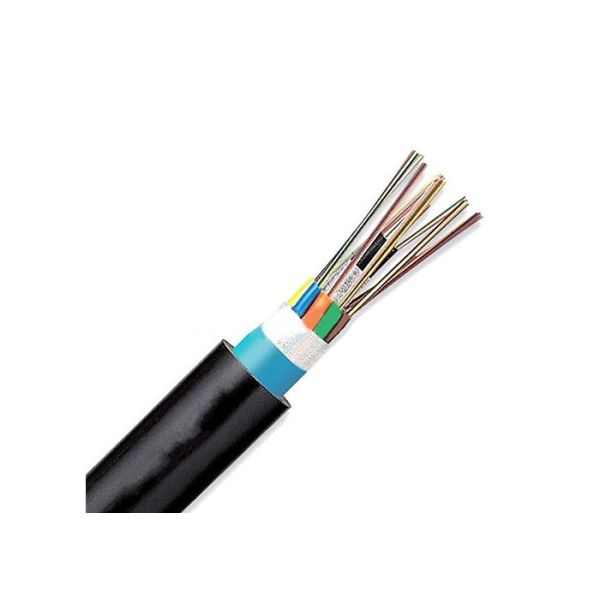

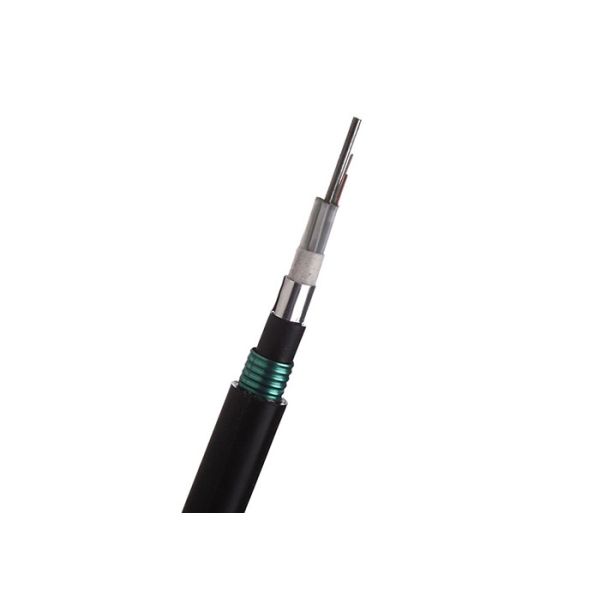

Non-Metallic GYFTA Duct And Non Self-Supporting Outdoor Fiber Optic Cable Loose Tube


GYFTA Outdoor Fiber Optic Cable is a loose tube style, optical fiber cable with non-metallic central strength member of FRP and peripheral strength members and polyethylene sheath. GYFTA Fiber Cable is suitable for duct or aerial installation in area with high incidence of lightning or exposure to high voltage. Tubes of fiber GYFTA cable contain optical single-mode or multimode fibers color coded as per color coding scheme.

Features

  • The specially designed compact structure is good at preventing loose tubes from shrinking.
  • High strength loose tube that is hydrolysis resistant and special tube filling compound ensure a critical protection of fiber.
  • Moisture proof and ratproof.
  • Small size, Light weight, with good bending resistance performance easy for installation.
  • Reasonable structure design and precise control for over length ensuring excellent characteristics of mechanical tensile strain and environment temperature.
  • High strength loose tube material with good performance of hydrolysis resistant, special tube filling compound ensure a critical protection of fiber.
  • Full section filled ensures moisture-proof and water blocking.

G.652 G.655 50/125μm 62.5/125μm
Attenuation @850nm ≤3.0 dB/km ≤3.0 dB/km
(+20℃) @1300nm ≤1.0 dB/km ≤1.0 dB/km
@1310nm ≤0.36 dB/km ≤0.40 dB/km
@1550nm ≤0.22 dB/km ≤0.23dB/km
Bandwidth (Class A) @850nm ≥500 MHz·km ≥200 MHz·km
@1300nm ≥1000 MHz·km ≥600 MHz·km
Numerical Aperture 0.200±0.015NA 0.275±0.015NA
Cable Cut-off Wavelengthλcc ≤1260nm ≤1480nm

Application:

  • Laying method: Duct/Aerial
  • Suitable for long-distance trunk and LAN communication.
  • Fiber type: Single-mode/Multimode
  • Usable in Duct or Aerial
  • Long-haul communication system
  • Junction communication systems
  • Subscriber network systems
  • Local area network systems

Technical Parameters
Cable Type Fiber Count Tubes Fillers Cable Diameter Cable Weight kg/km Tensile Strength Crush Resistance Bending Radius
mm Long/Short Term N Long/Short Term Static
N/100mm /Dynamic
mm
GYFTA-2~6 2~6 1 5 11.4 108 400/1000 300/1000 10D/20D
GYFTA-8~12 8~12 2 4 11.4 108 400/1000 300/1000 10D/20D
GYFTA-14~18 14~18 3 3 11.4 108 400/1000 300/1000 10D/20D
GYFTA-20~24 20~24 4 2 11.4 108 400/1000 300/1000 10D/20D
GYFTA-26~30 26~30 5 1 11.4 108 400/1000 300/1000 10D/20D
GYFTA-32~36 32~36 6 0 11.4 108 400/1000 300/1000 10D/20D
GYFTA-2~12 2~12 1 5 12.8 134 600/1500 300/1000 10D/20D
GYFTA-14~24 14~24 2 4 12.8 134 600/1500 300/1000 10D/20D
GYFTA-26~36 26~36 3 3 12.8 134 600/1500 300/1000 10D/20D
GYFTA-38~48 38~48 4 2 12.8 134 600/1500 300/1000 10D/20D
GYFTA-50~60 50~60 5 1 12.8 134 600/1500 300/1000 10D/20D
GYFTA-62~72 62~72 6 0 12.8 134 600/1500 300/1000 10D/20D
GYFTA-2~6 2~6 1 7 12.8 140 1000/3000 300/1000 10D/20D
GYFTA-8~12 8~12 2 6 12.8 140 1000/3000 300/1000 10D/20D
GYFTA-14~18 14~18 3 5 12.8 140 1000/3000 300/1000 10D/20D
GYFTA-20~24 20~24 4 4 12.8 140 1000/3000 300/1000 10D/20D
GYFTA-26~30 26~30 5 3 12.8 140 1000/3000 300/1000 10D/20D
GYFTA-32~36 32~36 6 2 12.8 140 1000/3000 300/1000 10D/20D
GYFTA-38~42 38~42 7 1 12.8 140 1000/3000 300/1000 10D/20D
GYFTA-44~48 44~48 8 0 12.8 140 1000/3000 300/1000 10D/20D
GYFTA-50~60 50~60 5 3 14.8 176 1000/3000 300/1000 10D/20D
GYFTA-62~72 62~72 6 2 14.8 176 1000/3000 300/1000 10D/20D
GYFTA-74~84 74~84 7 1 14.8 176 1000/3000 300/1000 10D/20D
GYFTA-86~96 86~96 8 0 14.8 176 1000/3000 300/1000 10D/20D
GYFTA-98~108 98~108 9 1 17.1 226 1000/3000 300/1000 10D/20D
GYFTA-110~120 110~120 10 0 17.1 226 1000/3000 300/1000 10D/20D
GYFTA-122~132 122~132 11 1 19.2 279 1000/3000 300/1000 10D/20D
GYFTA-134~144 134~144 12 0 19.2 279 1000/3000 300/1000 10D/20D
