Customized Length Fiber Optic Ethernet Cable High Tensile Strength Friendly Installation
Customized Length Fiber Optic Ethernet Cable High Tensile Strength Friendly Installation
Customized Length Fiber Optic Ethernet Cable High Tensile Strength Friendly Installation
Customized Length Fiber Optic Ethernet Cable High Tensile Strength Friendly Installation
Customized Length Fiber Optic Ethernet Cable High Tensile Strength Friendly Installation
Customized Length Fiber Optic Ethernet Cable High Tensile Strength Friendly Installation
Customized Length Fiber Optic Ethernet Cable High Tensile Strength Friendly Installation
Customized Length Fiber Optic Ethernet Cable High Tensile Strength Friendly Installation
Specifications
Brand Name :
SINOHONE
Model Number :
GYFXY
Certification :
CPR FCC CE RoHS ISO9001
Place of Origin :
Sichuan, China
MOQ :
2000 meters
Price :
USD $0.38~$0.58 / meter
Payment Terms :
L/C, D/P, T/T, D/A, Western Union, MoneyGram
Supply Ability :
500000 meters per month
Delivery Time :
5-8 work days
Packaging Details :
Standard packing in sealed box or according to customers' requirements
Product Name :
Unitube Non-metallic Non-armored Cable(GYFXY)
Fibers :
250μm
Structure :
Loose Tube
Length :
2km or customized length
Oem :
Available
Installation :
Aerial & Duct
Sheath material :
PE
Strength member :
Two steel wire
Description

250μm Fibers GYFXY Non Self-Supporting Outdoor Fiber Optic Cable Unitude Non-metallic

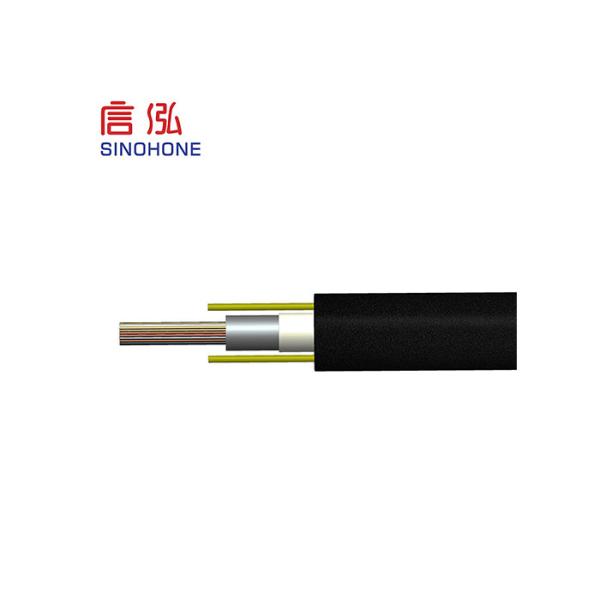

Unitube Non-metallic Non-armored Cable(GYFXY)

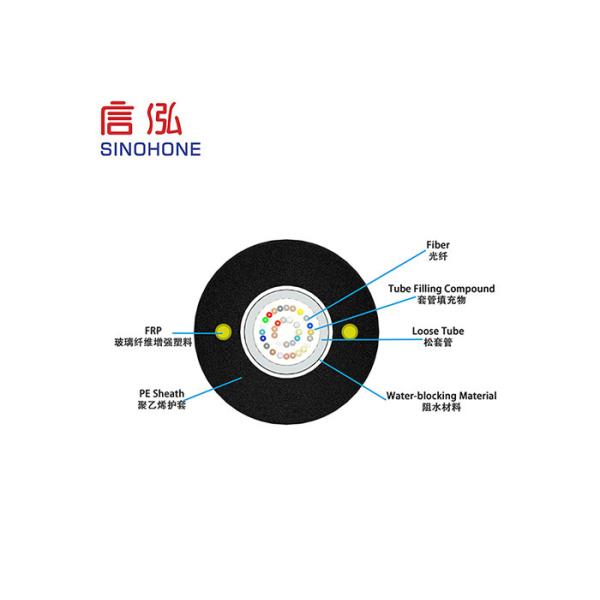

The fibers, 250μm, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. Over the tube. water-blocking material is applied to keep the cable watertight. Two parallel Fiber Reinforced Plastics (FRP) are placed at the two side. The cable is completed with a polyethylene(PE) sheath.

Features

  • Good mechanical and temperature performance;
  • High strength loose tube that is hydrolysis resistant;
  • Special tube filling compound ensure a critical protection of fiber;
  • Two parallel FRPs ensure tensile strength;
  • PE sheath protects cable from ultraviolet radiation;
  • Small diameter, light weight and friendly installation;
  • Long delivery length;
  • Standards: GYFXY cable complies with Standard YD/T 769-2003.

Cable Type Fiber Count Cable Weight Tensile Crush Resistance Bending Radius
kg/km Strength Long/Short Term N Long/Short Term N/100mm Static /Dynamic mm
(Increased by 2 fibers)
GYFXY 2~24 100 400/1000 300/1000 10D/20D

G.652D 50/125μm 62.5/125μm
Attenuation @850nm ≤3.0 dB/km ≤3.0 dB/km
(+20ºC) @1300nm ≤1.0 dB/km ≤1.0 dB/km
@1310nm ≤0.36 dB/km
@1550nm ≤0.22 dB/km
Bandwidth (Class A) @850nm ≥500 MHz·km ≥200 MHz·km
@1300nm ≥1000 MHz·km ≥600 MHz·km
Numerical Aperture 0.200±0.015NA 0.275±0.015NA
Cable Cut-off Wavelengthλcc ≤1260nm

Customized Length Fiber Optic Ethernet Cable High Tensile Strength Friendly InstallationCustomized Length Fiber Optic Ethernet Cable High Tensile Strength Friendly Installation
