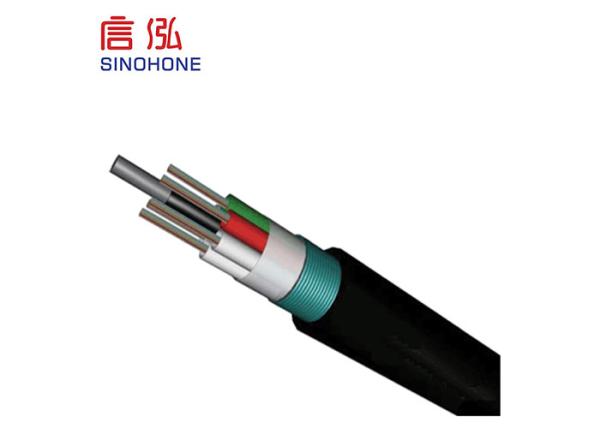

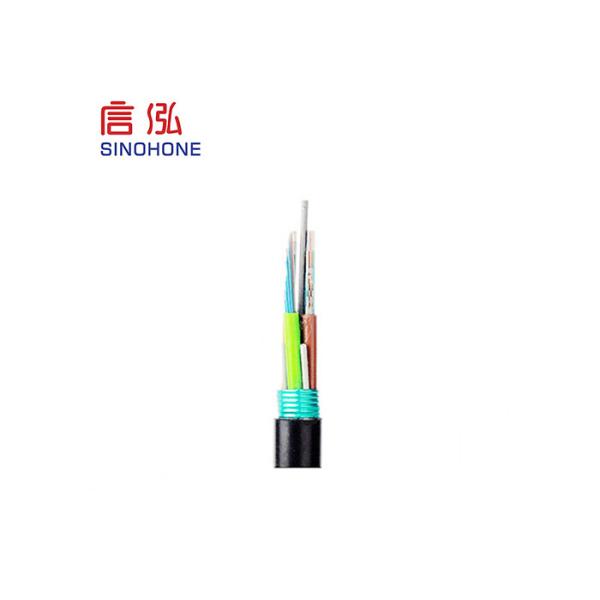

Layer Stranded Optical Outdoor Fiber Optic Cable Corrugated Steel Tape Armored
Layer Stranded Optical Outdoor Fiber Optic Cable Corrugated Steel Tape Armored
Layer Stranded Optical Outdoor Fiber Optic Cable Corrugated Steel Tape Armored
Layer Stranded Optical Outdoor Fiber Optic Cable Corrugated Steel Tape Armored
Layer Stranded Optical Outdoor Fiber Optic Cable Corrugated Steel Tape Armored
Layer Stranded Optical Outdoor Fiber Optic Cable Corrugated Steel Tape Armored
Layer Stranded Optical Outdoor Fiber Optic Cable Corrugated Steel Tape Armored
Layer Stranded Optical Outdoor Fiber Optic Cable Corrugated Steel Tape Armored
Specifications
Brand Name :
SINOHONE
Model Number :
GYDTS
Certification :
RoHS ISO9001 CPR FCC CE
Place of Origin :
Sichuan, China
MOQ :
2000 meters
Price :
USD $0.38~$0.58 / meter
Payment Terms :
L/C, D/P, T/T, D/A, Western Union, MoneyGram
Supply Ability :
500000 meters per month
Delivery Time :
5-8 work days
Packaging Details :
Standard packing in sealed box or according to customers' requirements
Product Name :
Layer Stranded Optical Fiber Cable
Port :
Shanghai, Shenzhen, Ningbo, etc.
Installation :
Duct, Aerial
Structure :
Loose Tube
Tube Material :
PBT
Amoring :
Corrugated Steel Tape Armored
Description

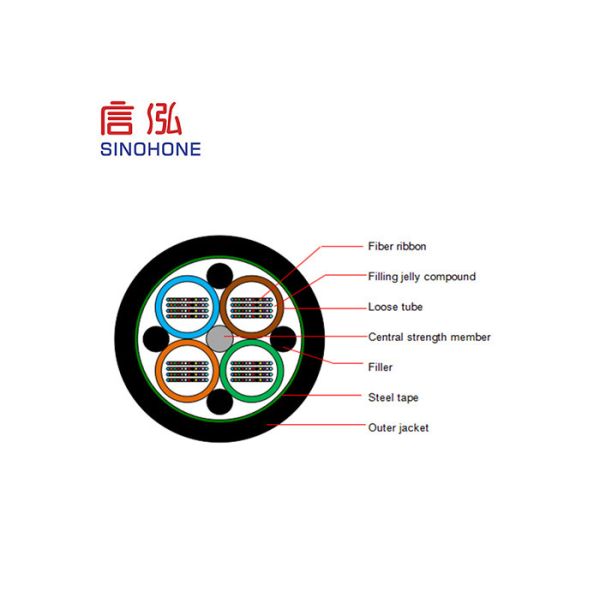

Layer Stranded Optical Ribbon Cable GYDTS Outdoor Fiber Optic Cable for Access Network


Characteristics:

  • Loose tube of PBT material has good hydrolysis resistance performance and high strength
  • Tube filling with the special imported jelly compound to protect the fibers;
  • The concentration of the fibers is high, the diameter of the optical fiber cable is smaller, so the weight is lighter.
  • Excellent moisture, water-blocking performance;
  • Good mechanical performance and environmental properties.
  • Steel tape armored, excellent resistance to lateral pressure performance.
Product NameLayer Stranded Optical fiber ribbon cable for access network
SampleLayer Stranded Optical Outdoor Fiber Optic Cable Corrugated Steel Tape Armored
Standards

YD/T901-2009
IEC60794-1

Operating temperature-40°C~+70°C
ApplicationsDuct, aerial
Metropolitan area network and access network etc.



Technical Parameters

Fiber CountStructureDiameter(mm)Weight (kg/km)Tensile(N)Crush(N)Bending Radius(mm)
Long termShort termLong termShort termStaticDynamic
36-144/12F1+416.726010002000300100010D20D
48-192/12F1+417.428510002000300100010D20D
72-288/12F1+418.433010003000300100010D20D
300-360/12F1+520.240010003000300100010D20D
300-384/12F1+420.037510003000300100010D20D
372-432/12F1+621.846010003000300100010D20D
396-432/12F1+420.839510003000300100010D20D
576/12F1+624.051510003000300100010D20D



Layer Stranded Optical Outdoor Fiber Optic Cable Corrugated Steel Tape Armored
