Specifications
Brand Name :
SINOHONE
Model Number :
GYSTCS
Certification :
ISO9001 CPR FCC CE RoHS
Place of Origin :
Sichuan, China
MOQ :
2000 meters
Price :
USD $0.38~$0.58 / meter
Payment Terms :
L/C, T/T, MoneyGram, Western Union
Supply Ability :
500000 meters per month
Delivery Time :
5-8 work days
Packaging Details :
Standard packing in sealed box or according to customers' requirements
Product Name :
GYSTCS Fiber Optic Cable
Tube :
Optical Loose Tube
Installation :
Self supporting by steel strand
Sheath :
PE
Reinforce :
Metallic central reinforce
Figure :
8
Fiber Core :
2 ~72
Description


ADSS Outdoor Fiber Optic Cable GYSTCS Self-Supporting Figure 8 Optical Fiber Cable

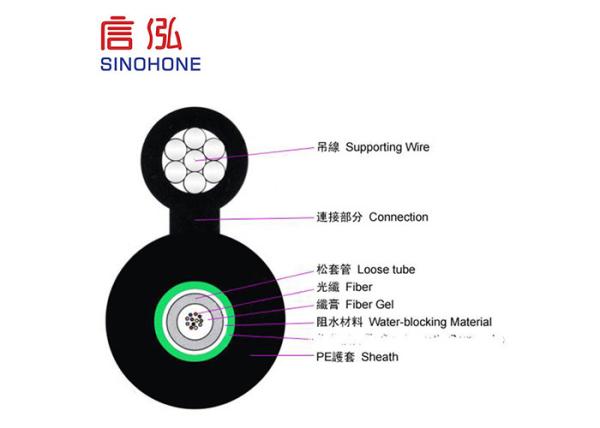

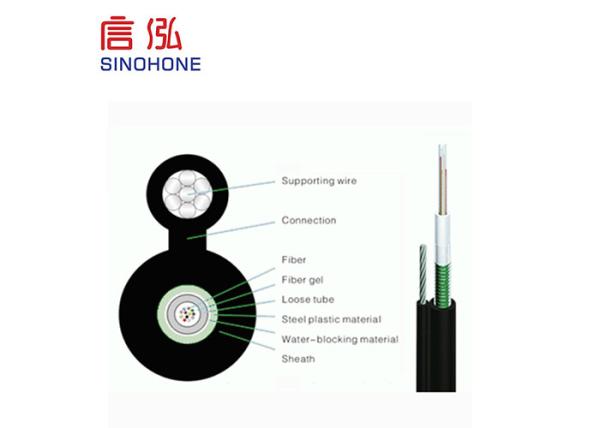

Product Description

  • Optical loose tube
  • Metallic central reinforcer
  • Fill gel into SZ stranded cores
  • Two-sided plastic-coated steel tape bonded PE sheath
  • Self supporting by steel strand


Application Range Suitable for long-distance communication and interoffice communication
Laying Method Aerial
Applicable Temperature -40C~+60C



Product Features:

  • Low optical fiber transmission loss and low dispersion.
  • Endow cables with excellent mechanical properties and environmental performance due to reasonable design and precise control over excess length of optical fibers in loose tube and cabling mode.
  • Keep structure compact, and protect the cable from stress under hostile environment by use of SZ stranded structure.
  • Fill waterproof cable gel outside the reinforcer and inside cores, ensuring its moisture proof and water proof effect.
  • Provide more excellent moisture proof effect as well as bullet proof function as the cores are wrapped longitudinally by steel tape.
  • The steel strand as the self supporting member meets the higher tensile strength.



Technical Parameters

Fiber cores

Outer diameter of optical cable (mm)

Weight of optical cable (kg/km)

Minimum bending radius (mm)

Allowable minimum tensile strength (N)

Allowable minimum crush resistance (N/100mm)

Static

Dynamic

Short-term

Long-term

Short-term

Long-term

2~36

11.8

275

120

240

8000

6000

3000

1000

38~72

13.4

311

140

280

8000

6000

3000

1000



Figure 8 Outdoor Fiber Optic Cable PE Sheath Aerial Laying Low DispersionFigure 8 Outdoor Fiber Optic Cable PE Sheath Aerial Laying Low Dispersion
