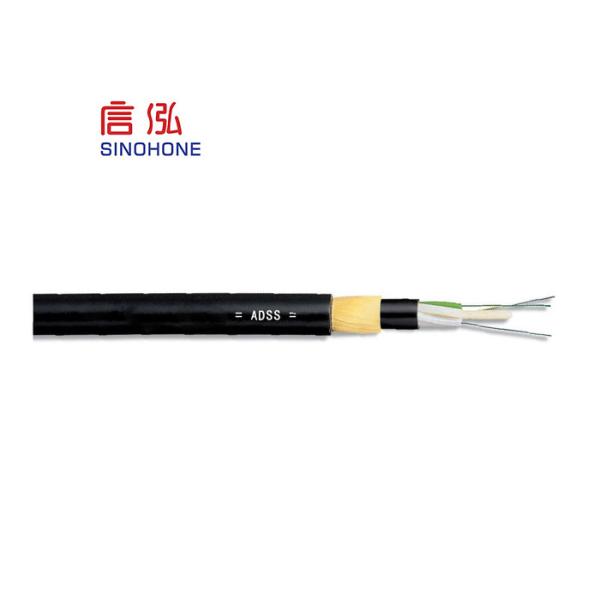

Aerial ADSS Hybrid Fiber Power Cable , Self Supporting Fiber Optic Cable
Aerial ADSS Hybrid Fiber Power Cable , Self Supporting Fiber Optic Cable
Aerial ADSS Hybrid Fiber Power Cable , Self Supporting Fiber Optic Cable
Aerial ADSS Hybrid Fiber Power Cable , Self Supporting Fiber Optic Cable
Aerial ADSS Hybrid Fiber Power Cable , Self Supporting Fiber Optic Cable
Aerial ADSS Hybrid Fiber Power Cable , Self Supporting Fiber Optic Cable
Aerial ADSS Hybrid Fiber Power Cable , Self Supporting Fiber Optic Cable
Aerial ADSS Hybrid Fiber Power Cable , Self Supporting Fiber Optic Cable
Aerial ADSS Hybrid Fiber Power Cable , Self Supporting Fiber Optic Cable
Aerial ADSS Hybrid Fiber Power Cable , Self Supporting Fiber Optic Cable
Specifications
Brand Name :
SINOHONE
Model Number :
ADSS Aerial Optical Fiber Cable
Certification :
ISO9001 CPR FCC CE RoHS
Place of Origin :
Sichuan, China
MOQ :
2000 meters
Price :
USD $0.38~$0.58 / meter
Payment Terms :
L/C, D/P, T/T, D/A, Western Union, MoneyGram
Supply Ability :
500000 meters per month
Delivery Time :
5-8 work days
Packaging Details :
Standard packing in sealed box or according to customers' requirements
Product Name :
ADSS Cable
Outer Sheath :
Anti-tracking for 35-110 kv voltage
Span :
Largest span 200 meters
Fibers :
4-72 fibers
Fiber Type :
G652D
Loose Tube Material :
PBT
Loose Tube Diameter :
2.0 mm
Zero Dispersion Wavelength :
1330 ~ 1322 nm
Description

All Dielectric Self-Supporting Aerial Optical Fiber ADSS Cable Hybrid Fiber Power Cable

Features of ADSS fiber optic cable:

  1. It can be erected without powering off;
  2. AT sheath, excellent electric tracking resistance;
  3. Light weight, small cable diameter, reducing the influence of wind and ice, on the tower and support load, large span, the largest span 200 meters;
  4. With excellent tensile properties and temperature characteristics, life expectancy is greater than 30 years.


Advantages of GL ADSS Optical Fiber Cable:

  1. Good aramid yarn have excellent tensile performance;
  2. Fast delivery,200km ADSS cable regular production time about 10 days;
  3. Can using glass yarn instead of aramid,to prevent mouse bite.

ADSS Cable Construction Parameter ADSS Optical Fiber Parameter
No. of fibers 4-72fibers Fiiber Type G652D
FRP Strength Member Diameter 2.1 mm Mode Field Diameter 8.6～9.5±0.7μm
Loose Tube Diameter 2.0 mm Cladding Diameter 125 ± 1μm
Out Sheath Diameter 1.8 mm Cladding Non-Circularity: ≤ 1%
Loose Tube Material PBT Coating Diameter 245 ± 10μm
Filling compound (Tube) Thixotropic Jelly Attenuation Coefficient ≤ 0.36dB/km at 1310nm, ≤ 0.22dB/km at 1550nm
Water Blocking Water Swell able Material Chromatic Dispersion ≤3.5ps/nm/km at 1285~1330nm, ≤18ps/nm/km at 1550nm
Outer sheath material Anti-tracking for 35-110kv voltage Zero Dispersion Wavelength 1300~1322nm
