Specifications
Brand Name :
SINOHONE
Model Number :
GYXY
Certification :
CPR FCC CE RoHS ISO9001
Place of Origin :
Sichuan, China
MOQ :
2000 meters
Price :
USD $0.38~$0.58 / meter
Payment Terms :
L/C, D/P, T/T, D/A, Western Union, MoneyGram
Supply Ability :
500000 meters per month
Delivery Time :
5-8 work days
Packaging Details :
Standard packing in sealed box or according to customers' requirements
Product Name :
GYXY Unitube Outdoor Optic Cable
Tube :
Loose tube
Fibers :
250um
Tube Materials :
High Modules plastic
Filler :
Water-blocking
Sheath material :
PE
Strength member :
Two steel wire
Description

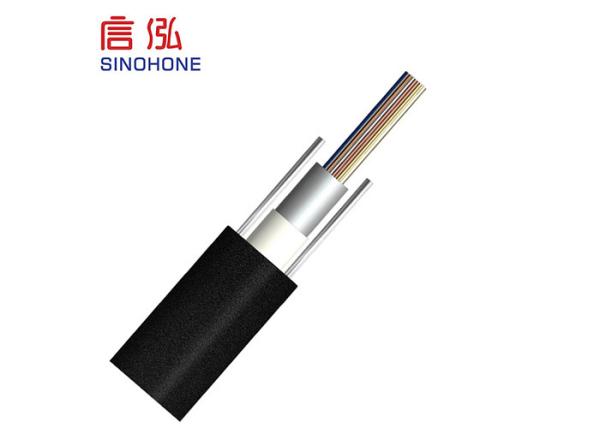

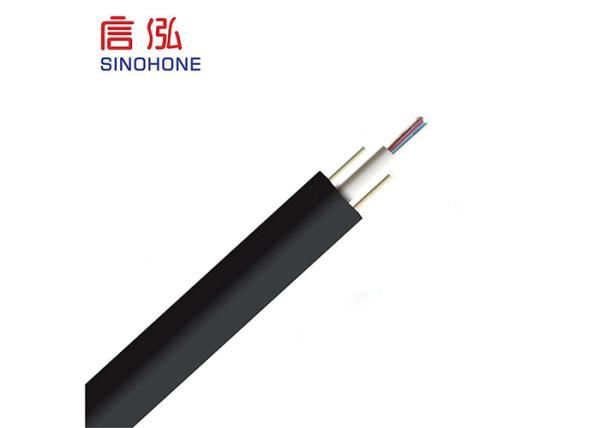

GYXY Uni-tube Outdoor Fiber Optic Cable Non-Armored Optical Fiber Cable

Description

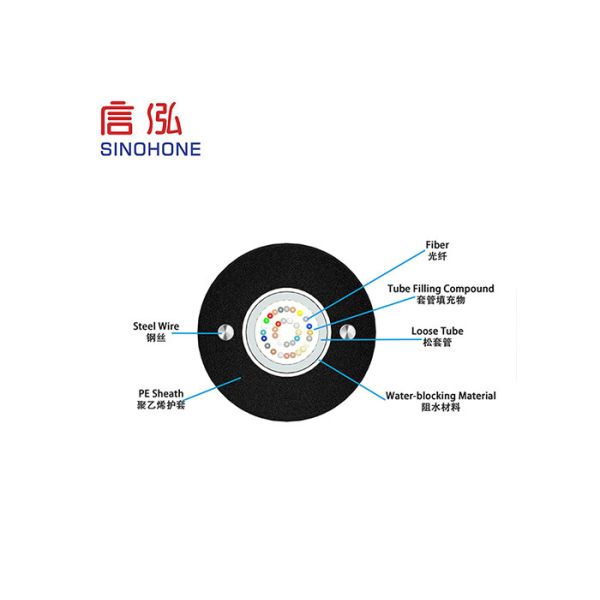

The fibers, 250m, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. Over the tube, water-blocking material is applied to keep the cable watertight. Two parallel steel wires are placed at the two sides. The cable is completed with a polyethylene (PE) sheath.

Characteristics

  1. Good mechanical and temperature performance

  2. High strength loose tube that is hydrolysis resistant

  3. Special tube filling compound ensure a critical protection of fiber

  4. Two parallel steel wires ensure tensile strength

  5. PE sheath protects cable from ultraviolet radiation

  6. Small diameter, light weight and friendly installation

  7. Long delivery length

G.652

G.655

50/125m

62.5/125m

Attenuation(+20 degree)

@850nm

≤3.0 dB/km

≤3.0 dB/km

@1300nm

≤1.0 dB/km

≤1.0 dB/km

@1310nm

≤0.36 dB/km

≤0.40 dB/km

@1550nm

≤0.22 dB/km

≤0.23dB/km

Bandwidth (Class A)

@850nm

≥500 MHzkm

≥200 MHzkm

@1300nm

≥1000 MHzkm

≥600 MHzkm

Numerical Aperture

0.200±0.015NA

0.275±0.015NA

Cable Cut-off Wavelength cc

≤1260nm

≤1480nm

Uni Tube Armored Fiber Optic Cable Non Armored Water Blocking Friendly InstallationUni Tube Armored Fiber Optic Cable Non Armored Water Blocking Friendly Installation
