Network Armored Fiber Optic Cable 2~24 Fiber Count Access Steel Tape
Network Armored Fiber Optic Cable 2~24 Fiber Count Access Steel Tape
Network Armored Fiber Optic Cable 2~24 Fiber Count Access Steel Tape
Network Armored Fiber Optic Cable 2~24 Fiber Count Access Steel Tape
Network Armored Fiber Optic Cable 2~24 Fiber Count Access Steel Tape
Network Armored Fiber Optic Cable 2~24 Fiber Count Access Steel Tape
Specifications
Brand Name :
SINOHONE
Model Number :
GYFXTS
Certification :
ISO9001/CE/RoHS
Place of Origin :
Sichuan, China
MOQ :
2000 meters
Price :
USD $0.38~$0.58 / meter
Payment Terms :
L/C, T/T, MoneyGram, Western Union
Supply Ability :
500000 meters per month
Delivery Time :
5-8 work days
Packaging Details :
Standard packing in sealed box or according to customers' requirements
Product Na,e :
Access Fiber Optic Cable
Structure :
Loose Tube
Installation :
Duct, Aerial
Application :
Access network, FTTH
Operating Temperature :
-40°C~+70°C
Fiber count :
2-24 cores
Sheath :
PE Double
Length :
Custom specified
Armoured :
steel tape
Description

GYFXTS Armored Central Tube Access Fiber Optic Cable 2~24 Fiber Count Access Network

Characteristics:

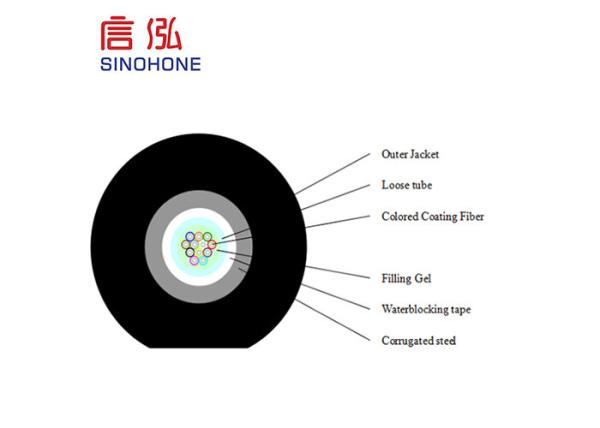

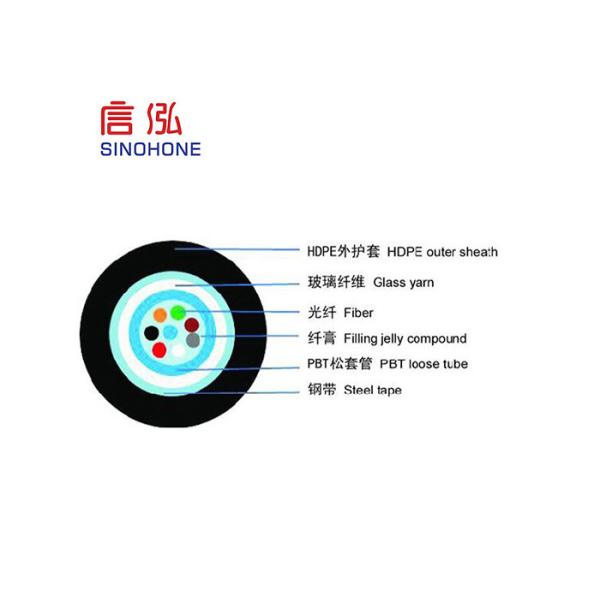

Structure with central tube and glass yarn reinforced, corrugated steel tape armor;
Small diameter, lighter, easy installation.
Loose tube material has good hydrolysis resistance performance and high strength;
Excellent moisture, water-blocking performance;
Glass yarn strength member improve the mechanical properties, and can also prevent ant bites.
Good mechanical performance and environmental properties.

Applications:


Duct, aerial
Access network, FTTH

Standards:


YD/T901-2009
IEC60794-1

Temperature:


Operating temperature: -40°C~+70°C

Technical Parameters

Fiber Count

Diameter(mm)

Weight (kg/km)

Tensile(N)

Crush(N)

Bending Radius(mm)

Long term

Short term

Long term

Short term

Static

Dynamic

2~12

8.3

75

600

1500

300

800

10D

20D

24

8.5

78

600

1500

300

800

10D

20D

Note:

  • D refers to the cable diameter;
  • The relevant technical Parameters can be adjusted according to the customer’s demands;
  • The block water way can be adjusted according to the customer’ demands;
  • To design flame resistance, anti-rodent, termite resistant cable according to customer’s demands

Network Armored Fiber Optic Cable 2~24 Fiber Count Access Steel TapeNetwork Armored Fiber Optic Cable 2~24 Fiber Count Access Steel Tape
