Specifications
Brand Name :
SINOHONE
Model Number :
FTTH Bow-type Drop Cable
Certification :
RoHS ISO9001 CPR FCC CE
Place of Origin :
Sichuan, China
MOQ :
2000 meters
Price :
USD $0.38~$0.58 / meter
Payment Terms :
L/C, D/P, T/T, D/A, Western Union, MoneyGram
Supply Ability :
500000 meters per month
Delivery Time :
5-8 work days
Packaging Details :
Standard packing in sealed box or according to customers' requirements
Product Name :
FTTH Bow-type Drop Cable
Operating Temperature :
-40°C~+60°C
Storage, transportation, installation Temperature :
-5°C~+50°C
Applications :
Access Network, FTTH
Structure :
Optical Communication Unit, Strength Member And Outer Sheath
Strength Member :
2 Parallel Members
Sheath Material :
Low smoke zero halogen
Description

FTTH Bow-type drop cable Indoor Fiber Optic Cable Distribution Fiber Optic Cable

Characteristics:

Special low sensitivity of bending fiber provides higher bandwidth and realizes the integration of internet network, CATV network and telephone network;
Two parallel strength members protect fibers and ensure excellent performance of crush and tensile strength
Simple structure, lighter and good practicability
Unique gouge design, strip and simplify installation and maintenance;
Low smoke zero halogen sheath environment friendly.


Description of products:

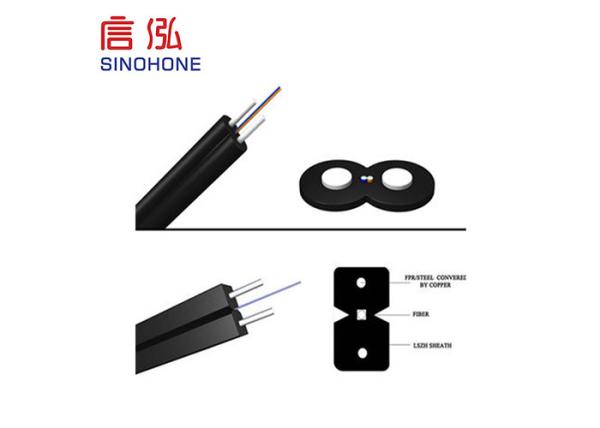

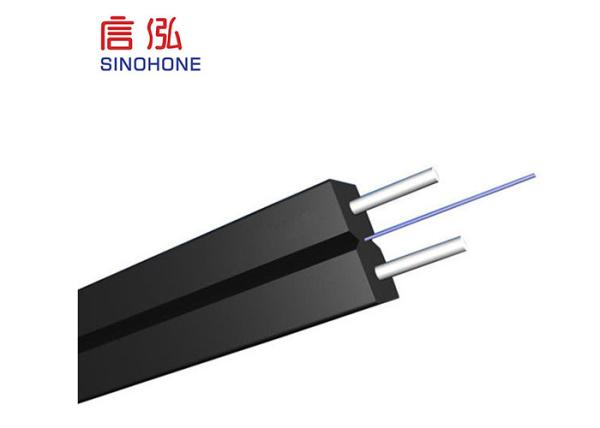

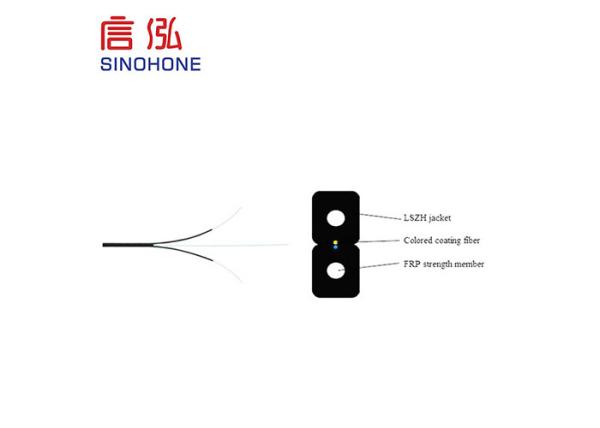

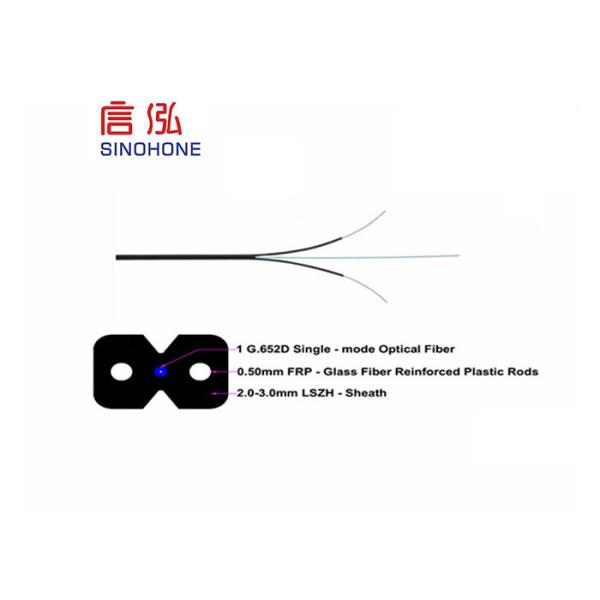

FTTH indoor cable consists of optical communication unit, strength member and outer sheath.
Optical communication unit includes fibers or tight buffer fibers, etc.
Metallic or non-metallic strength member will be used according to the demands of the customers.

Applications: Access network, Fiber to the Home(FTTH)

Standards: YD/T1997

Temperature:

Operating temperature: -40°C~+60°C
Storage, transportation and installation temperature: -5°C~+50°C

Technical Parameters

Fiber Count Dimension(mm) Weight (kg/km) *FRP/# Permitted Tensile(N) Permitted Crush(N) Bending Radius(mm)
Long term Short term Long term Short term Static Dynamic
Single or double fibers (2.0±0.1)*(3.0±0.1) *8.5 40 80 500 1000 15 30
#10.0 100 200 1000 2200
Three or four fibers (2.0±0.1)*(3.1±0.1) *9.5 40 80 500 1000 15 30
#11.0 100 200 1000 2200
Single fiber tight buffer (2.0±0.2)*(3.8±0.2) *11.0 40 80 500 1000 15 30
#14.0 100 200 1000 2200
