Specifications
Brand Name :
SINOHONE
Model Number :
GYTA53
Certification :
CPR FCC CE RoHS ISO9001
Place of Origin :
Sichuan, China
MOQ :
2000 meters
Price :
USD $0.38~$0.58 / meter
Payment Terms :
L/C, D/P, T/T, D/A, Western Union, MoneyGram
Supply Ability :
500000 meters per month
Delivery Time :
5-8 work days
Packaging Details :
Standard packing in sealed box or according to customers' requirements
Product Name :
Outdoor Layer Stranded Optical Cables for Telecommunications
Stranding :
Loose Tube Stranding
Strength Member :
Metal
Aromor :
Corrugated Steel Armoring
Installation :
Direct Buried
Length :
2km or customized length
Oem :
Available
Application :
Telecommunication, Network
Description

Direct Buried Installation Steel Tape Armored Fiber Optic Cable Layer Stranded

Quick Description:

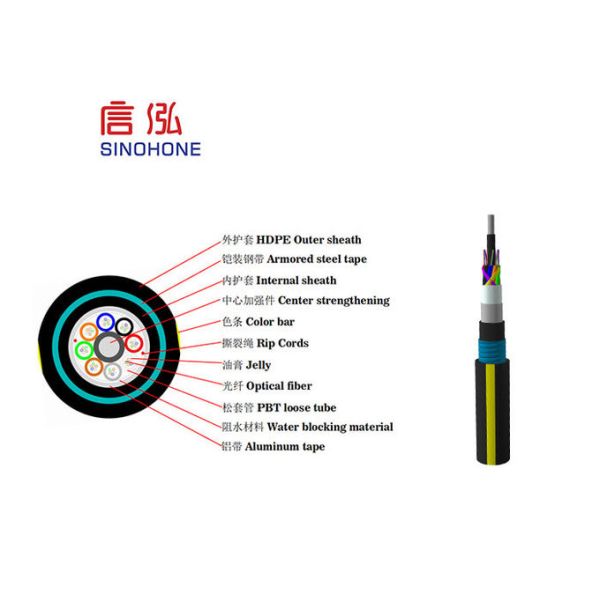

Sinohone GYTA53 fiber optic cable has structure with aluminium tape against moisture, corrugated steel tape as armor, PBT loose tupe stranding and double sheaths. The loose tube material has good hydrolysis resistance performance and high stength. It also has compact structure and excellent water blocking performance, strict manufacturing processes, good mechanical performance and environmental properties.

Features:

  • Loose tube stranding
  • Metal strength member
  • Flooding jelly compound
  • Aluminum-polyethylene adhesive sheath
  • Steel-polyethylene adhesive outer sheath

Applications:

  1. Buried, cable trench, etc.
  2. Relay communication system
  3. Core network, metropolitan area network and access network etc.

Standards:


YD/T901-2009
IEC60794-1

Temperature:


Operating temperature: -40°C~+70°C

Technical Parameters:

Fiber Count Structure Diameter(mm) Weight (kg/km) Tensile(N) Crush(N) Bending Radius(mm)
Long term Short term Long term Short term Static Dynamic
4-36 1+6 12.8 89 1000 3000 1000 3000 12.5D 25D
38-72 1+6 13.6 104 1000 3000 1000 3000 12.5D 25D
74-84 1+7 14.7 99 1000 3000 1000 3000 12.5D 25D
86-96 1+8 15.4 148 1000 3000 1000 3000 12.5D 25D
98-108 1+9 16 162 1000 3000 1000 3000 12.5D 25D
110-120 1+10 16.6 174 1000 3000 1000 3000 12.5D 25D
122-132 1+11 17.2 187 1000 3000 1000 3000 12.5D 25D
134-144 1+12 17.9 204 1000 3000 1000 3000 12.5D 25D
146-216 1+6+12 18 212 1000 3000 1000 3000 12.5D 25D
218-288 1+9+15 20.5 254 1000 3000 1000 3000 12.5D 25D

Direct Buried Loose Tube Fiber Cable Customized Length Stretch ProofDirect Buried Loose Tube Fiber Cable Customized Length Stretch Proof
