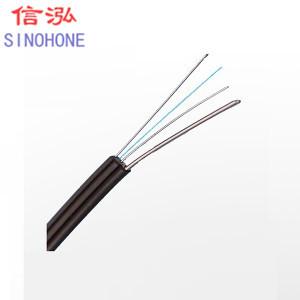

Black / White Indoor Fiber Optic Cable , Dual Core Fiber Optic Cable Low Smoke
Black / White Indoor Fiber Optic Cable , Dual Core Fiber Optic Cable Low Smoke
Black / White Indoor Fiber Optic Cable , Dual Core Fiber Optic Cable Low Smoke
Black / White Indoor Fiber Optic Cable , Dual Core Fiber Optic Cable Low Smoke
Black / White Indoor Fiber Optic Cable , Dual Core Fiber Optic Cable Low Smoke
Black / White Indoor Fiber Optic Cable , Dual Core Fiber Optic Cable Low Smoke
Specifications
Brand Name :
SINOHONE
Model Number :
Indoor FTTH Cable
Certification :
ISO, CE, UL, ROHS
Place of Origin :
Sichuan, China
MOQ :
2000 METER
Price :
USD0.35~3.6/METERS
Payment Terms :
L/C, D/A, D/P, T/T, Western Union
Supply Ability :
500 Kilometer/Kilometers per Day Ftth Drop Cable
Delivery Time :
5 Days
Packaging Details :
2km per wooden reel
Product name :
Wholesale Indoor Fiber Optic Cable
Fiber Options :
ITU G652D, G657A, OM1, OM2, OM3, OM4
Factory :
Yes
Color :
Black / White
Working Temperature :
-40°C~+85°C
Application :
FTTH FTTB FTTX Network
Description

Ftth Drop Cable Wholesale Indoor Fiber Optic Cable Meter Price

Quick Details:

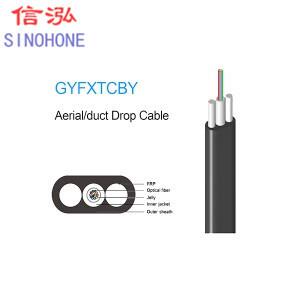

Bow-type cable is a new type of user access optical cable, also known as optical drop cable. Accroding to the application environment and laying conditions, the cable structure and various technical parameters are reasonably designed.

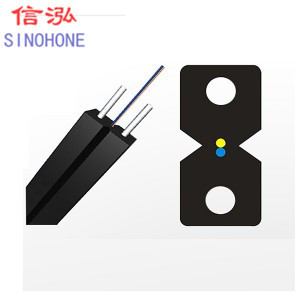

FTTH indoor cable consists of optical communication unit, strength member and outer sheath. Its optical communication unit includes fiber or tight buffer fibers, etc. Metallic or non-metallic strength member will be used according to the demands of the customers.

Characteristics:


Special low sensitivity of bending fiber provides higher bandwidth and realizes the integration of internet network, CATV network and telephone network;
Two parallel strength members protect fibers and ensure excellent performance of crush and tensile strength.
Simple structure, lighter and good practicability
Unique gouge design, strip and simplify installation and maintenance;
Low smoke zero halogen sheath environment friendly.

Applications:

  • Access network
  • Fiber to the Home(FTTH)

Standards:


YD/T1997

Temperature:

  • Operating temperature: -40°C~+60°C
  • Storage, transportation and installation temperature: -5°C~+50°C

Technical Parameters

Fiber Count Dimension(mm) Weight (kg/km) *FRP/# Permitted Tensile(N) Permitted Crush(N) Bending Radius(mm)
Long term Short term Long term Short term Static Dynamic
Single or double fibers (2.0±0.2)*(5.0±0.2) *18.0 40 80 500 1000 15 30
#19.5 100 200 1000 2200
Three or four fibers (2.0±0.2)*(5.1±0.2) *19.0 40 80 500 1000 15 30
#21.0 100 200 1000 2200
Single fiber tight buffer (2.0±0.2)*(5.6±0.2) *23.0 40 80 500 1000 15 30
#26.0 100 200 1000 2200

Note:

  1. The structure dimension, mechanical performance and material can be designed according to the demands of the customers.
  2. The weight of non-metallic cable #:the weight of the metallic cable.

Black / White Indoor Fiber Optic Cable , Dual Core Fiber Optic Cable Low SmokeBlack / White Indoor Fiber Optic Cable , Dual Core Fiber Optic Cable Low Smoke
