Specifications
Brand Name :
SINOHONE
Model Number :
Composite Cable
Certification :
CE/ROHS/ISO9001/SGS
Place of Origin :
Sichuan, China
MOQ :
1000 METER
Price :
USD0.35~3.6/METERS
Payment Terms :
L/C, D/A, D/P, T/T, Western Union
Supply Ability :
500 Kilometer/Kilometers per Day Ftth Drop Cable
Delivery Time :
5 Days
Packaging Details :
2km per wooden reel
Product name :
1 2 4 core Indoor Use Ftth Fiber Optical Cable
Working Temperature :
-40°C~+85°C
Type :
Single mode
Factory :
Yes
Application :
Jumper cable for connection
Description

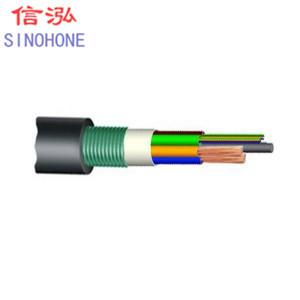

1 2 4 core Single Mode Hybrid Fiber Optical Cable For Power China Supplier

Description:

Sinohone hybrid cable or composite cable is a combination of 2 or more cables of the same or different types in a bundle with an overall jacket.

Characteristics:


Small outer diameter, tight structure and lightweight.
Aramid yarn ensures excellent performance of tensile;
Soft and flexible, good bending performance;
Convenient to construction and maintenance.

Applications:


Used as jumper cable for equipment connection.

Standards:


YD/T 2159-2010

Temperature:


Storage, transportation and Operating temperature: -20°C~+60°C
Installation temperature: -5°C~+50°C

Structural Parameters

Fiber Count Conductor Structure Tight buffer diameter(mm) Nominal diameter (mm) Nominal weight (kg/km) Permitted Tensile(N) Permitted Crush(N) Bending Radius(mm)
Long term Short term Long term Short term Static Dynamic
4F+5C 0.12mm*7 0.6 4.3 17 100 200 200 400 10D 20D
4F+5C 0.12mm*7 0.9 5.3 21 100 200 200 400 10D 20D

Note:

  • The structural dimensions and materials used can be designed according to the demands of the customers.
  • Outer sheath material can be LSZH or environmental PVC according to the demands of the customers.
