Black / White Armored Fiber Optic Patch Cable Water Proof Hydrolysis Resistant
Black / White Armored Fiber Optic Patch Cable Water Proof Hydrolysis Resistant
Black / White Armored Fiber Optic Patch Cable Water Proof Hydrolysis Resistant
Black / White Armored Fiber Optic Patch Cable Water Proof Hydrolysis Resistant
Black / White Armored Fiber Optic Patch Cable Water Proof Hydrolysis Resistant
Black / White Armored Fiber Optic Patch Cable Water Proof Hydrolysis Resistant
Black / White Armored Fiber Optic Patch Cable Water Proof Hydrolysis Resistant
Black / White Armored Fiber Optic Patch Cable Water Proof Hydrolysis Resistant
Specifications
Brand Name :
SINOHONE
Model Number :
Ftth Drop Cable
Certification :
CE/ROHS/ISO9001/SGS
Place of Origin :
Sichuan,China
MOQ :
1METER
Price :
USD0.35~3.6/METERS
Payment Terms :
L/C, D/A, D/P, T/T, Western Union
Supply Ability :
500 Kilometer/Kilometers per Day Ftth Drop Cable
Delivery Time :
5 Days
Packaging Details :
2km per wooden reel
Product name :
Water-proof cable Patch Cord Indoor fiber optic cables Ftth Drop Cable
Working Temperature :
-40°C~+85°C
Color :
Black/White
Factory :
Yes
Application :
FTTH FTTB FTTX Network
Description

Water-proof cable (GYBJA)

Sinohone water-proof cable is applied to connect backbone and equipment, suitable for field environment. With high-quality and anti-corrision components, it can resist all kind of severe environment and has long service life.

Its perfectly suitable for fiber to the home.

Characteristics:


Excellent lateral waterproof performance and excellent tensile strength;
Each Sub-cable unit can be separately terminated

Operating temperature: -20°C~+70°C

Standards:


YD/T1258.4

Transmission Performance

Item 62.5μm(OM1) 50μm(OM2) 50μm(OM3) SM
850nm/1300nm 850nm/1300nm 850nm/1300nm 1310nm/1550nm
Attenuation Of Maximum Value(dB/km) 3.5/1. 5 3.5/1. 5 3.5/1. 5 0. 4/0. 3
Attenuation Of Typical Value(dB/km) 3.5/1. 5 3.0/1. 0 3.0/1. 0 0. 38/0. 25

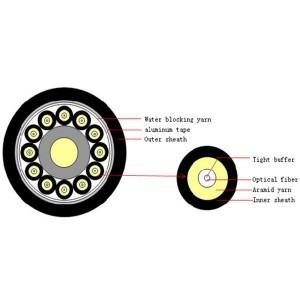

Structural Parameters

Fiber Count Structure Nominal diameter (mm) Nominal weight (kg/km) Permitted Tensile(N) Permitted Crush(N) Bending Radius(mm)
Long term Short term Long term Short term Static Dynamic
4 1+4-2.0 9.5 69 400 800 300 1000 10D 20D
6 1+6-2.0 10.5 101 500 1100 300 1000 10D 20D
8 1+8-2.0 11.2 106 1000 2000 300 1000 10D 20D
4 1+4-3.0 11.2 97 600 1300 300 1000 10D 20D
6 1+6-3.0 13 127 1000 2000 300 1000 10D 20D
8 1+8-3.0 14.8 172 1100 2200 300 1000 10D 20D

Note:

  • The structural dimensions and materials used can be designed according to the demands of the customers.
  • Outer sheath material is PE in general, we can choose anti-rodent and flame resistance material for customers.
